ANALOG DEVICES AD7476BRTZ-R2 Analogue to Digital Converter, 12 bit, 1 MSPS, Single Ended, SPI, Single, 2.35 V

AD7476BRTZ-R2 is a 12bit, high speed, low power, successive approximation ADC. The part operates from a single 2.35V to 5.25V power supply. Each part contains a low noise, wide bandwidth track-and-hold amplifier that can handle input frequencies in excess of 6MHz. It uses advanced design techniques to achieve very low power dissipation at high throughput rates. The reference for the part is taken internally from VDD. This allows the widest dynamic input range to the ADC. Thus, the analogue input range for the parts are 0V to VDD. The conversion rate is determined by the SCLK. It is used in applications such as battery-powered systems, personal digital assistants, medical instruments, mobile communications, instrumentation and control systems, data acquisition systems, high speed modems, optical sensors.

• Flexible power/serial clock speed management, no pipeline delays
• High speed serial interface SPI®-/QSPI�-/MICROWIRE�-/DSP-compatible
• Signal-to-noise ratio is 71dB typical at (VDD = 2.4V to 5.25V)
• Aperture jitter is 30ps typical at (VDD = 2.35V to 5.25V)
• Full power bandwidth is 6.5MHz typical at (VDD = 2.35V to 5.25V)
• Integral nonlinearity is ±1.5LSB maximum at (VDD = 2.35V to 5.25V)
• Conversion time is 1.33?s maximum at (16 SCLK cycles, VDD = 2.35V to 5.25V)
• Throughput rate is 600kSPS maximum at (VDD = 2.35V to 5.25V)
• Track-and-hold acquisition time is 500ns maximum at (VDD = 2.35V to 5.25V)

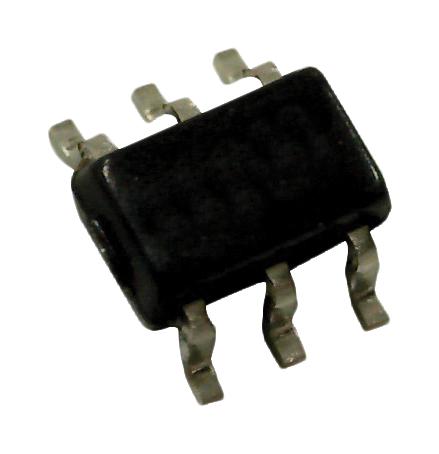

• Operating temperature range from -40°C to +85°C, 6-lead SOT-23 package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
