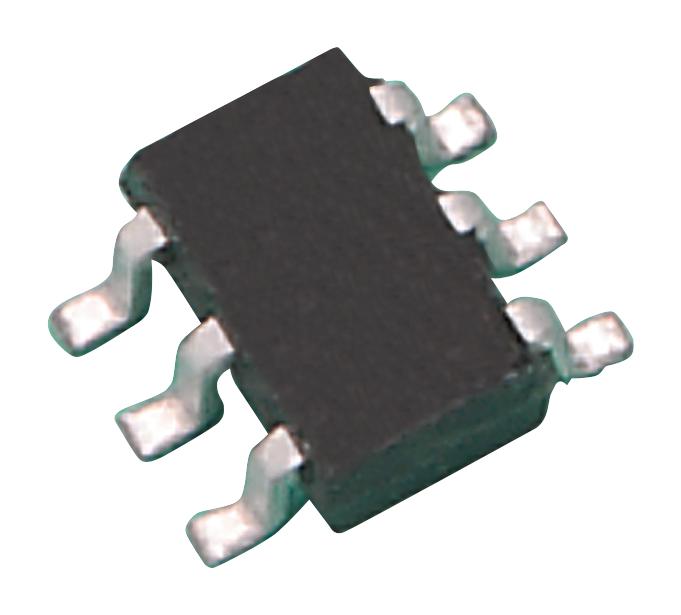

ANALOG DEVICES AD7278AUJZ-500RL7 Analogue to Digital Converter, 8 bit, 3 MSPS, Single Ended, SPI, Single, 2.35 V

AD7278AUJZ-500RL7 is a high speed, low power, successive approximation analogue-to-digital converter (ADC). The part operates from a single 2.35V to 3.6V power supply and feature throughput rates of upto 3MSPS. The part contains a low noise, wide bandwidth track and-hold amplifier that can handle input frequencies in excess of 55MHz. The conversion process and data acquisition are controlled using CS and the serial clock, allowing the device to interface with microprocessors or DSPs. The input signal is sampled on the falling edge of CS, and the conversion is initiated at this point. There are no pipeline delays associated with the part.

• Flexible power/serial clock speed management
• No pipeline delays, high speed serial interface
• SPI-/QSPI�-/MICROWIRE�-/DSP compatible, specified for VDD of 2.35V to 3.6V
• Total harmonic distortion (THD) is -66dB maximum at (VDD = 2.35V to 3.6V)
• Resolution 8bits, integral nonlinearity ±0.2LSB maximum
• Gain error is ±1.2LSB maximum, total unadjusted error is ±1.5LSB maximum
• Throughput rate is 4MSPS maximum at (SCLK at 48MHz), conversion time is 208ns maximum
• Full power bandwidth is 74MHz typ at (3dB, VDD = 2.35V to 3.6V)
• Aperture delay is 5ns typical at (VDD = 2.35V to 3.6V), linearity error is ±0.3LSB maximum
• Operating temperature range from -40°C to +125°C, 6-lead TSOT package
