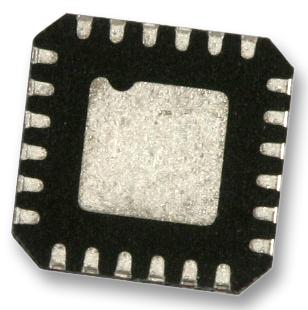

ANALOG DEVICES AD7091R-8BCPZ-RL7 Analogue to Digital Converter, 12 bit, 1 MSPS, Single Ended, 4 Wire, Microwire, QSPI, Serial, SPI

AD7091R-8 is a multichannel 12bit, ultralow power, successive approximation analogue-to-digital converter (ADC). It operates from a single 2.7V to 5.25V power supply and are capable of achieving a sampling rate of 1MSPS. It offers upto eight single-ended analogue input channels with a channel sequencer that allows a pre-programmed selection of channels to be converted sequentially. It also features an on-chip conversion clock, an on-chip accurate 2.5 V reference, and a high speed serial interface. It has a serial port interface (SPI) that allows data to be read after the conversion while achieving a 1MSPS throughput rate. The conversion process and data acquisition are controlled using the CONVST pin. It is used in applications such as battery-powered systems, personal digital assistants, medical instruments, mobile communications, instrumentation and control systems, data acquisition systems, optical sensors, diagnostic/monitoring functions.

• Ultralow system power, flexible power/throughput rate management
• Programmable ALERT interrupt pin (4-/8-channel models)
• 1MSPS throughput with no latency/pipeline delay
• Signal-to-noise ratio is 70dB typical at (VDD = 2.7V to 5.25V)
• Total harmonic distortion is -80dB typical at (VDD = 2.7V to 5.25V)
• Integral nonlinearity is ±0.7LSB typical at (VDD = 2.7V to 5.25V)
• On-chip accurate 2.5V reference, 5ppm/°C typical drift at (VDD = 2.7V to 5.25V)
• MUXOUT/ADCIN to allow single buffer amplifier, daisy-chain mode
• Power-down mode is 1.4µW typical at (VDD = VDRIVE = 3V, VDD = 2.7V to 5.25V)
• Operating temperature is -40°C to +125°C, package style is 24-lead LFCSP_WQ

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
