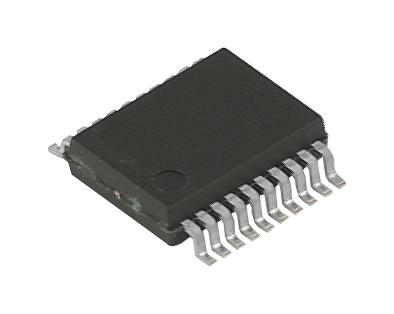

ANALOG DEVICES AD5675ARUZ Digital to Analogue Converter, nanoDAC+, 16 bit, I2C, 2.7V to 5.5V, TSSOP, 20 Pins

AD5675ARUZ is a low-power, octal, 16bit buffered voltage output digital-to-analogue converter (DAC). This device includes a gain select pin, giving a full-scale output of VREF (gain = 1) or 2 × VREF (gain = 2). This device operates from a single 2.7V to 5.5V supply and is guaranteed monotonic by design. The power-on reset circuit and an RSTSEL pin ensure that the output DACs power up to zero scale or midscale and remain there until a valid write takes place. It contains a power-down mode, reducing the current consumption to 1µA typical while in power-down mode. It uses a versatile 2-wire serial interface that operates at clock rates up to 400KHz and includes a VLOGIC pin intended for 1.62V to 5.5V logic. It is used in applications such as optical transceivers, base station power amplifiers, process control (PLC input/output cards), industrial automation, and data acquisition systems.

• ±8LSB INL accuracy
• Differential nonlinearity is ±0.7LSB typical at (gain = 1, VDD = 2.7V to 5.5V)
• TUE is ±0.03% of FSR typical at (gain = 1, VDD = 2.7V to 5.5V), 1.8V logic compatibility
• Gain error is +0.04% of FSR typ at (gain = 1, VDD = 2.7V to 5.5V), I²C-compatible serial interface
• DC power supply rejection ratio is 0.25mV/V typical at (DAC code = midscale, VDD = 5V ±10%)
• Load regulation is 183µV/mA typical at (VDD = 5V ±10%, DAC code = midscale, -30mA ? IOUT ? +30mA)
• VLOGIC supply current is 3µA maximum at (power-on, -40°C to +125°C)
• Slew rate is 0.8V/µs typical at (VDD = 2.7V to 5.5V, RL = 2Kohm to GND)
• Digital-to-analogue glitch impulse is 1.4nV-sec typ at (1LSB change around major carry (gain = 1))
• Operating temperature range from -40°C to +125°C, 20-lead TSSOP package
