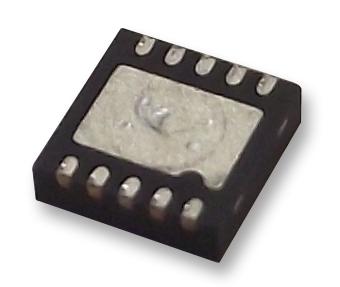

ANALOG DEVICES AD5623RACPZ-5REEL7 Digital to Analogue Converter, 12 bit, 3 Wire, DSP, Microwire, QSPI, Serial, SPI, 2.7V to 5.5V

AD5623RACPZ-5REEL7 is a dual 12bit nanoDAC with an on-chip reference. The part incorporates a power-on reset circuit that ensures the DAC output powers upto 0V and remains there until a valid write takes place. The part contains a power-down feature that reduces the current consumption of the device to 480nA at 5V and provides software-selectable output loads while in power-down mode. The low power consumption of this part in normal operation makes it ideally suited to portable, battery-operated equipment. It uses a versatile, 3-wire serial interface that operates at clock rates upto 50MHz, and it is compatible with standard SPI®, QSPI�, MICROWIRE�, and DSP interface standards. On-chip precision output amplifier enables rail-to-rail output swing to be achieved. It is used in applications such as process control, data acquisition systems, portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, and programmable attenuators.

• User-selectable external or internal reference, external reference default
• 2.7V to 5.5V power supply, guaranteed monotonic by design
• Per channel power-down, serial interface upto 50MHz
• Hardware active-low LDAC and active-low CLR functions
• Relative accuracy is ±1LSB typical at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Differential nonlinearity is ±1LSB maximum at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Gain temperature coefficient is ±2.5ppm typical at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Slew rate is 1.8V/µs typical at (VDD = 2.7V to 5.5V; RL = 2Kohm to GND)
• Digital-to-analogue glitch impulse is 10nV-sec typical at (VDD = 2.7V to 5.5V; RL = 2Kohm to GND)
• Operating temperature range from -40°C to +105°C, 10-lead LFCSP-WD package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
