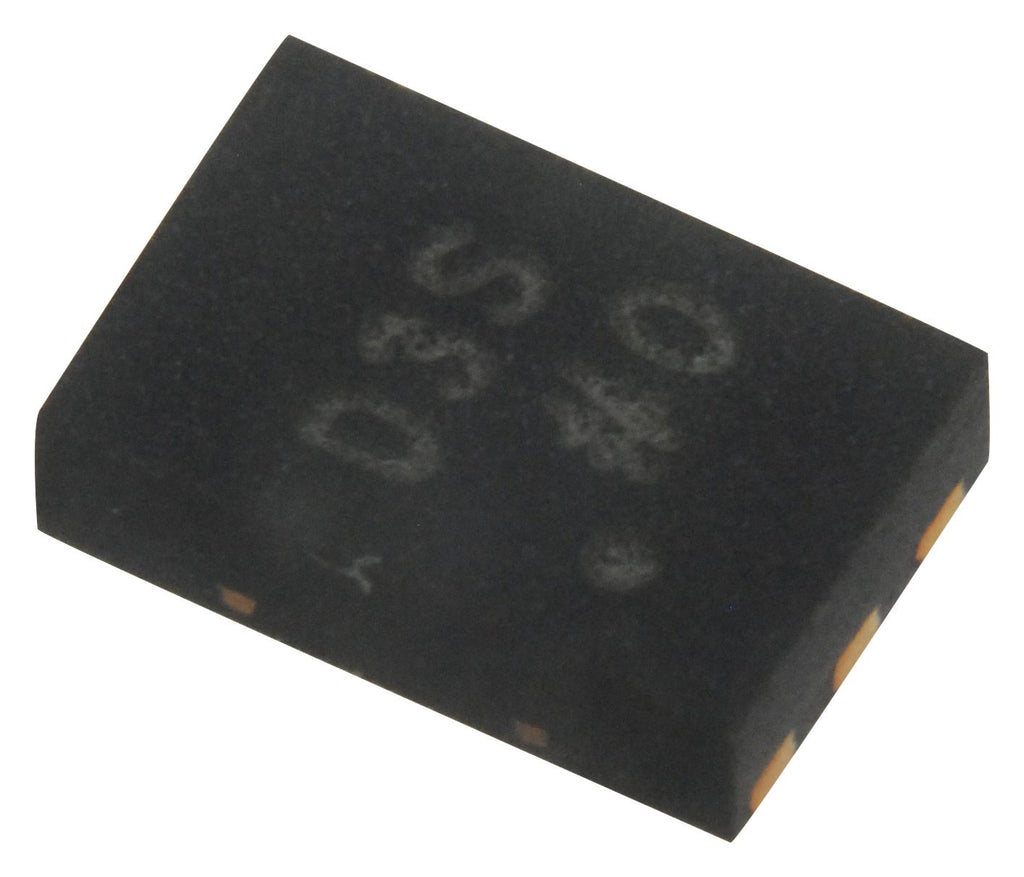

ANALOG DEVICES AD5621ACPZ-RL7 Digital to Analogue Converter, 12 bit, 1.7 MSPS, 3 Wire, Serial, 2.7V to 5.5V, LFCSP, 6 Pins

AD5621ACPZ-RL7 is a 12bit, buffered voltage output DAC that operates from a single 2.7V to 5.5V supply, consuming typically 75µA at 5V. Their on-chip precision output amplifier allows rail-to-rail output swing to be achieved. It utilizes a versatile 3-wire serial interface that operates at clock rates up to 30MHz and is compatible with SPI, QSPI�, MICROWIRE�, and DSP interface standards. The reference for the device is derived from the power supply inputs and, therefore, gives the widest dynamic output range. The parts incorporate a power-on reset circuit, which ensures that the DAC output powers up to 0V and remains there until a valid write to the device takes place. Applications include voltage level setting, portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, and programmable attenuators.

• 2.7V to 5.5V power supply, guaranteed monotonic by design
• 3 power-down functions, low power serial interface with schmitt-triggered inputs
• On-chip output buffer amplifier, rail-to-rail operation, active-low SYNC interrupt facility
• Relative accuracy is ±6LSB maximum at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Differential nonlinearity is ±0.5LSB maximum at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Slew rate is 0.5V/µs typical at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Output noise spectral density is 120nV/?Hz typical at (DAC code = midscale, 1KHz)
• Digital-to-analogue glitch impulse is 5nV-s typical at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Gain error is ±0.0004%FSR typical at (VDD = 4.5V to 5.5V; RL = 2Kohm to GND)
• Operating temperature range from -40°C to +125°C, 6-lead LFCSP package
