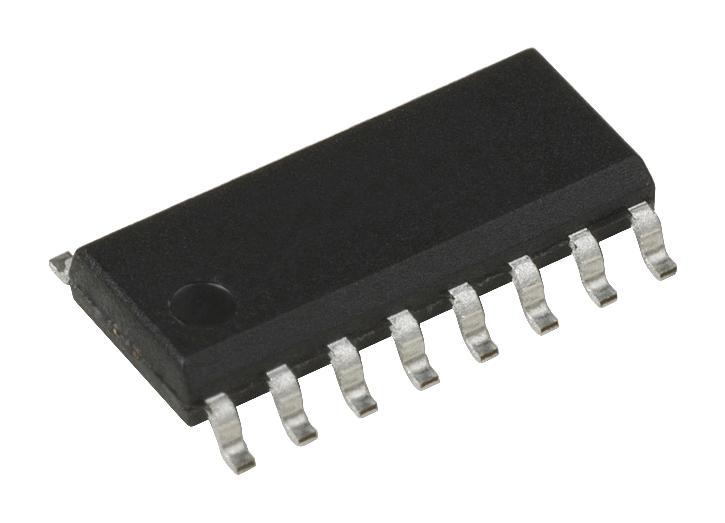

ANALOG DEVICES AD5338RBRUZ Digital to Analogue Converter, Dual, 10 bit, I2C, 2.7V to 5.5V, TSSOP, 16 Pins

AD5338RBRUZ is a low-power, dual, 10bit buffered voltage output, nanoDAC® digital-to-analogue converter (DAC). It incorporates a power-on reset circuit and an RSTSEL pin that ensures that the DAC outputs power upto zero scale or midscale and remains there until a valid write takes place. It contains a per-channel power-down feature that reduces the current consumption of the device to 4µA at 3V while in power-down mode. It uses a versatile 2-wire serial interface that operates at clock rates upto 400KHz and includes a VLOGIC pin intended for 1.8V/3V/5V logic. It is used in applications such as optical transceivers, base station power amplifiers, process controls (programmable logic controller [PLC] I/O cards), industrial automation, and data acquisition systems.

• Relative accuracy is ±0.12LSB typ at (VDD = 2.7V to 5.5V; 1.62V ? VLOGIC ? 5.5V)
• Differential nonlinearity is ±0.5LSB max at (VDD = 2.7V to 5.5V; 1.62V ? VLOGIC ? 5.5V)
• Total unadjusted error ±0.01% of FSR typ at (external reference; gain = 2, VDD = 2.7V to 5.5V)
• Reference temperature coefficient is 2ppm/°C typ at (VDD = 2.7V to 5.5V; 1.62V ? VLOGIC ? 5.5V)
• Output voltage noise is 12µV p-p typ at (0.1Hz to 10Hz, VDD = 2.7V to 5.5V; 1.62V ? VLOGIC ? 5.5V)
• Power supply range from 2.7V to 5.5V, 400KHz I²C-compatible serial interface
• Reset to zero scale or midscale (RSTSEL pin), 1.8V logic compatibility
• Digital-to-analogue glitch impulse is 0.5nV-sec typical at (1LSB change around major carry)
• Slew rate is 0.8V/µs typical at (VDD = 2.7V to 5.5V; RL = 2Kohm to GND; CL = 200pF to GND)
• Operating temperature range from -40°C to +105°C, 16-lead TSSOP package
