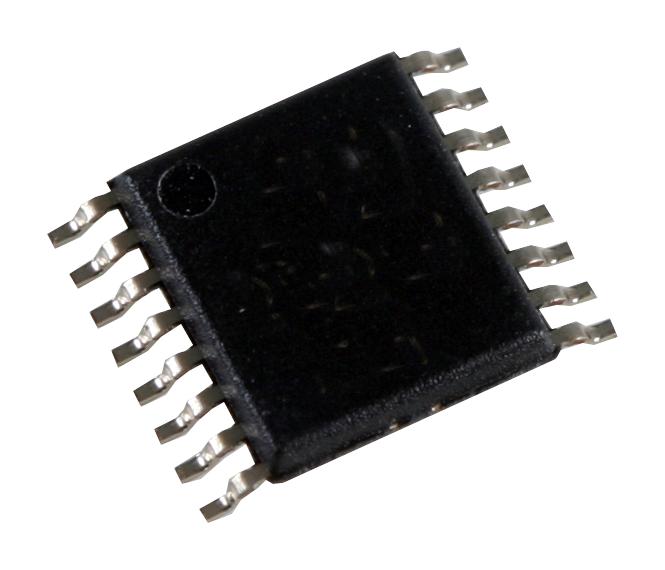

ANALOG DEVICES AD5316ARUZ Digital to Analogue Converter, Quad, 10 bit, 143 kSPS, I2C, 2.5V to 5.5V, TSSOP, 16 Pins

AD5316ARUZ is a quad 10bit buffered voltage output DAC. It operates from a single 2.5V to 5.5V supply, consuming 500?A at 3V. Their on-chip output amplifiers allow rail-to-rail output swing with a slew rate of 0.7V/?s. A 2-wire serial interface, which operates at clock rates up to 400KHz, is used. This interface is SMBus-compatible at VDD <lt/> 3.6 V. Multiple devices can be placed on the same bus. Each DAC has a separate reference input that can be configured as buffered or unbuffered. The outputs of all DACs can be updated simultaneously using the asynchronous active-low LDAC input. The parts incorporate a power-on reset circuit that ensures the DAC outputs power up to 0V and remains there until a valid write to the device takes place. It is used in applications such as portable battery-powered instruments, digital gain and offset adjustment, programmable voltage and current sources, programmable attenuators, and industrial process control.

• Relative accuracy is ±0.5LSB typical at (VDD = 2.5V to 5.5V; VREF = 2V; RL = 2Kohm to GND)
• Differential nonlinearity is ±0.05LSB typical at (VDD = 2.5V to 5.5V; VREF = 2V; RL = 2Kohm to GND)
• Offset error is ±5mV typ at (VDD = 4.5V, gain = 2, VDD = 2.5V to 5.5V; VREF = 2V)
• Gain error is ±0.3% of FSR typ at (VDD = 4.5V, gain = 2; VDD = 2.5V to 5.5V; VREF = 2V)
• Output voltage settling time is 7?s typical at (1/4 scale to 3/4 scale change (0x100 to 0x300))
• Slew rate is 0.7V/?s typical at (VDD = 2.5V to 5.5V; VREF = 2V; RL = 2Kohm to GND)
• Total harmonic distortion is -70dB typical at (VREF = 2.5V ±0.1V p-p, frequency = 10KHz)
• Major-code change glitch energy is 12nV-s typical at (1LSB change around major carry)
• Double-buffered input logic, buffered/unbuffered reference input options
• Operating temperature range from -40°C to +105°C, 16-lead TSSOP package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
