ANALOG DEVICES AD4630-16BBCZ Analogue to Digital Converter, 16 bit, 2 MSPS, Differential, Single Ended, Serial, SPI, Single

AD4630-16BBCZ is a 2-channel, simultaneous sampling, Easy Drive�, successive approximation register (SAR), analogue-to-digital converter (ADC). A low-drift, internal precision-reference buffer eases voltage-reference sharing with other system circuitry. It offers a typical dynamic range of 97.4dB when using a 5V reference. The low-noise floor enables signal chains to utilize less gain and lower power. A block-averaging filter with a programmable decimation ratio is available and can reduce noise for low-bandwidth signals, improving accuracy. The wide differential input and common-mode ranges allow inputs to use the full voltage reference (±VREF) range without saturating, simplifying signal-conditioning requirements and system calibration. Applications include automatic test equipment, digital control loops, medical instrumentation, seismology, semiconductor manufacturing, and scientific instrumentation.

• Common-mode rejection ratio (CMRR) is 132dB typical at (input frequency (fIN) = 10KHz)
• Complete cycle is 500ns minimum at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Conversion time is 282ns typical at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Throughput rate is 2Msps maximum at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Integral nonlinearity (INL) error is ±1LSB typical at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Signal to noise ratio is 97.4dB typical at (fIN = 1KHz, -0.5dBFS, VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Total harmonic distortion is -127dB typ at (IN = 1KHz, -0.5dBFS, VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• 74MHz typical -3dB input bandwidth at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)
• Aperture jitter is 1.4ps rms typical at (VDD-5V = 5.4V, VDD-1.8V = 1.8V)

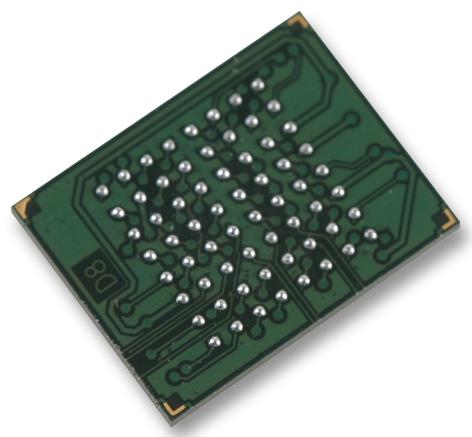

• Operating temperature range from -40°C to +125°C, 64-lead CSP-BGA package

Notes

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
