Description
Product Overview

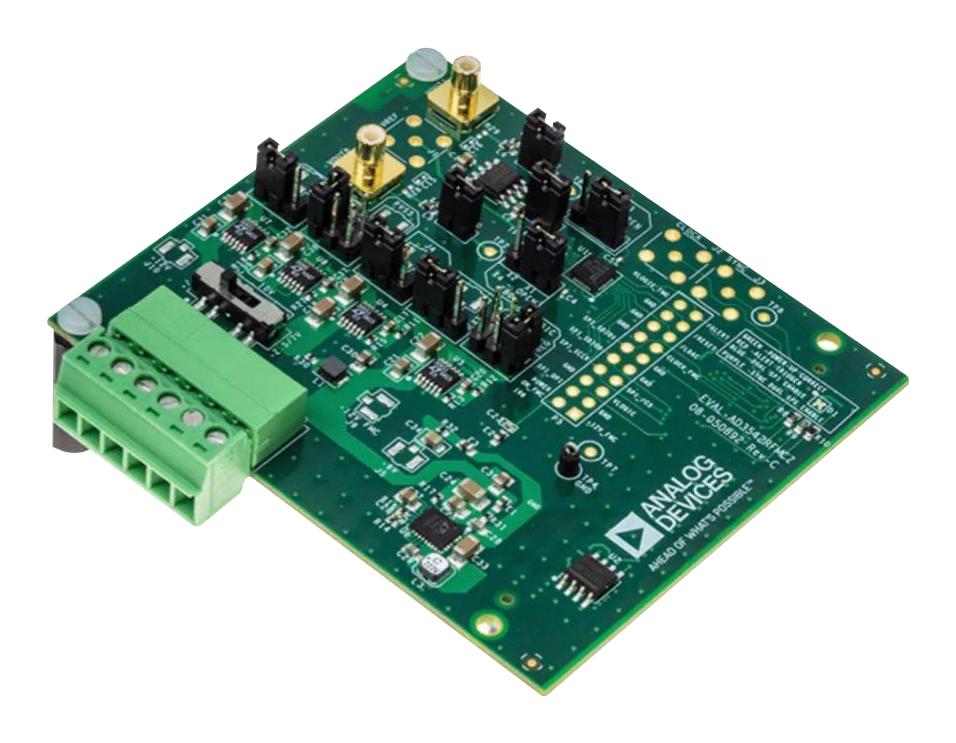

EVAL-AD3542RFMCZ is an evaluation board for the AD3542R, a dual-channel, 16-bit fast precision digital-to-analogue converter (DAC). The board allows testing all the output ranges of the DAC, waveform generation, power supply, and reference options. The EVAL-AD3542RFMCZ interfaces to the USB port of a PC via a system demonstration platform (SDP-H1 board). The EVAL-AD3542RFMCZ can also be connected to a different controller board using the pin header connector at position P5.
- Full featured evaluation board for the AD3542R
- Selectable transimpedance gain with rotary switch
- Selectable transimpedance amplifier supplies
- On-board or external power supply
- On-board or external voltage reference
- Impedance matching options for different instruments
- Used with SDP-H1 controller board
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-AD3542RFMCZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
