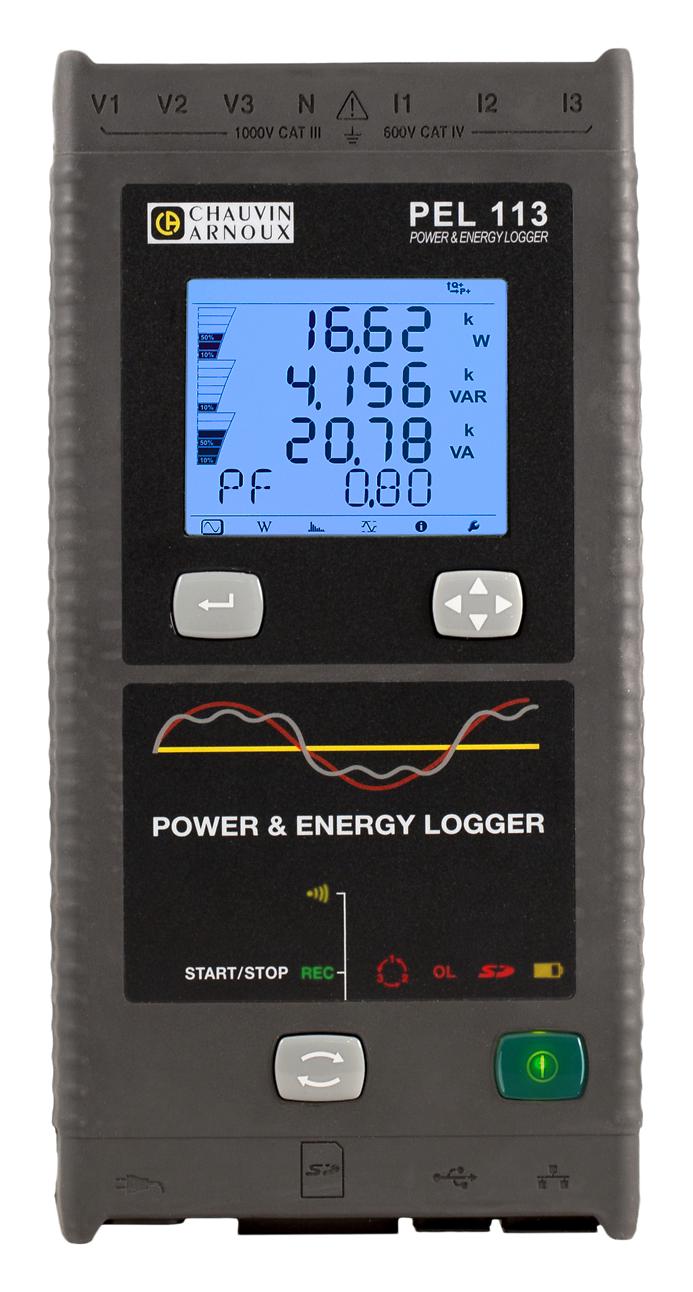

CHAUVIN ARNOUX PEL113-MA194 Data Logger, w/Current Sensor & Adapter, Energy, Power, 6 Channel, 128 Samples/Cycle

PEL113-MA194 it is a power logger with MA194 current sensor. measures and records all the power and energy values. It can be used wherever there is electricity : electricity generator: renewable energies, thermal energy, etc/industries: metallurgy, glassmaking, agri-food/residential buildings, tertiary, etc/infrastructure and transport/datacentres, etc. Applications include energy audits, electrical diagnostics and industrial maintenance.

• Possibility of recordings covering several months
• Breakdown of energy losses
• Installation without cutting off the mains supply
• Android application with motor diagnostics
• Simple, effective ergonomics � compact and magnetized
• 3 voltage inputs and 3 current inputs, quadruple backlit digital display, self-powered via the phase
• AC and/or DC voltages up to 1,000V
• Currents up to 10 kA AC or 5 kA DC (depending on the current sensor)
• 256 x 125 x 37mm (without sensor) dimension, 0°C to +50°C operating temperature
• IP54 casing, safety : IEC 61010 600 V CAT IV and 1000 V CAT III

Contents

Power logger, MA194 current sensor, 1 carrying bag, 4 voltage cables, 4 crocodile clips, 1 set of inserts/rings, 1 SD card, 1 SD Card-USB adapter, 1 USB cable, PEL TRANSFER PC software & User�s manual downloadable from our website, 1 Quick start guide.
