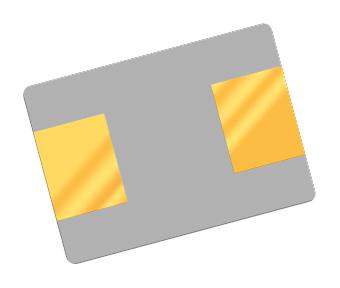

This is a Crystal, 12 MHz, SMD, 5mm x 3.2mm, 30 ppm, 18 pF, 20 ppm, QC5CB Series product from QANTEK TECHNOLOGY CORPORATION with the model number QC5CB12.0000F18B23M
Product details
| Frequency Nom |
12MHz |
| Crystal Case |
SMD, 5mm x 3.2mm |
| Frequency Stability + / - |
30ppm |
| Load Capacitance |
18pF |
| Frequency Tolerance + / - |
20ppm |
| Product Range |
QC5CB Series |
| Operating Temperature Min |
-40°C |
| Operating Temperature Max |
85°C |
Other details
| Brand |
QANTEK TECHNOLOGY CORPORATION |
| Part Number |
QC5CB12.0000F18B23M |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
