Description
Proaim Powermatic Scissor Overview
This version of the

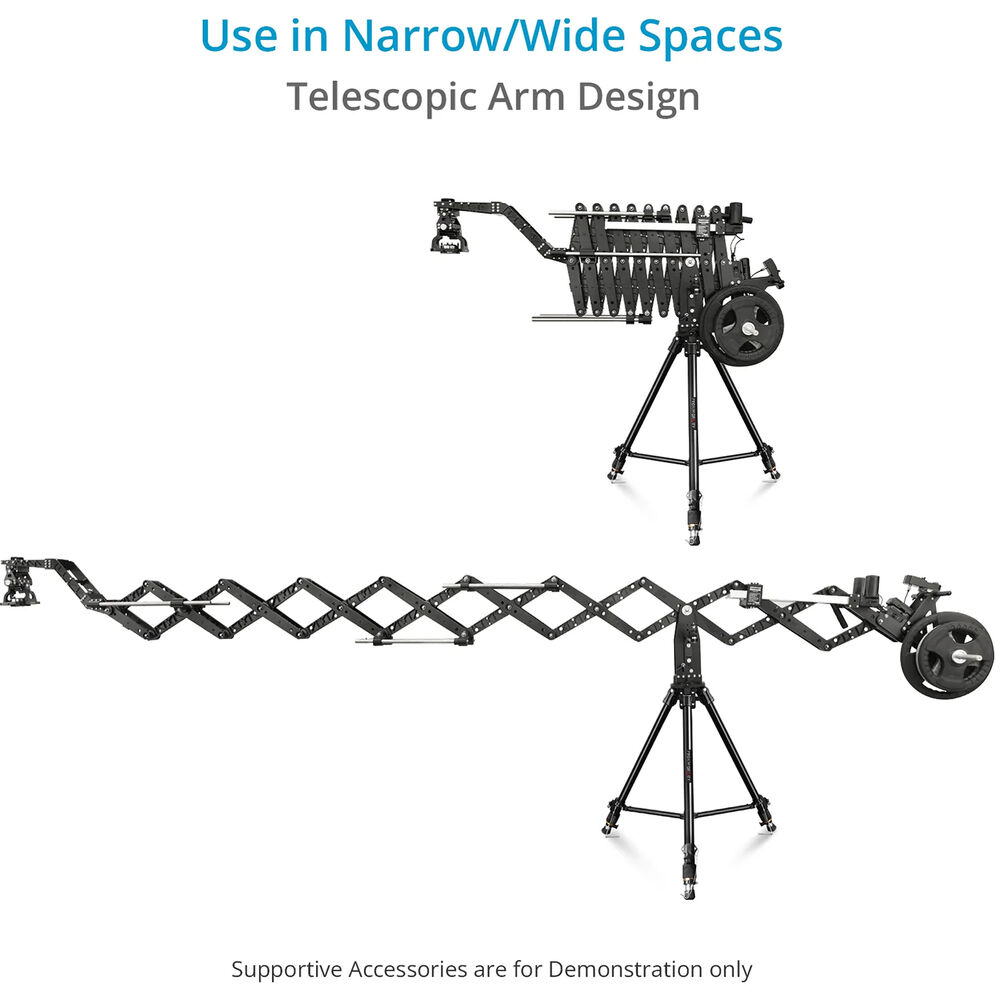

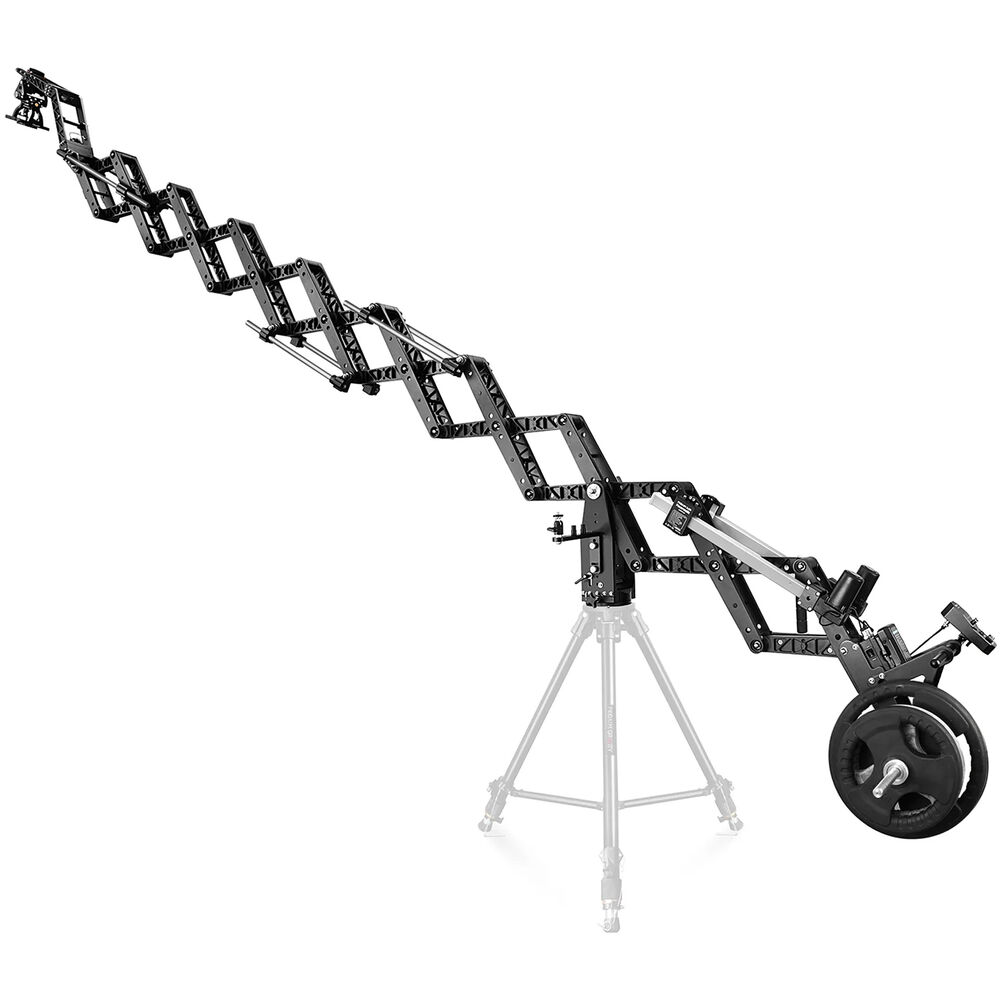

Proaim Powermatic Scissor Pro 17' Telescopic Jib Arm comes with an upgraded speed controller remote system and dampening Mitchell head with a larger load capacity of 66 lb at its full 17' extension. The jib arm can extend from 5.7 to 17' up to 1.4"/sec using the motor and control system. The controller box unit can be powered by a V-mount battery or the included AC power adapter.

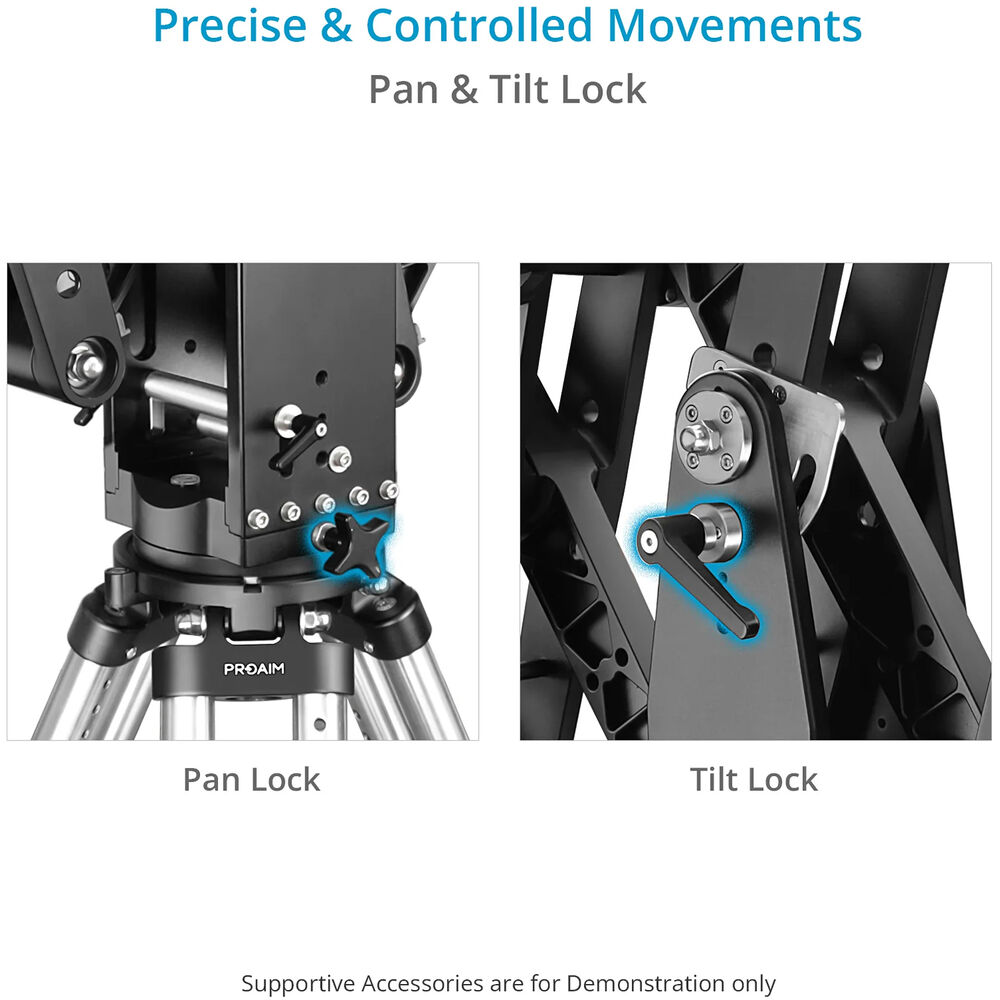

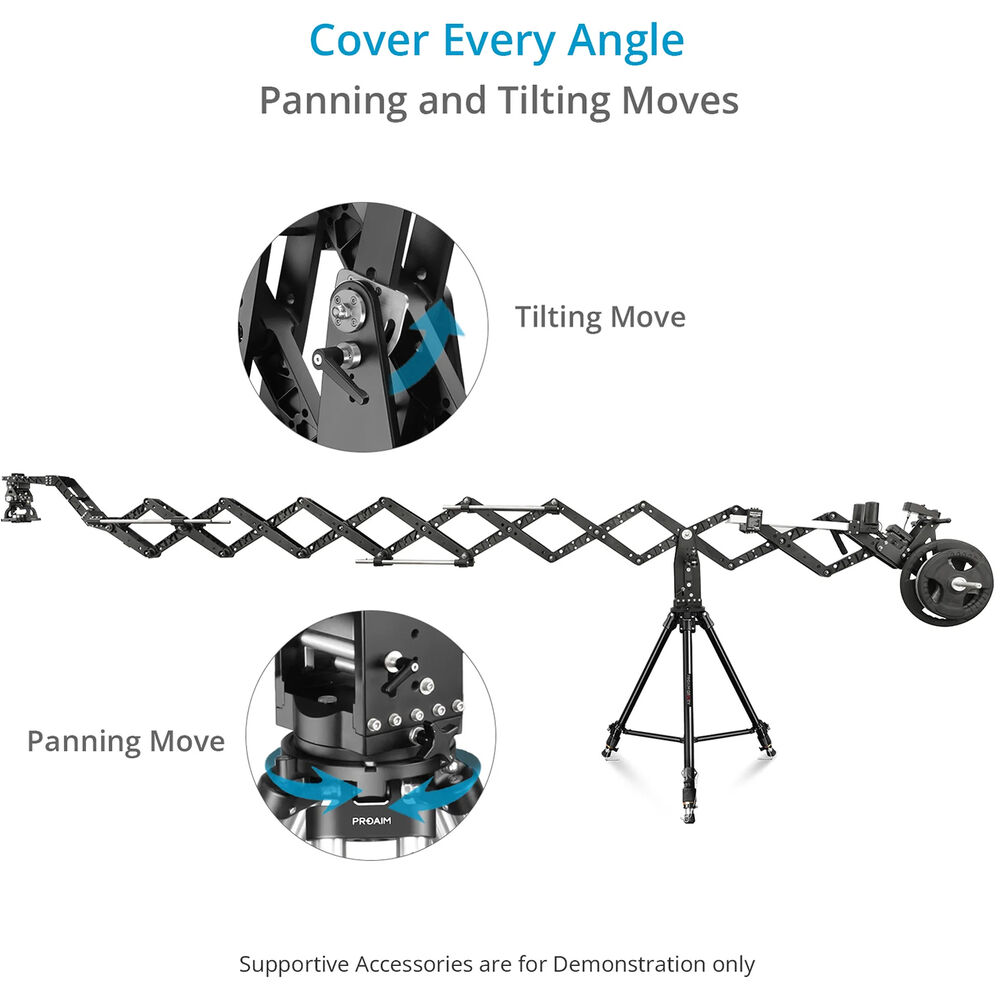

Separately available counterbalance weights are required for extension and can be attached to the jib's weight rod. The arm mounts on a flat base tripod or dolly and features independent pan and tilt locks. An included LCD monitor mount positions your camera monitor for optimal viewing while performing sweeping movements at maximum extension. All the components fit inside the included flight case for storage and transport.

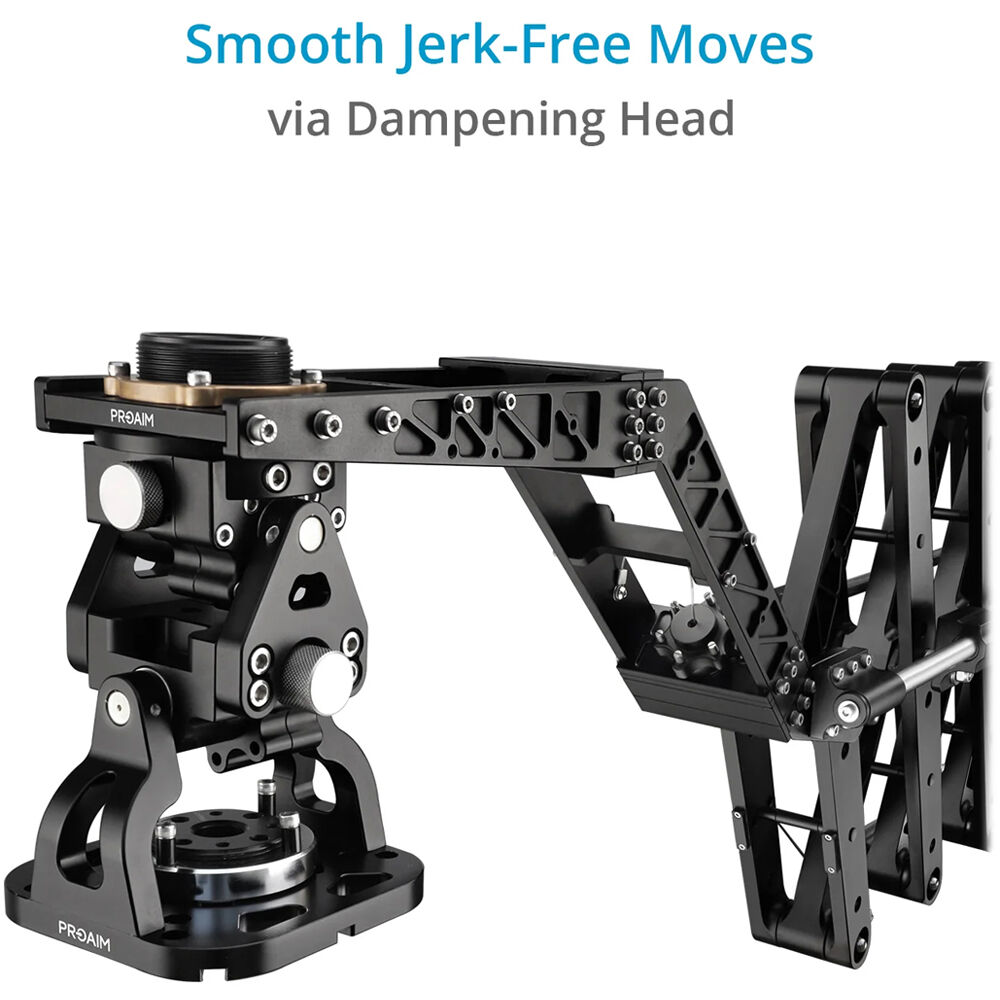

Dampening Mitchell Head
The included dampening head features a Mitchell mount base with 70 high-speed steel bearings to ensure smooth movements. A Ronin bracket adapter allows you to secure 3-axis DJI gimbals to the head. The head mitigates negative effects of any rapid gimbal movements to maintain smooth footage.

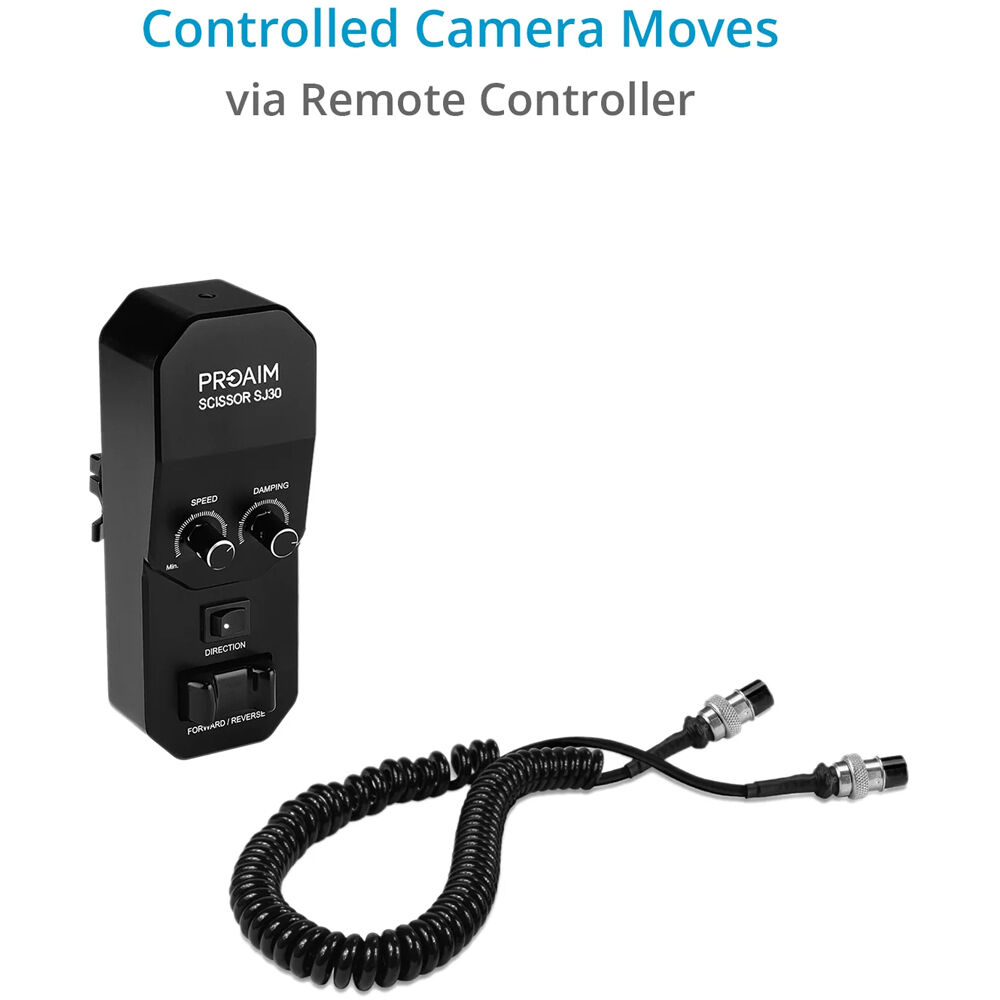

Upgraded Speed Controller Remote
- Forward and reverse buttons push out or pull in the jib arm
- Speed dial lets you control the speed intensity of the jib movements
- Damping adjustment dial facilitates smooth and stabilized movements
- Direction button locks the direction you want your jib to move in, forward or reverse
Items Included
- Proaim Powermatic Scissor 17' Telescopic Jib Crane with Speed Controller Remote & Dampening Head
- 6 x Guide Rod
- Sway Mitchell Dampening Head
- Mitchell Ronin Mount
- Camera Mount Plate
- Speed Controller Remote
- Remote Clamp
- Counterweight Rod
- Remote Holding Bar
- Monitor Arm
- Weight Bar
- Controller Cable
- Ronin Controller Bracket
- HDMI Male to Female Adapter
- 2 x Weight End
- AC Adapter (15V)
- BNC Cable
- HDMI Cable
- D-Tap to DC Barrel Cable
- HDMI Adapter
- Universal Power Adapter
- Hex Spanner
- Mounting Screw Set
- 4 x L-Shaped Allen Key
- 2 x T-Shaped Allen Key
- 2 x Hex Spanner
- 2 x Mitchell Key
- Flight Case
- Limited 1-Year Manufacturer Warranty
Not Included
- Essential Batteries
Additional Resources
Proaim Powermatic Scissor Specs
Inputs/Outputs
| Load Capacity |
66 lb / 30 kg
|
Power
| Power Source |
AC Adapter with Power Brick, Battery
|
| Battery Type |
1x V-Mount
|
| DC Input Power |
12 to 15 VDC
|
| Power Consumption |
60 W
|
| Operating Current |
10 A
|
Physical
| Mounting |
1x Mitchell Mount
|
| Color |
Black
|
| Material of Construction |
Aluminum
|
| Environmental Resistance |
Weather/Dust/Water-Resistant (IP44)
|
| Cable Length |
Not Specified by Manufacturer
|
| Dimensions |
17' / 5.2 m (Jib Total Length Extended)
5.7' / 1.7 m (Jib Length Closed) 15.7' / 4.8 m (Extended Height) 6.3' / 1.9 m (Closed Height) 10.6 x 6.5" / 27 x 16.5 cm (Mitchell Dampening Head) |
| Weight |
10.25 lb / 4.65 kg (Mitchell Dampening Head)
215.2 lb / 97.6 kg (Total) |
