Description

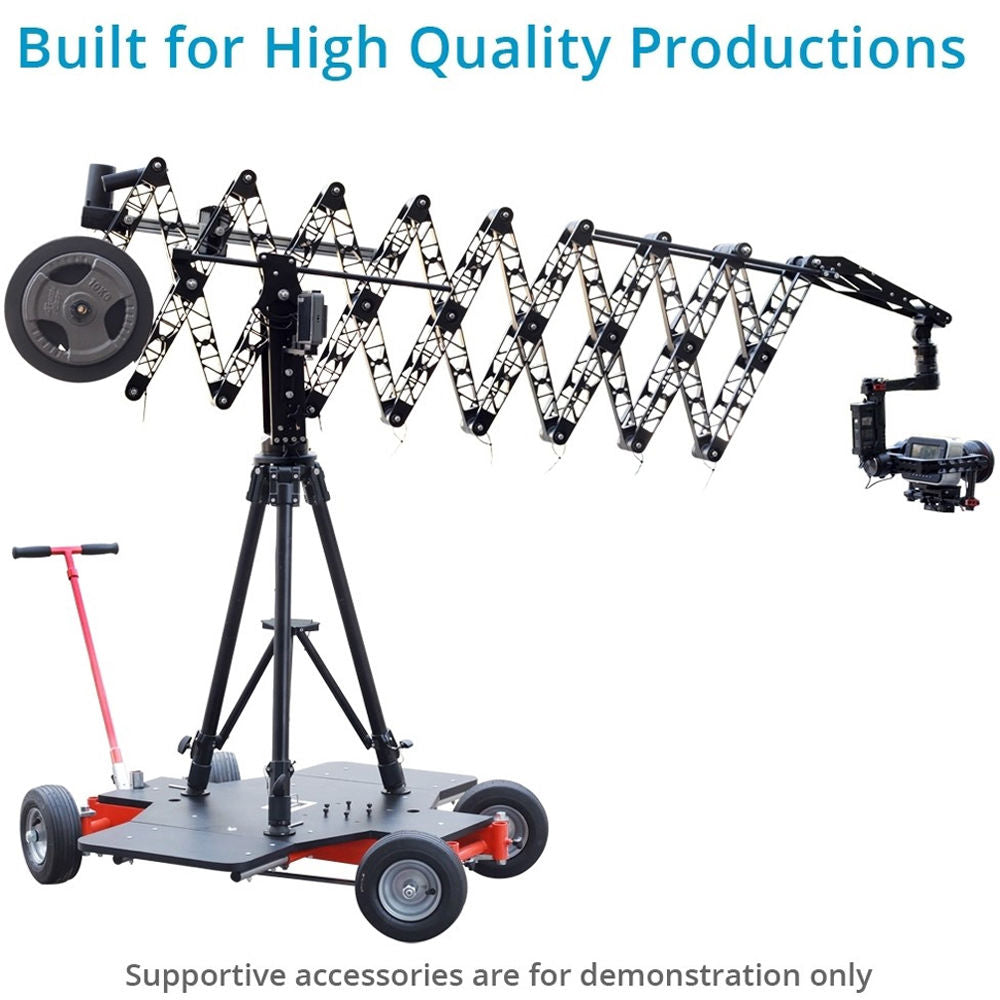

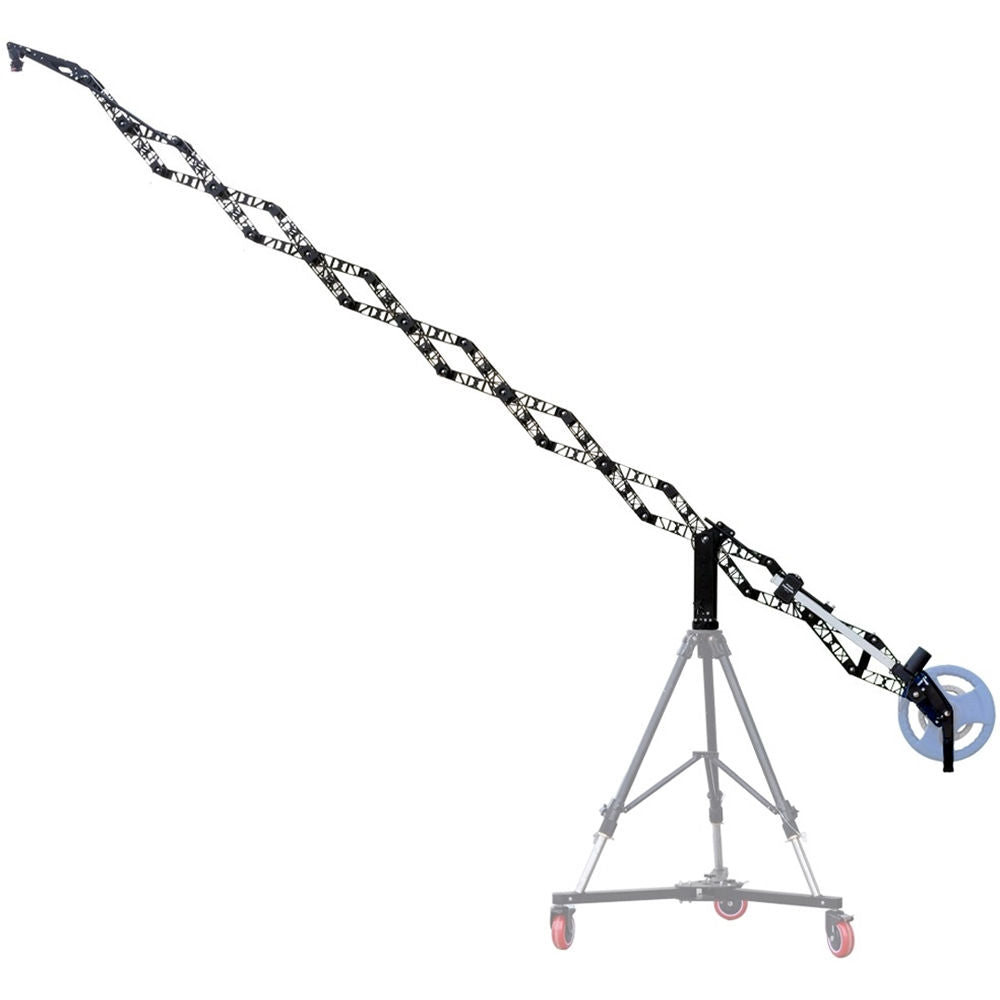

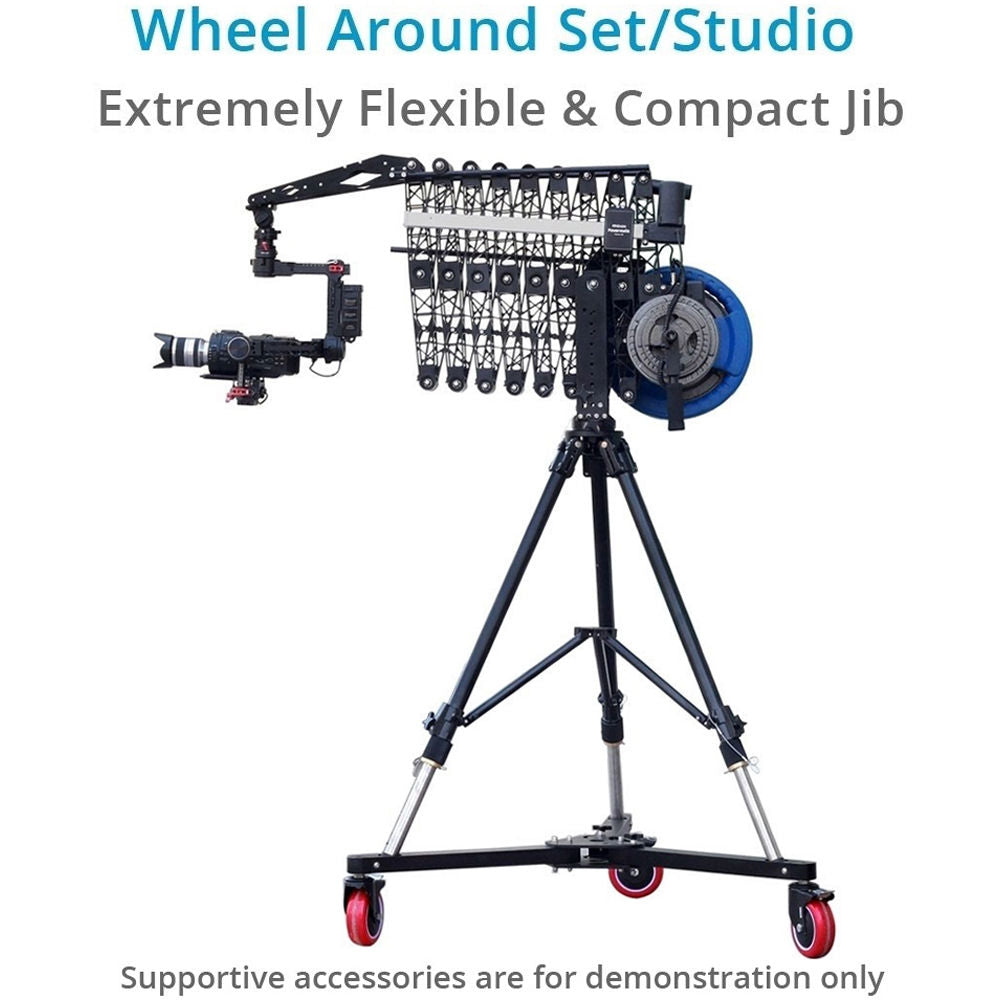

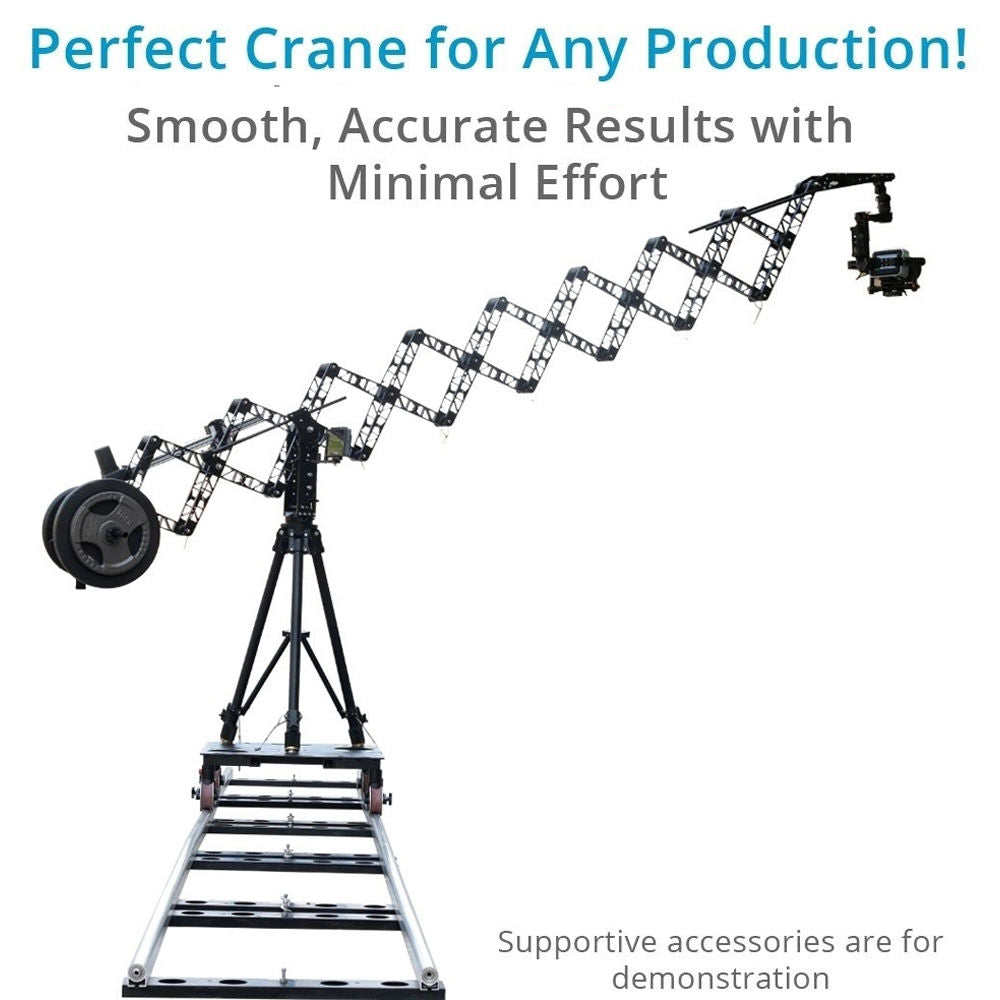

Proaim Powermatic Scissor Overview

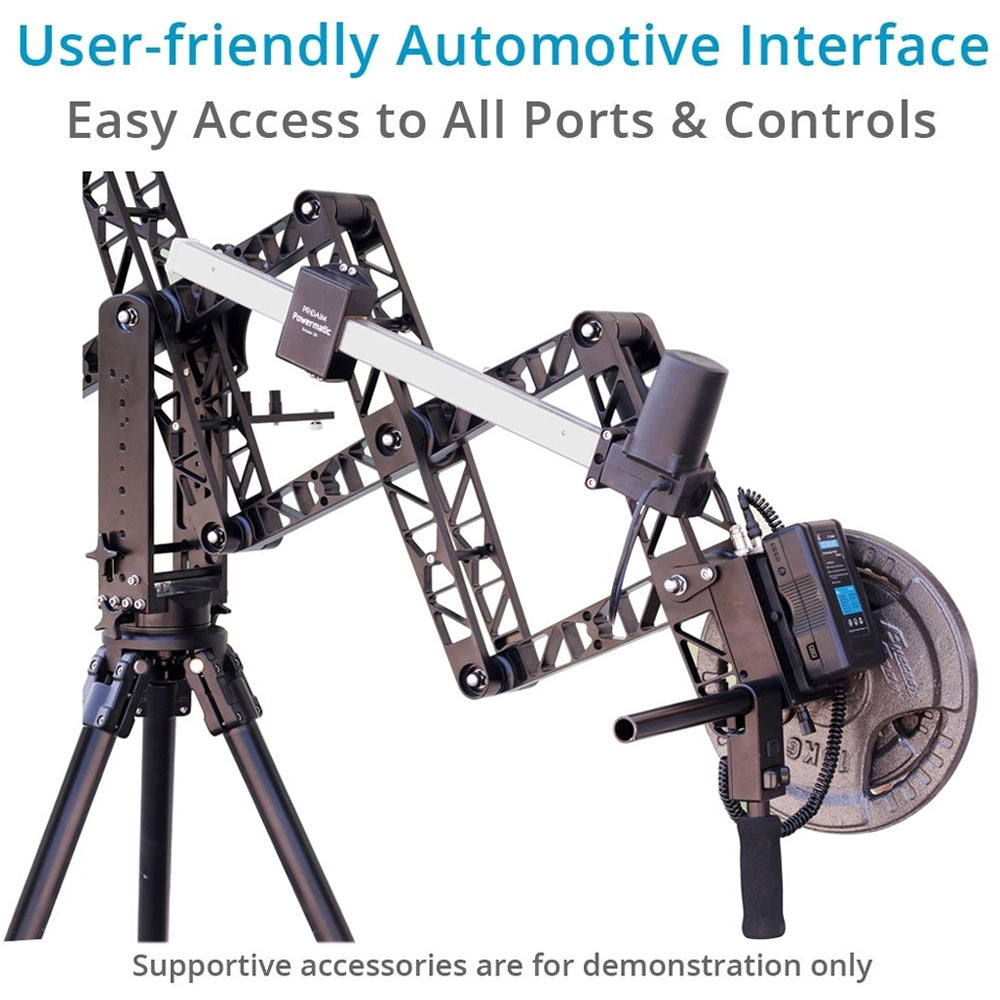

The Proaim Powermatic Scissor 17' Telescopic Jib Arm supports up to a 33-pound camera at full extension. This motorized jib arm can be operated by a single person, and it features a reach of 2.7' when collapsed to 13' when fully extended. This innovative design includes a motor powered by a single V-mount battery. The motor rides along the rear of the arm, behind the fulcrum. The design of the arm allows the motor to expand the small area behind the fulcrum, simultaneously adjusting the counterbalance distance from the fulcrum while extending the arm. This allows the jib arm to stay in balance without adjusting the weights between shots. Counterbalance weights are required but must be sourced separately.
The design uses 70 high-speed bearings to maintain the jib's rigidity and allow it to expand and retract quickly. The arm mounts on a flat base tripod or dolly (not included) and features independent pan and tilt locks. The jib arm and all necessary components, except the battery and counterbalance weights, fit into the included flight case.
In the Box
- Proaim Powermatic Scissor 17' Telescopic Jib Arm
- Hub Locking Knob
- Jib Controller and Monitor Bracket
- Ronin Controller Bracket
- HDMI Barrel Connector
- 2 x Weight End
- AC Adapter
- Weight Rod
- 3 x Cable Guide Rod
- BNC Cable
- HDMI Cable
- Flight Case
- Limited 1-Year Warranty
Proaim Powermatic Scissor Specs
| Construction | High-Grade Aluminum |
| Payload Capacity | 33 lb / 14.97 kg |
| Counterbalance System | Removable Weights |

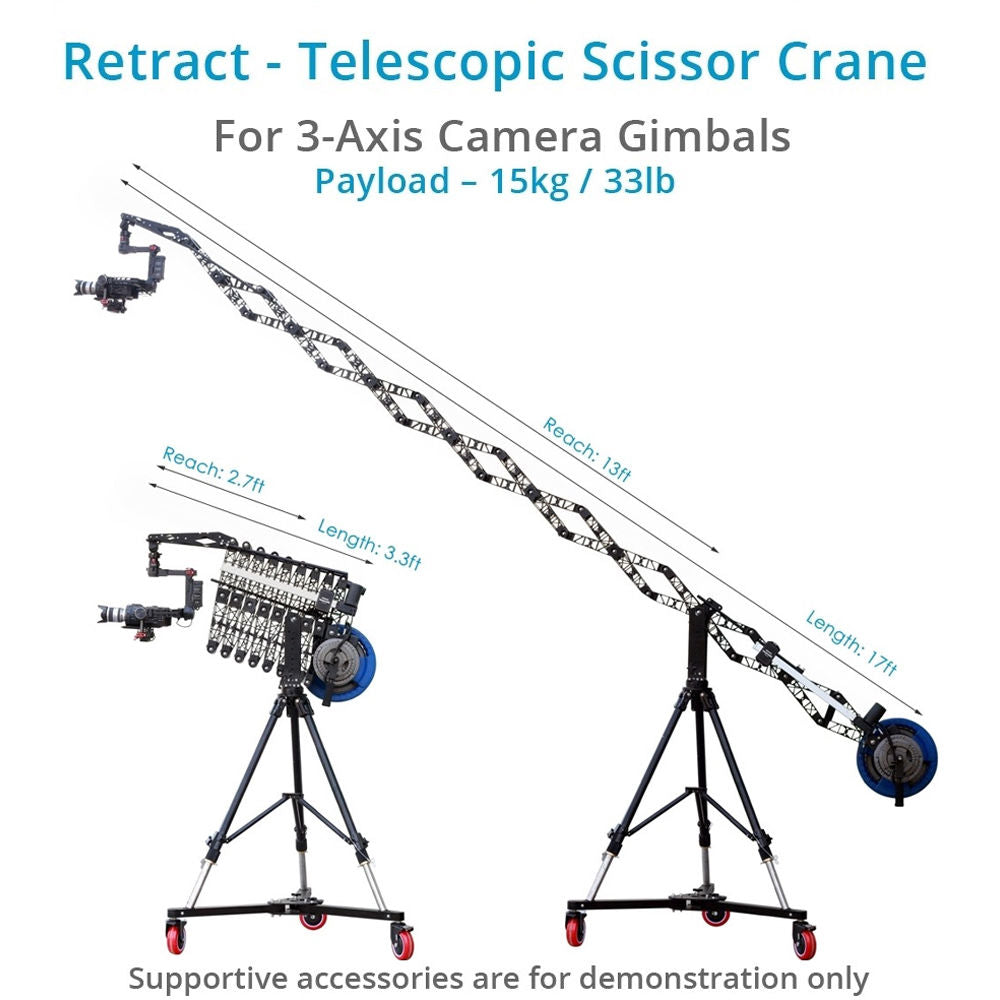

| Size | Collapsed Length: 3.3' / 1.01 m Reach: 2.7' / 0.82 m Extended Length: 17' / 5.18 m Reach: 13' / 3.96 m |
| Tilt Lock | Yes |
| Pan Lock | Yes |
| Weight | 73 lb / 33.11 kg |
| IP Rating | IP 44 |
| Voltage | 12 to 15 VDC |
| Power | Consumption: 60 W Power Draw: 10 A (Nominal) Source: V-Mount Battery |
| Force | Maximum Thrust: 1000N Maximum Pull: 1000N |
| Speed | Extension/Retraction: 1.42" / 36 mm per Second |
| Noise | <55 dB |
| Dimensions | 33.46 x 31.5 x 15.75" / 85 x 80 x 40 cm |
| Weight | 157 lb / 71.21 kg (Case plus Jib) |
| Package Weight | 154.5 lb |
| Box Dimensions (LxWxH) | 37.75 x 35.5 x 17" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
