Description

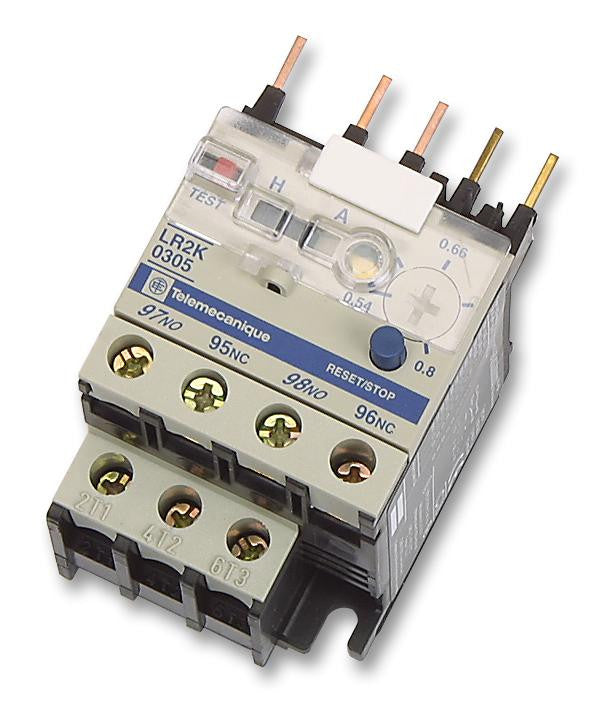

The LR2K0305 is a Differential Thermal Overload Relay. Compatible with LC1K, LP1K, LC7K and LP4K series. Screw clamp terminals 2 cable(s) 0.34 to 1.5mm�, flexible with cable end. Screw clamp terminals 1 cable 0.34 to 2.5mm�, flexible with cable end. Screw clamp terminals 2 cable(s) 0.75 to 4mm�, flexible without cable end. Screw clamp terminals 1 cable 0.75 to 4mm�, flexible without cable end. Screw clamp terminals 2 cable(s) 1.5 to 4mm�, solid. Screw clamp terminals 1 cable 1.5 to 4mm�, solid. 1NO-1NC auxiliary contact composition. Selector switch manual or automatic for reset mode. Blue pushbutton stop and manual reset. Red pushbutton trip test function.
- 400Hz Network frequency
- Class 10A
- Screw terminal
- -30 to 60�C Operating temperature
Applications
Industrial
Product details
| Coil Voltage DC Max | - |
| Overload Adjustment Current Max | 800mA |
| Product Range | - |
| Overload Adjustment Current Min | 540mA |
| Coil Voltage AC Max | - |
Other details
| Brand | SCHNEIDER ELECTRIC / TELEMECANIQUE |
| Part Number | LR2K0305 |
| Quantity | Each |
| Technical Data Sheet EN |  |
