SmallRig RC220 Overview
This RC 220D 2-Light Kit from SmallRig features two RC 220D daylight-balanced LED video lights and includes a V-mount battery adapter plate. Suitable for indoor and outdoor use, each light delivers a brightness of 10,100 lux at 3.3', and the included hyper-reflectors brightens the output to 98,700 lux per light. The lights are powerful enough to use as key lights, and they also offer nine built-in lighting effects.

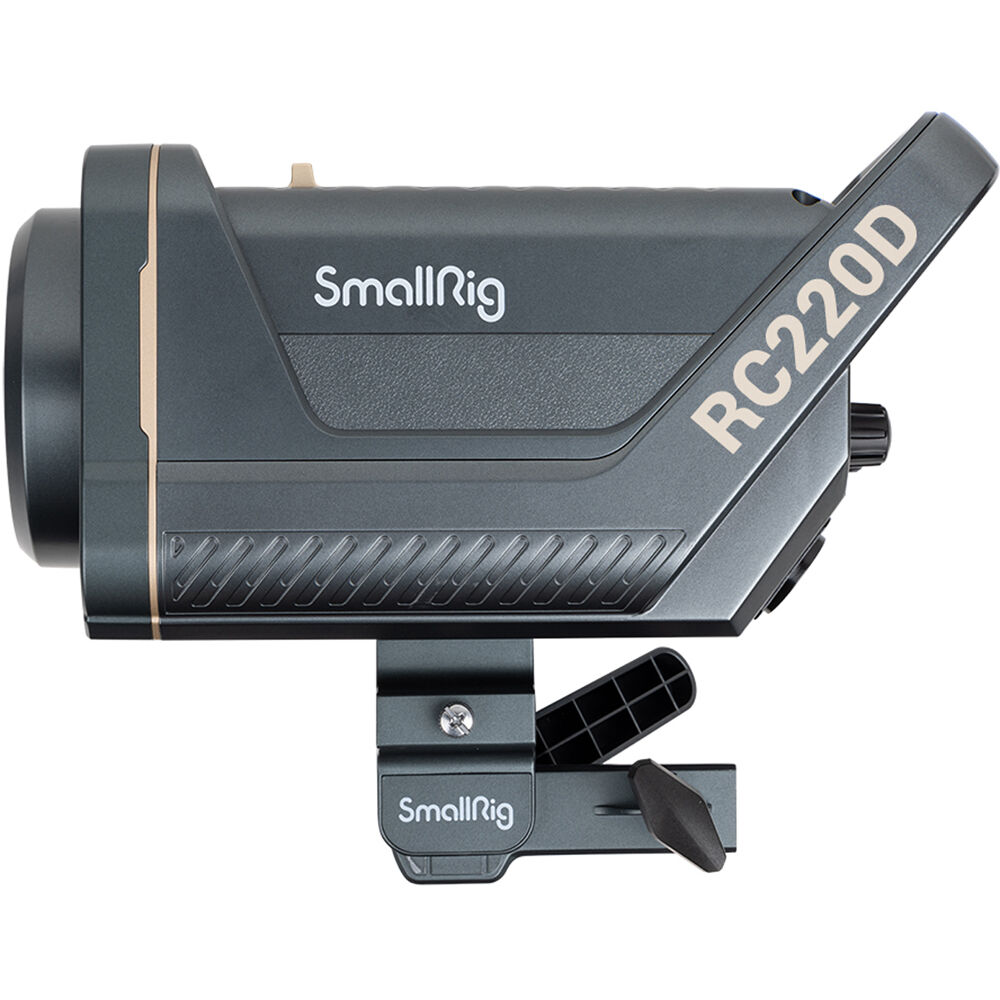

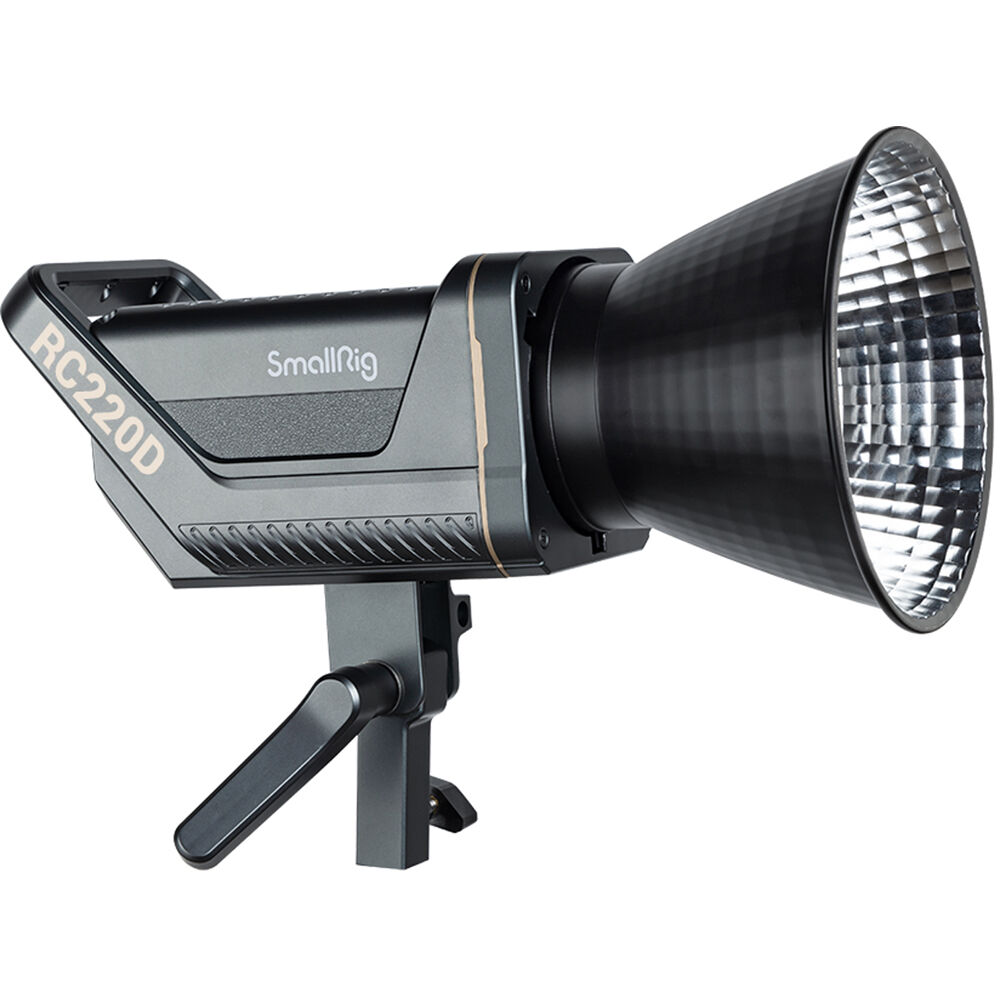

SmallRig RC 220D Daylight LED Monolight
Portable, with an extremely bright color output, this SmallRig RC 220D Daylight LED Monolight is suitable for both still and video work. Filmmakers and photographers with all levels of experience are sure to appreciate its build quality and flexibility. It features a daylight balanced CCT output of 5600K for exterior and interior shoots with available color correction filter media. This light is more powerful than SmallRig's RC 120, easily powerful enough to be used as a key light for narrative productions or for interviews. Using the included hyper reflector creates a beam with an intense center and smooth falloff to the edges. You can steplessly adjust the brightness of the fixture to get exactly the right brightness level.
Power the fixture using the included AC/DC power supply or a user-supplied 14.4V/26V battery with an optional D-Tap to 3-pin XLR power cord. The integrated cooling fan turns on automatically to prevent the light from overheating, and at 30db the fan is quieter than a refrigerator or most whispers. Featuring nine effects modes for creative lighting, the fixture can be used for a variety of dramatic effects. For adding softboxes and other light diffusing/shaping tools, the fixture is compatible with Bowens light-control accessories. An integrated display screen allows you to see the light's settings at a glance, and for adjustments you can control the light locally or via the SmallGoGo app, which provides wireless control over your fixture from up to 330' away.
The light features a correlated color temperature of 5600K and has an output of 10,100 lux at 3.3'. Utilizing the included hyper reflector will brighten the fixture's output to 98,700 lux.
Paparazzi, fireworks, lightning, faulty bulb, TV, breath, flash, party, flame.
Local and SmallGoGo APP control, which can simultaneously control multiple SmallRig lights and achieve extended signal coverage and control distance thanks to the built-in Mesh Bluetooth networking module.
The heat dissipation system turns on when the temperature of the lamp body exceeds 140°F, and is quiet at only 30dB (±2dB) at 3.3'.
The fixture features a Bowens mount, so it is fully compatible with a variety of accessories. the yoke has a built-in receiver for an optional umbrella.
The fixture features an XLR power input connecter, so you can power it from a user-supplied 14.4V battery via an optional D-Tap to 3-pin XLR cable from a professional battery (either 14.4 or 26 volts) with a capacity above 150Wh, or from the included 12 to 30 VDC wide-range power supply.
- Easy to attach and remove lighting accessories, featuring a built-in umbrella hole
- Barrier-free 270° tilt adjustment

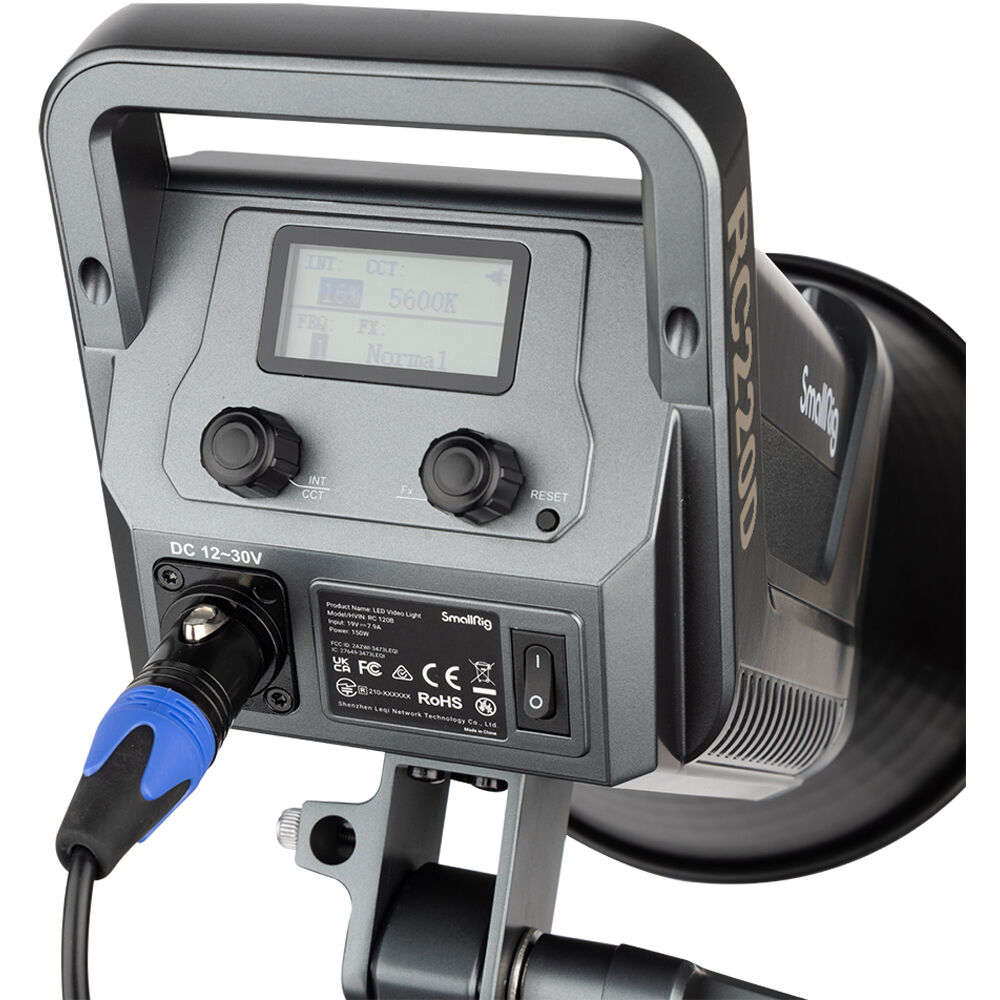

- A built-in display screen on the fixture shows brightness, power remaining, AC power supply connected, wireless frequency, and FX mode

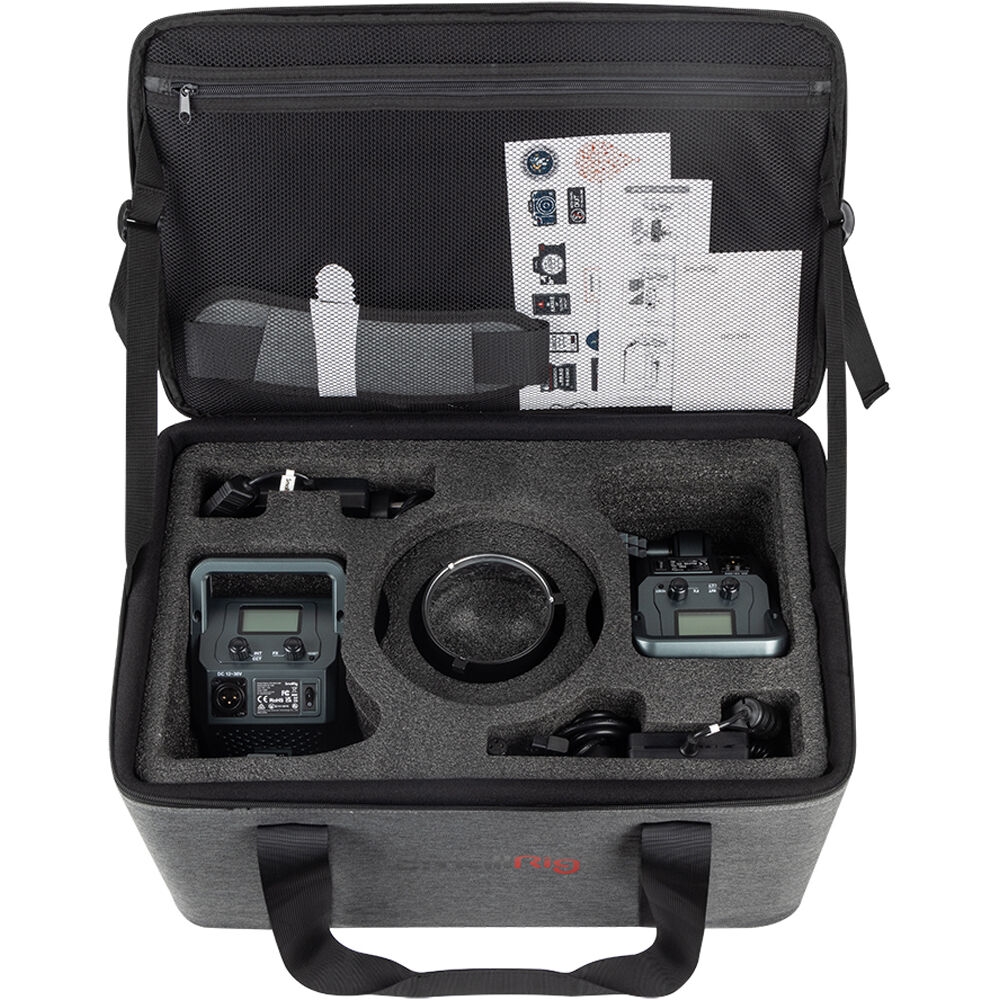

- Compact and portable, the fixture comes with a durable storage bag that has a precision-molded insert to hold the light, a standard cover, and a power cable for easy storage and protection during transport

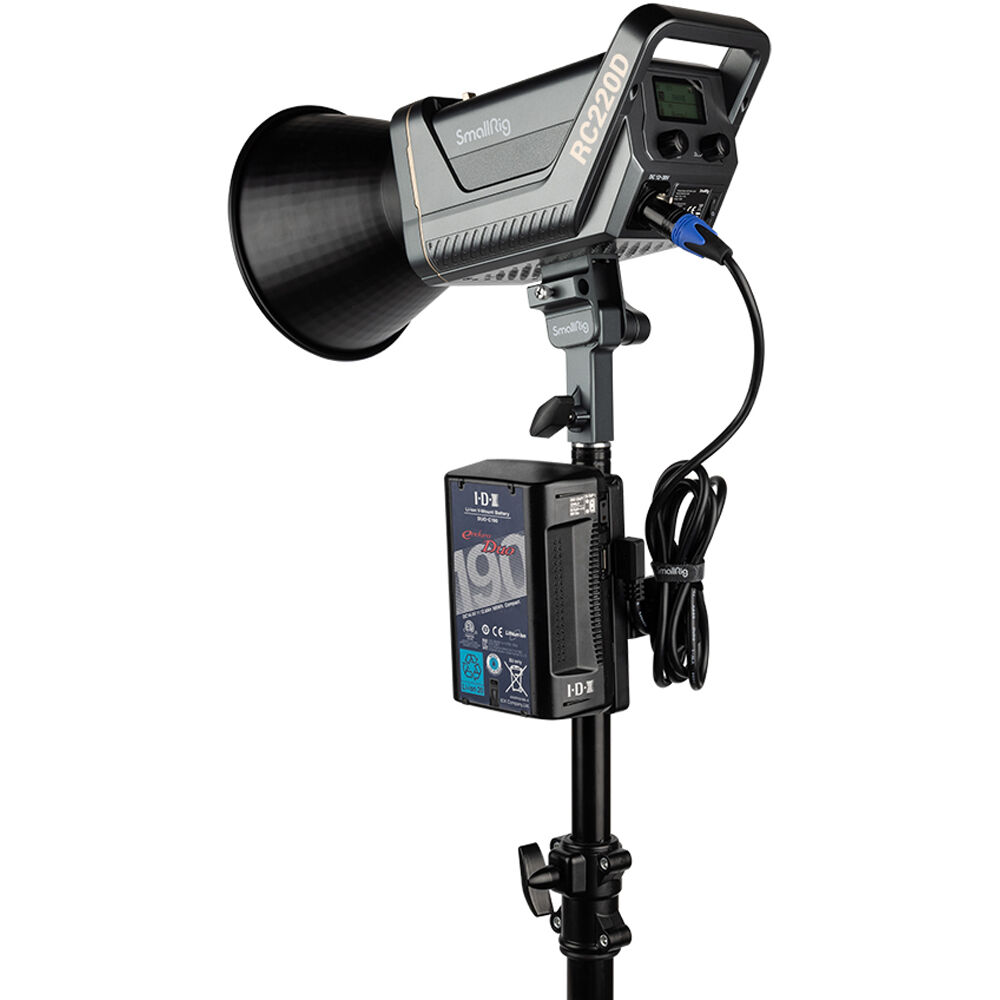

SmallRig V-Mount Battery Plate
Designed to work with your SmallRig COB LED light (either daylight balanced or bi-color), the SmallRig V-Mount Battery Plate provides power to your light from its D-Tap output port. Simply mount the battery plate onto the lightstand supporting your light fixture and connect the included 5.9' long D-Tap to 3-pin XLR power cable to the battery plate and your light fixture for long run times without changing the battery.

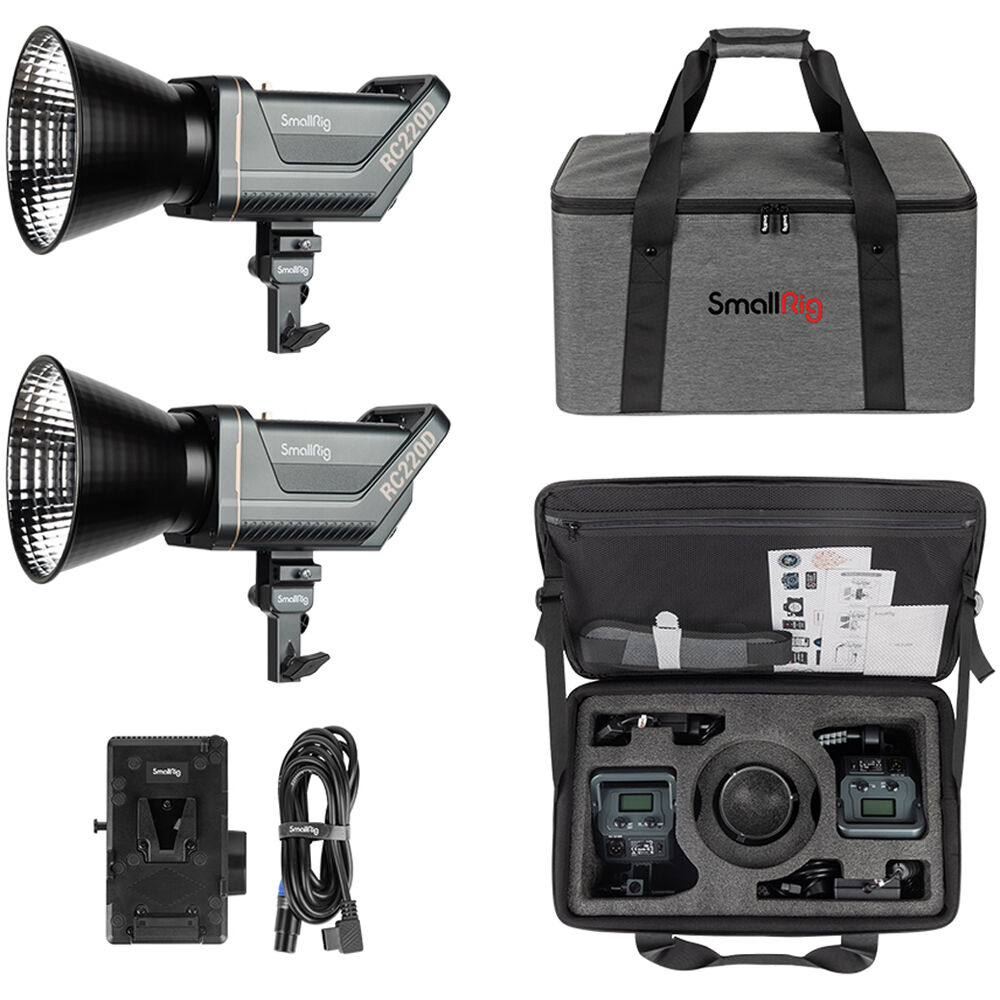

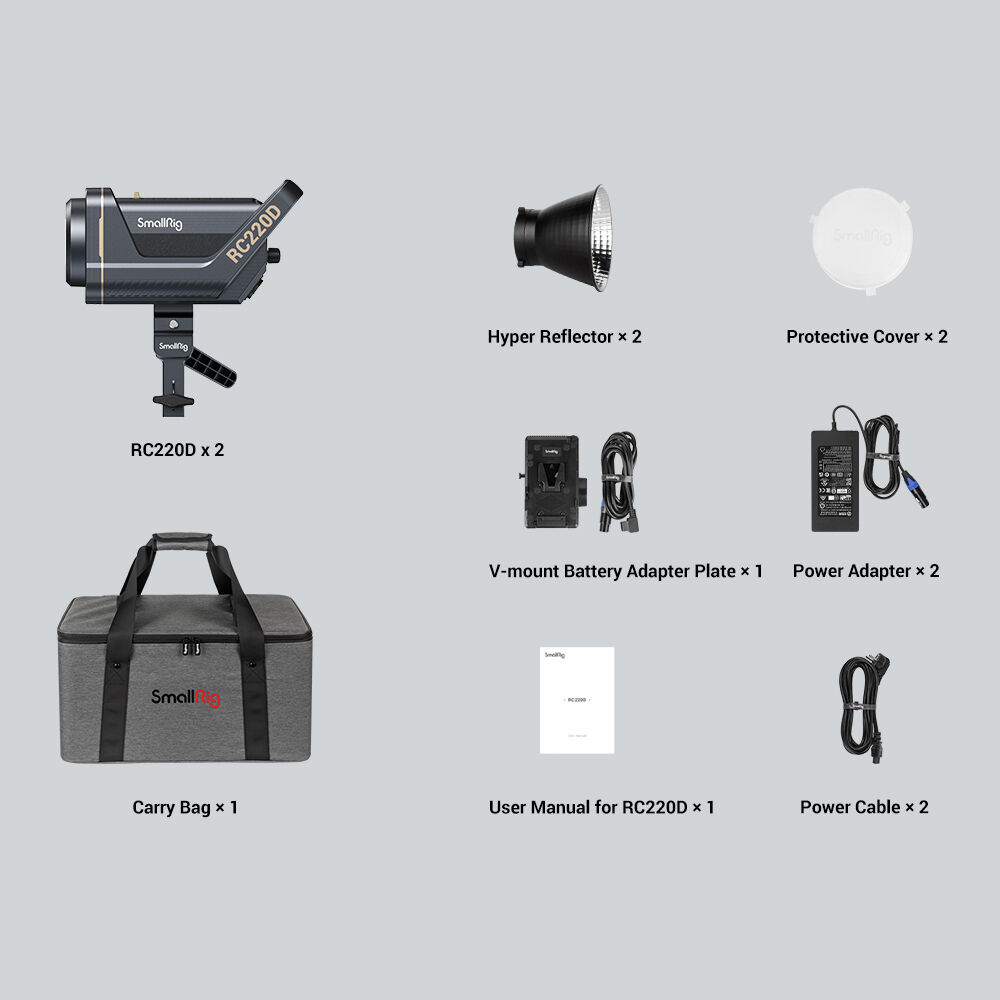

In the Box
- 2 x SmallRig RC 220D Daylight LED Monolight
- Hyper Reflector
- AC Adapter
- Power Cable
- Soft Sided Storage/Carrying Bag
- Limited 1-Year Manufacturer Warranty
- SmallRig V-Mount Battery Plate
- D-Tap to 3-Pin XLR Adapter Cable
- Limited 2-Year Manufacturer Warranty
SmallRig RC 220D Daylight LED Monolight Specs
Light Fixture
| Item Type |
1 x LED Monolight |
| Included Light Modifier |
1 x Reflector |
| Included Storage Case |
1 x Case |
| Lumens |
Not Specified by Manufacturer |
| Photometrics |
:
9169 fc / 98,700 Lux at 3.3' / 1 m (with Reflector) |
| Color Temperature |
5600K +/- 200K |
| Color Modes |
Daylight |
| Color Accuracy Standard |
CRI 95
TLCI 96 |
| Cooling System |
Fan |
| Dimming |
Yes, Built-In Dimmer (Continuous) |
| Built-In Flash |
No |
| Umbrella Mount |
Yes |
| Front Accessory Mount |
Bowens S |
Connectivity
| Wireless Remote Control Type |
Bluetooth |
| Mobile App Compatible |
Yes: Android & iOS
*As of May, 2020: Check with manufacturer for the most up-to-date compatibility |
| Wireless Range |
328.1' / 100 m |
Power & I/O
| Power Source |
AC to DC Adapter (Included)
|
| Inputs/Outputs |
1 x XLR 3-Pin Power Input |
| Battery Plate Type |
1 x V-Mount (Not Included) |
| Battery |
1 x V-Mount Rechargeable, 12 to 30 VDC (Not Included) |
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| DC Input Power |
14.4 to 26 VDC |
| Included Adapter / Cable |
1 x Edison Plug to XLR 3-Pin AC to DC Adapter |
| Inline Switch |
No |
| Power Pass-Thru |
No |
| Power Consumption |
260 W |
Mounting
| Fixture Mounting |
1 x 5/8" Receiver |
General
| Dimensions |
9.4 x 9.4 x 4.8" / 24 x 23.76 x 12.2 cm (Fixture) |
| Weight |
6.28 lb / 2.85 kg |
Packaging Info
| Package Weight |
12.515 lb |
| Box Dimensions (LxWxH) |
20.2 x 10.9 x 10.2" |
SmallRig V-Mount Battery Plate Specs
General
| Mount |
V-Mount |
| Cable Length |
5.91' / 1.8 m |
| Dimensions |
5.7 x 3.5 x 2.8" / 145 x 90 x 70 mm |
| Weight |
19.4 oz / 550 g |
Packaging Info
| Package Weight |
1.505 lb |
| Box Dimensions (LxWxH) |
8.4 x 8 x 3.3" |
