Kino Flo FreeStyle Mini Overview
-
1Description
-
2Kino Flo FreeStyle Mini LED Fixture
-
3Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U)
-
4Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short
-
5Kino Flo 25' Head Extension Cable for FreeStyle T44
-
6Kino Flo Soft Case for FreeStyle Mini System (Black)

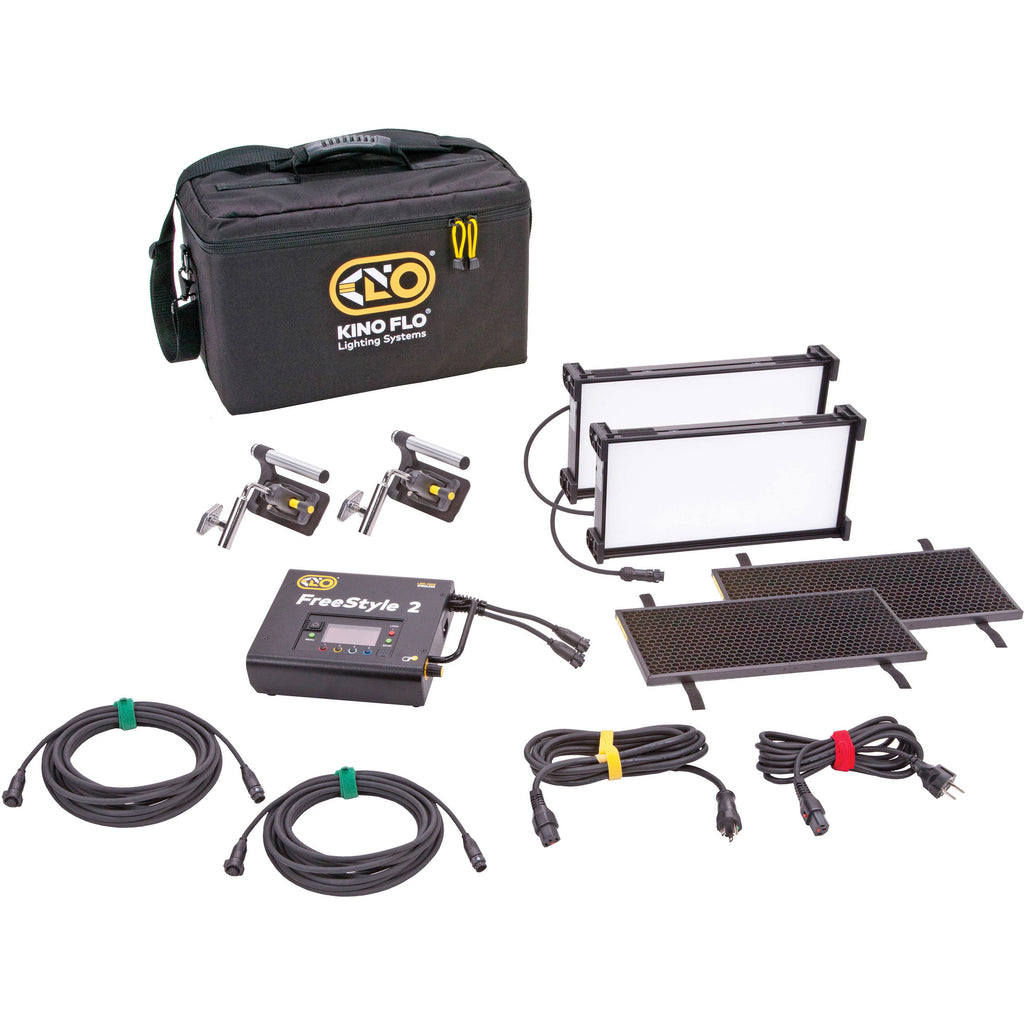

Ideal for the image maker on the road, the Freestyle Mini LED DMX 2-Light Universal System with Soft Case from Kino Flo is built around the Mini and its DMX Controller.
The kit includes two Mini fixtures, one controller, 2 MTP-BG41 mounts with short Baby receivers, and two 25' extension cables. A soft case with a padded shoulder strap is also included for storage and transport.
Kino Flo FreeStyle Mini LED Fixture
Slim and compact in size, the FreeStyle Mini LED Fixture from Kino Flo offers the same Color Science LED technology found in all Kino Flo LEDs. The portable and lightweight fixture can easily fit into tight locations or can be handheld with a separately purchased KinoGrip 41K Mount. For mounting on light stands, the back of the fixture features a twist-on removable KinoGrip Center Mount, which can be adapted to work with multiple Kino Flo mounting adapters. Molded corners offer additional rigging options, and a louver is included, which is held in place with hook-and-loop fasteners.
The FreeStyle Mini requires a separately purchased head cable and DMX controller, and the controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX. The White mode features dimming from 1 to 100% and a tunable range of 2700 to 6500K. In the Gels/Hue Color mode, the range is expanded from 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color mode gives individual control of red, green, and blue LEDs, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
- Adjustable color temperature from 2500 to 9900K
- 1 to 100% dimming without color shifts
- Flicker-free and quiet operation
- Gel presets include blue and green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
- Full range onboard and DMX dimming
- DMX wireless link
Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U)
The Universal 120U Kinoflo FreeStyle 120 LED DMX Controller supports universal power, 100 to 240 VAC and comes with a replaceable 3-prong US power cord. The controller features four individual modes: White, Gels/Hue Color, RGB Color, and FX Mode. The White Mode features dimming from 100-1% and a tunable kelvin range from 2700 to 6500K. In the Gels/Hue Color mode the kelvin range is expanded to 2500 to 9900K. The gel channel also includes Kino Flo presets such as blue & green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels. RGB Color Mode gives individual control of red, green, and blue LED's, and in FX mode you are provided access to popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll.
- Adjustable color temperature from 2500 to 9900K
- 100-1% dimming without color shifts
- Flicker-free and quiet operation
- Gel presets include blue & green screen, sodium vapor, and mercury vapor, as well as over 100 well-known lighting gels
- FX mode for popular effects such as candle, fire, TV, police, lightning, paparazzi, pulse, and scroll
- Full-range onboard and DMX dimming
- DMX wireless link
Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short
Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short from Kino Flo. Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light, as well as a wing knob for making quick adjustments and locking the light in position.
Kino Flo 25' Head Extension Cable for FreeStyle T44
The 25' Head Extension Cable for FreeStyle T44 from Kino Flo allows you to place the light's controller at a greater distance, from the head to hide it or prevent water damage.
Kino Flo Soft Case for FreeStyle Mini System (Black)
Store, transport, and protect your FreeStyle Mini System with the black Soft Case from Kino Flo. The case features a zippered closure, a padded shoulder strap, and a padded top handle.
In the Box
- 2 x Kino Flo FreeStyle Mini LED Fixture
- Louver
- Limited 1-Year Warranty
- Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U)
- IEC Power Cable (3-Prong US)
- Limited 1-Year Warranty
- 2 x Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short
- 2 x Kino Flo 25' Head Extension Cable for FreeStyle T44
- Kino Flo Soft Case for FreeStyle Mini System (Black)
- Limited 1-Year Warranty
Table of Contents
- Description
- Kino Flo FreeStyle Mini LED Fixture
- Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U)
- Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short
- Kino Flo 25' Head Extension Cable for FreeStyle T44
- Kino Flo Soft Case for FreeStyle Mini System (Black)
Kino Flo FreeStyle Mini LED Fixture Specs
Light Fixture
| Color Temperature |
2500 to 9900K |
| Dimming |
Yes, 1 to 100% |
| Display |
None |
| Rectangular Panel Size |
15 x 7.5" / 38.10 x 19.05 cm |
| Fixture Dimensions |
Overall: 15.0 x 7.5 x 3.0" / 38.1 x 19.1 x 7.6 cm |
| Fixture Weight |
3.5 lb / 1.59 kg |
Connectors
| Battery Plate |
None |
| Power Input Connection |
3-Pin XLR |
| DMX Connection |
3-Pin XLR |
Mounting
| Yoke Mount |
None |
| Fixture Mount |
None |
Power
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz |
| Power Source |
AC Adapter |
Packaging Info
| Package Weight |
3.845 lb |
| Box Dimensions (LxWxH) |
15.6 x 9.7 x 3" |
Kino Flo FreeStyle 120 LED DMX Controller (Universal 120U) Specs
Power
| Input Voltage |
AC: 100 to 240 V
DC: 18 to 36 V |
| Amperage |
0.83 A @ 120 V
0.43 A @ 230 V
4.2 A @ 24 V |
| Color Temperature |
2500 to 9900K |
| Dimming |
100 to 1% Brightness |
| Dimensions |
9.5 x 7 x 2.5" / 24 x 18 x 6.5 cm |
| Weight |
4 lb / 2 kg |
Packaging Info
| Package Weight |
4.27 lb |
| Box Dimensions (LxWxH) |
12.5 x 9.9 x 2.8" |
Kino Flo KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver Short Specs
| Mount |
5/8" / 16 mm Baby Receiver |
Packaging Info
| Package Weight |
1.9 lb |
| Box Dimensions (LxWxH) |
12.2 x 5.7 x 3.1" |
Kino Flo 25' Head Extension Cable for FreeStyle T44 Specs
Packaging Info
| Package Weight |
1.075 lb |
| Box Dimensions (LxWxH) |
13.2 x 11.9 x 1.85" |
Kino Flo Soft Case for FreeStyle Mini System (Black) Specs
Exterior
| Closure Type |
Zipper |
| Carry and Transport Options |
Shoulder Strap, Top Handle |
| Exterior Dimensions (W x H x D) |
18.5 x 9.5 x 13.5" / 47 x 24.1 x 34.3 cm |
| Weight |
4.5 lb / 2 kg |
