Kino Flo FreeStyle 21 LED DMX Kit with Flight Case

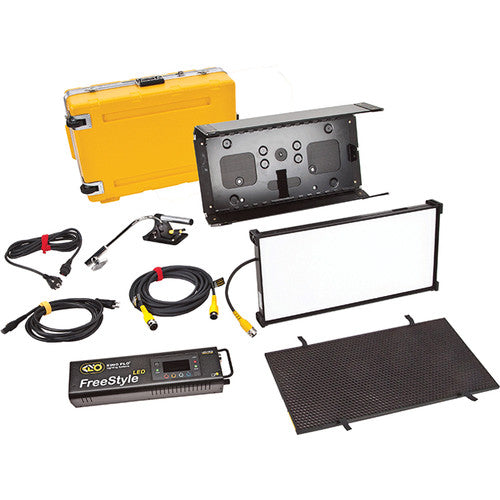

A complete and portable one-light kit, the FreeStyle 21 LED DMX Kit with Flight Case from Kino Flo contains the versatile FreeStyle 21 LED Fixture, a Select 150 LED DMX Controller, an MTP-BG41 Mount with 5/8" Baby Receiver, a 25'-long extension cable, and a hard flight case to protect and store the light when not in use.

• FreeStyle 21 LED Fixture

  The FreeStyle 21 LED Fixture from Kino Flo is an LED lamp head that is part of a system or kit that includes the required Select 150 LED DMX Controller. The fixture measures 26.5 x 3.5 x 13" w/ 6.0" Barndoors and weighs 11.5 lb - light enough to hand hold. The fixture comes with a 90-degree removable louver (grid). In fact, the LED panel can also be removed from its housing for mounting options. The fixture runs on 100 to 240 VAC current through its optional controller.

  The FreeStyle 21 requires a head cable and controller (which are available separately) for use. The LED-150X Controller offers an extensive 6-channel array of control features and use options. It has 2 menus for color and a "White Menu" for Dimming, Kelvin Temperature and Green/Magenta adjustments. Using one of the color menus expands the Kelvin range from a warm 2500 to an ice-blue 9900K. The second color menu allows you to work with RGB, a real convenience when employing color wheels or RGB presets. The fourth channel (named the Gel channel) has presets for over 100 well-known temperature-modifying gels including blue/green screen, sodium vapor and mercury vapor.

  A fifth channel allows for Hue adjustments along a 360-degree range like a color wheel, while the 6th Saturation channel controls the intensity of the chosen color. The required controller has onboard DMX for making adjustments remotely from a console and also is compatible with Lumen Radio wireless DMX. The LED-150X Controller runs on 100 to 240 VAC current for worldwide use. It has a 2-prong Euro plug but can be used with any wall outlet with the appropriate, inexpensive plug adapter.

  Photometrics

  Footcandles
  508 fc at 2.0' (0.6 m)
  154 fc at 4.0' (1.2 m)
  70 fc at 6.0' (1.8 m)
  40 fc at 8.0' (2.4 m)
  26 fc at 10' (3.0 m)
  Lux
  7113 lux at 1.6' (0.5 m)
  2409 lux at 3.3' (1.0 m)
  1121 lux at 4.9' (1.5 m)
  634 lux at 6.5' (2.0 m)
  412 lux at 8.2' (2.5 m)

  Benefits Using Separately Purchased LED Controller

  Kelvin presets

  Dial-in color temperature control between 2700-6500K

  Extended color palette from 2500-9900K

  Green/Magenta Control

  Hue angle and Saturation adjustments

  RGB control

  Works with Apps with predetermined RGB presets or color wheels

  Can use preset buttons to store custom Kelvin settings

  Light levels do not change when selecting Kelvin settings

  No color shift while dimming

  Color-correct with high color rendering index (CRI 95)

  Universal input 100-240 VAC or 24 VDC

  Energy efficient, low electrical draw

  Flicker-free, dead quiet operation

  Full range onboard and DMX dimming

  DMX wireless link (Lumen Radio)

  DMX Auto Terminate

  Remote fixture with built-in barndoors

  Removable LED panel with center mount and molded corner mounts

  Fixture includes removable 90° Honeycomb Louver

  Honeycomb louver also available in 60° as accessory

  Removable Center Mount

  Lightweight, slim profile

  Mounts on stand, light enough to be handheld

  Separately purchased Controller mounts onto fixture or operates remotely with extension cable

• LED Controller for Kino Flo Select 20 and 30 Fixtures

  The LED Controller for Kino Flo Select 20 and 30 Fixtures from Kino Flo is a detachable controller for the Select 20 or Select 30 LED heads. The controller can be mounted on the back of the lamp head or used remotely up to 25' away with an optional extension cable. It enables the fixture to produce a consistent light level across the variable 2700 to 6500K color temperature range in the White Menu and 2500 to 9900K in the Color Menu. The White Menu has Dimming, Kelvin and Green/Magenta adjustment channels. The Color Menu gives you access to Gel, Hue Angle and Saturation channels. The Gel channel includes presets such as blue and green screen, sodium vapor, mercury vapor and over 100 well-known lighting gels. Hue Angle and Saturation channels act like a traditional color wheel with a 360-degree color range and choice of color intensity. The detachable controller has a display screen for menu navigation and information display, as well as physical buttons for navigation and settings.

  This hard-wired DMX controller is augmented by wireless DMX, which is provided by Lumen Radio. It can accept worldwide AC power and can also be powered by DC via a 3-pin XLR connector.

  Benefits

  Tunable Kelvin 2500K to 9900K in Color Menu

  Tunable Kelvin 2700K to 6500K in White Menu

  Dimming without color shift

  Green/Magenta control

  Kino Flo presets and Gel presets

  Dial-in color using Hue angle and Saturation control

  Universal input 100-240 VAC and 18-36 VDC

  Manual and DMX dimming with Auto Terminate

  DMX wireless (Lumen Radio)

  Flicker-free, dead-quiet operation

• KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver

  Make your fixture easier to transport and handle with this KinoGrip K41 Twist-On Mount with 5/8" Baby Receiver from Kino Flo . Able to work with fixtures featuring Twist-On mating plates, this mount will add a grip handle for easier maneuvering of the light as well as a wing knob for making quick adjustments and locking the light in position.

  Compatible Fixtures

  Single
  Double
  4Bank
  Select
  FreeStyle

• Extension Cable 150 for Select LED System (25')

  The 25' Extension Cable 150 for Select LED System from Kino Flo provides extra distance between the Select LED head and its ballast. Up to 2 extensions can be joined for a total of 50'.

• Flight Case for Diva 20 Fixture and Accessories (Yellow)

  Store, protect, and transport your Diva 20 lighting fixture, controller, 25' extension cord, mount, stand, and more with the yellow Flight Case for Diva 20 Fixture and Accessories from Kino Flo . The case has a hard shell for impact protection and features latch closure for easy access to gear. Carry the case with the handles, or roll on the two built-in wheels.

• 90-Degree Louver (Grid)

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 90-Day Warranty
