Description

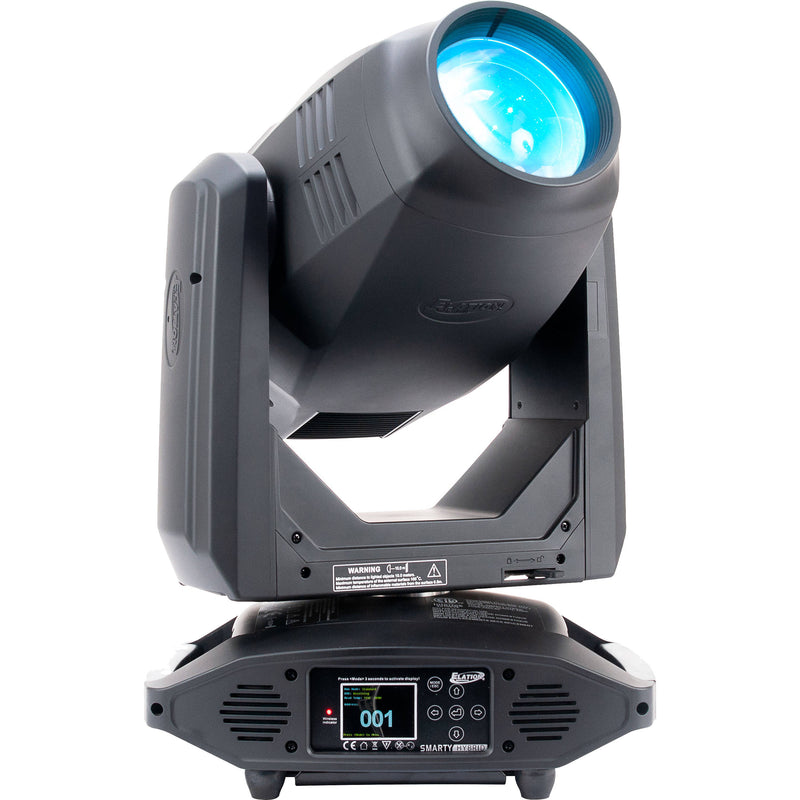

Elation Professional Proteus Smarty Hybrid Overview
The IP65 rated Elation Professional Proteus Smarty Hybrid is a fully featured spot, beam, and wash hybrid fixture for indoor and outdoor use, offering remarkable projection quality and a wide color mixing array through its variable CMY color mix engine. The fixture is well-suited for special events and concerts as well as theme parks and cruise ships. The fixture features a Philips MSD Platinum 200 Flex lamp with FLEX technology which uses a smartly designed discharge lamp/ballast package to produce high output and compact performance at an efficient, long-life solution of up to 6000 hours.

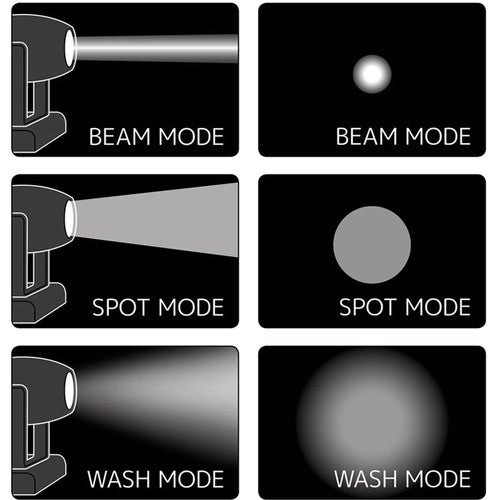

The Proteus Smarty Hybrid's features include an 11,000-lumen total output, motorized zoom ranges of 1 to 18° in beam mode, 3 to 27° in spot mode, and 5 to 33° in wash mode, as well as a full CMY color mixing system, a full frost filter for wash effects, and 13 dichroic colors including a quad-color filter, CTB, CTO, and UV. Additional effects include: 8 rotating and interchangeable glass gobos; 12 static, stamped metal gobos; 16-facet and 5-facet linear and independent rotating prisms; multiple CMY color, gobo, and prism macros; motorized focus with an auto-focus feature; high speed shutter and strobe; and lamp hibernation mode.

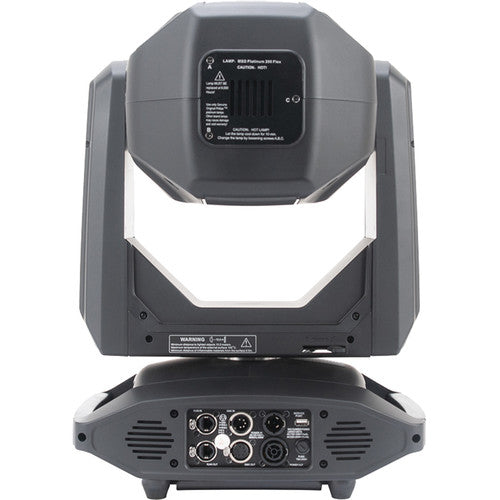

The Proteus Smarty Hybrid can be controlled by DMX, remote device management (RDM), Art-Net, and sACN protocol support. The rear panel offers a variety of IP65-rated input and output connections including 5-pin XLR, RJ45 etherCON, and Seetronic Powerkon. There is a 6-button control panel and full-color 180° reversible menu display. The Elation Professional Proteus Profile ships with mounting brackets and a power cord.
- IP65 certified 3-in-1, beam, spot, wash hybrid fixture
- Flex lamp technology from 190 to 280W and lamp hibernation with up to 6000-hour lamp life
- Full CMY color mixing system
- Rotating and static gobos, dual prism, frost
- Zoom from 1° beam to 33° wash and autofocus option
In the Box
- Elation Professional Proteus Smarty Hybrid Spot, Beam, & Wash LED Moving Head Fixture
- Set of Mounting Brackets
- Seetronic Powerkon Cord
- Limited 2-Year Warranty
Elation Professional Proteus Smarty Hybrid Specs
| Light Source | Lamp: Philips MSD Platinum 200 Flex 280 W Lamp Life: Up to 6000 Hours |
| Photometric Data | Total Output: 11,000 lumens 128,426 lux at 49.2'/15m (Beam Mode) |
| Effects | Beam, Spot, and Wash Modes Motorized Zoom: Beam: 1 to 18° Spot: 3 to 27° Wash: 5 to 33° Full Frost Filter for Wash Effects 16-Facet and 5-Facet Linear Prisms CMY Color, Gobo, and Prism Macros Motorized Focus with Autofocus Feature High-Speed Shutter and Strobe |
| Color | Full CMY Color Mixing System 13 Colors Including Quad Color, CTO, CTB and UV |
| Gobos | 2 Gobo Wheels 8 Rotating / Indexing Interchangeable Glass Gobos 12 Static, Stamped Metal Gobos |
| Control and Connectors | 2 DMX Channel Modes DMX, RDM, Art-NET, sACN Protocol Support 6 x Button Touch Control Panel Full Color 180° Reversible LCD Menu Display IP65 5-Pin XLR DMX In/Out IP65 RJ45 etherCON In/Out IP65 Seetronic Power In/Out Wired Digital Communication Network |
| Power Requirements | 100 to 240 VAC, 50/60 Hz |
| Power Consumption | Maximum 480 W |
| Approvals | CE, cETLus |
| Ratings | IP65 |
| Dimensions (L x W x H) | 17.5 x 17.9 x 26.8" / 44.45 x 45.42 x 68.07 cm |
| Weight | 71.1 lb / 32.2 kg |
