Description
Elation Professional Wash 100 Overview

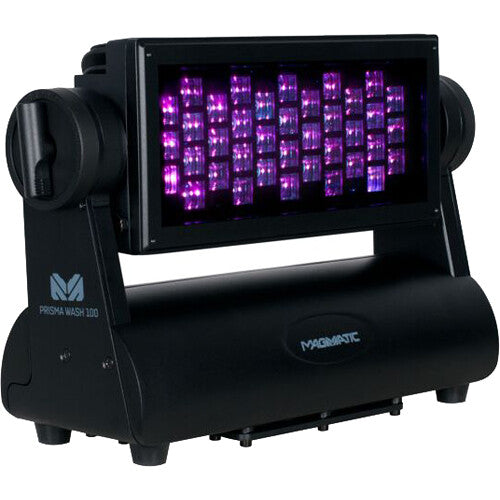

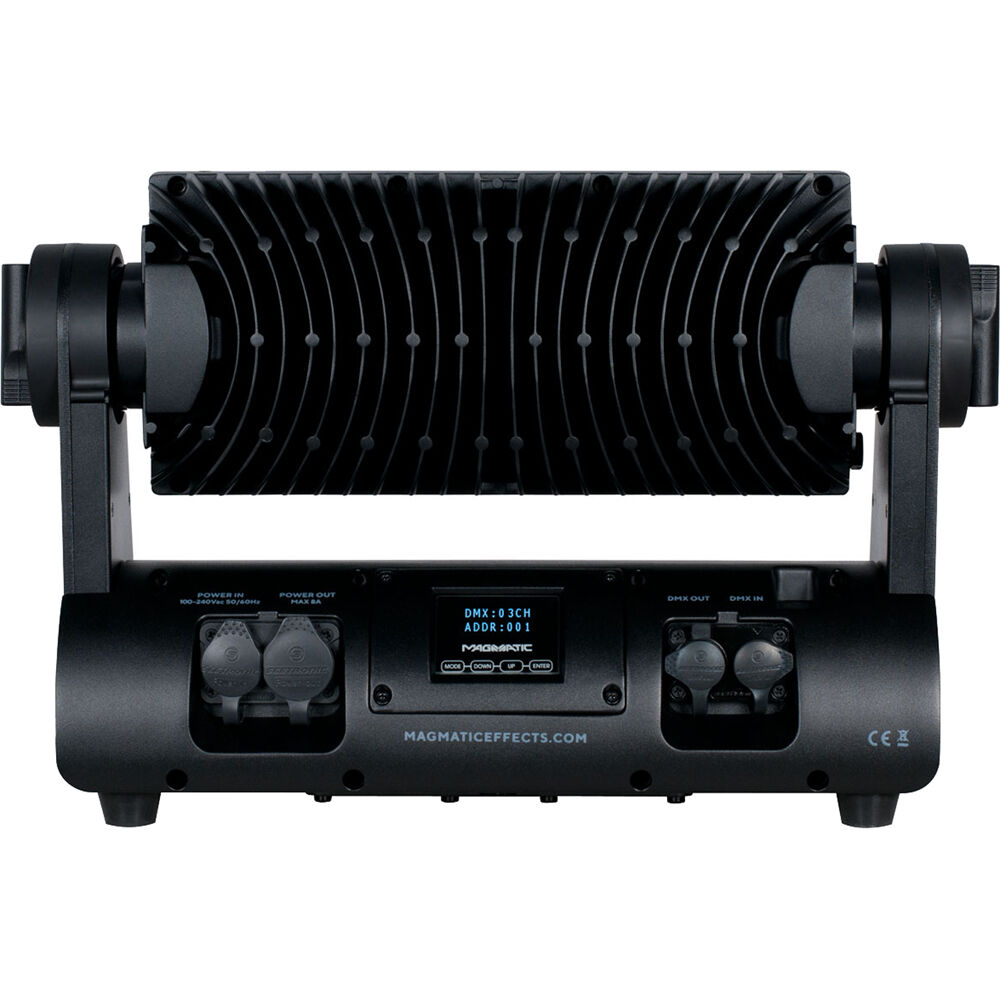

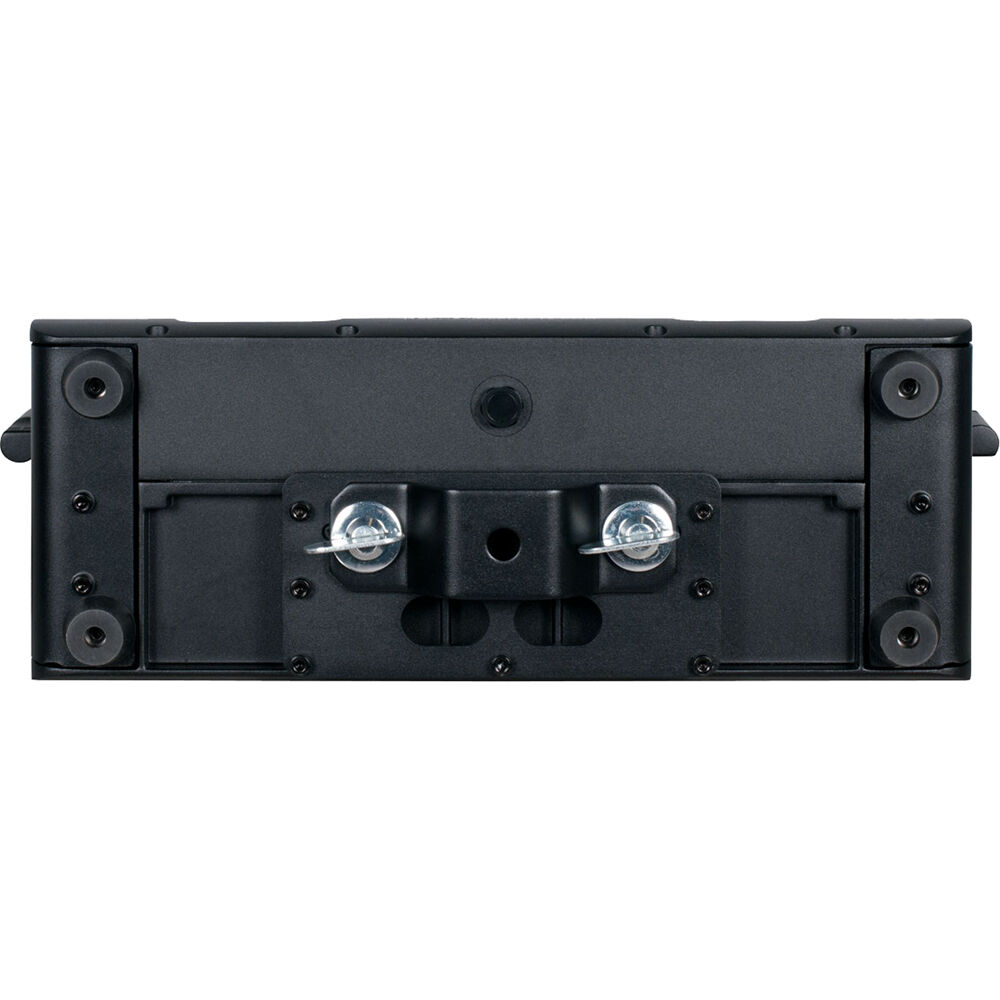

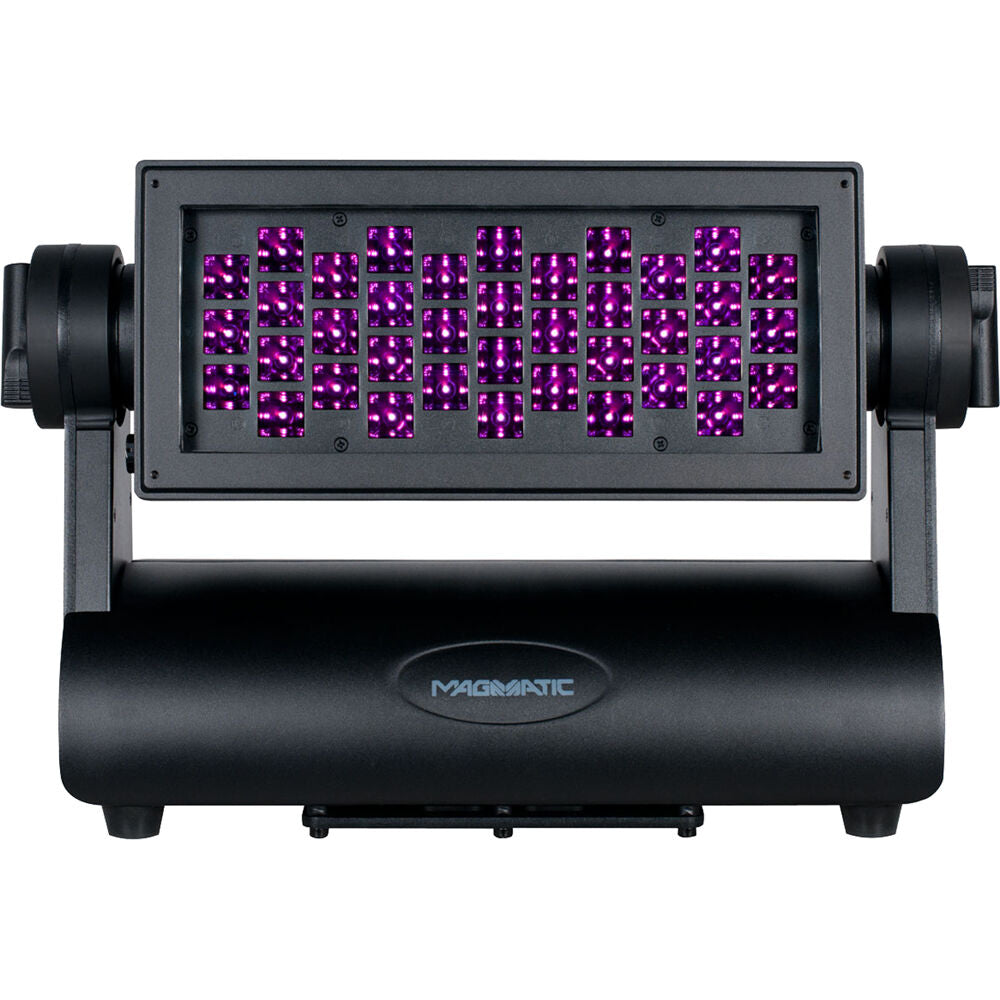

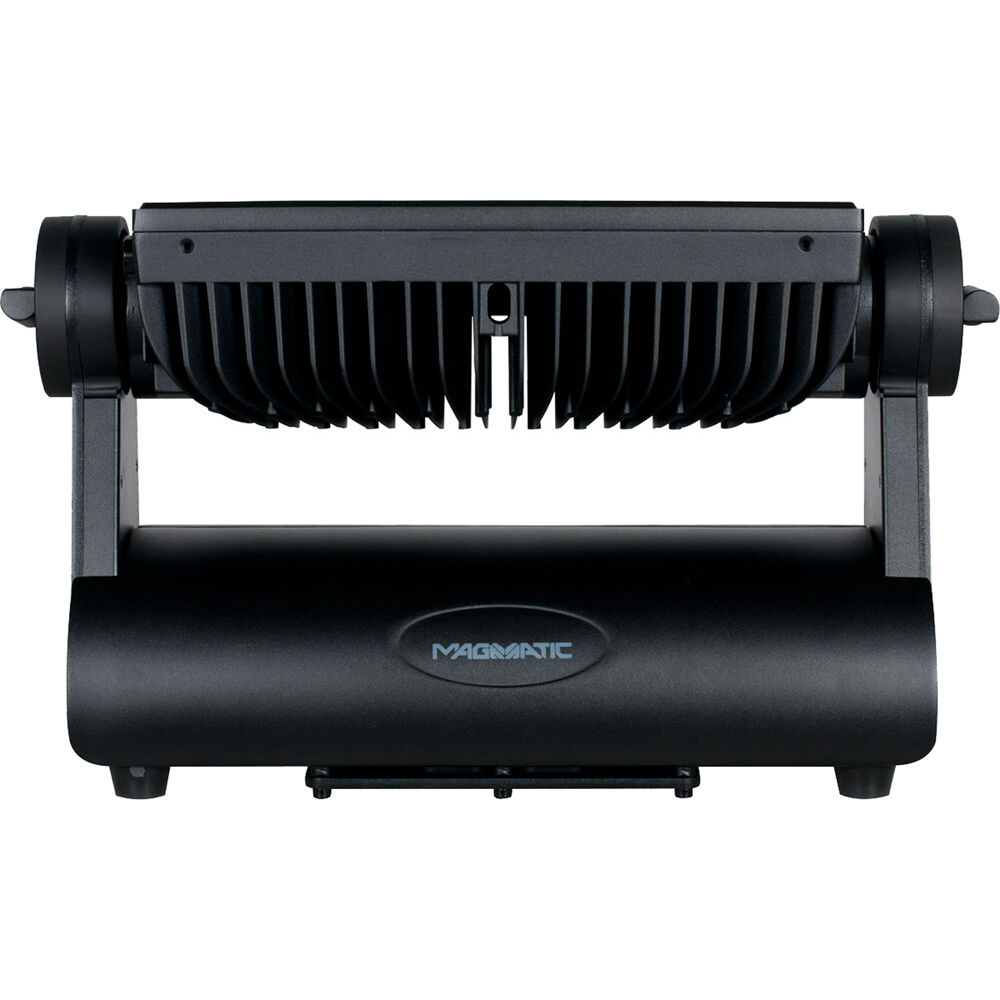

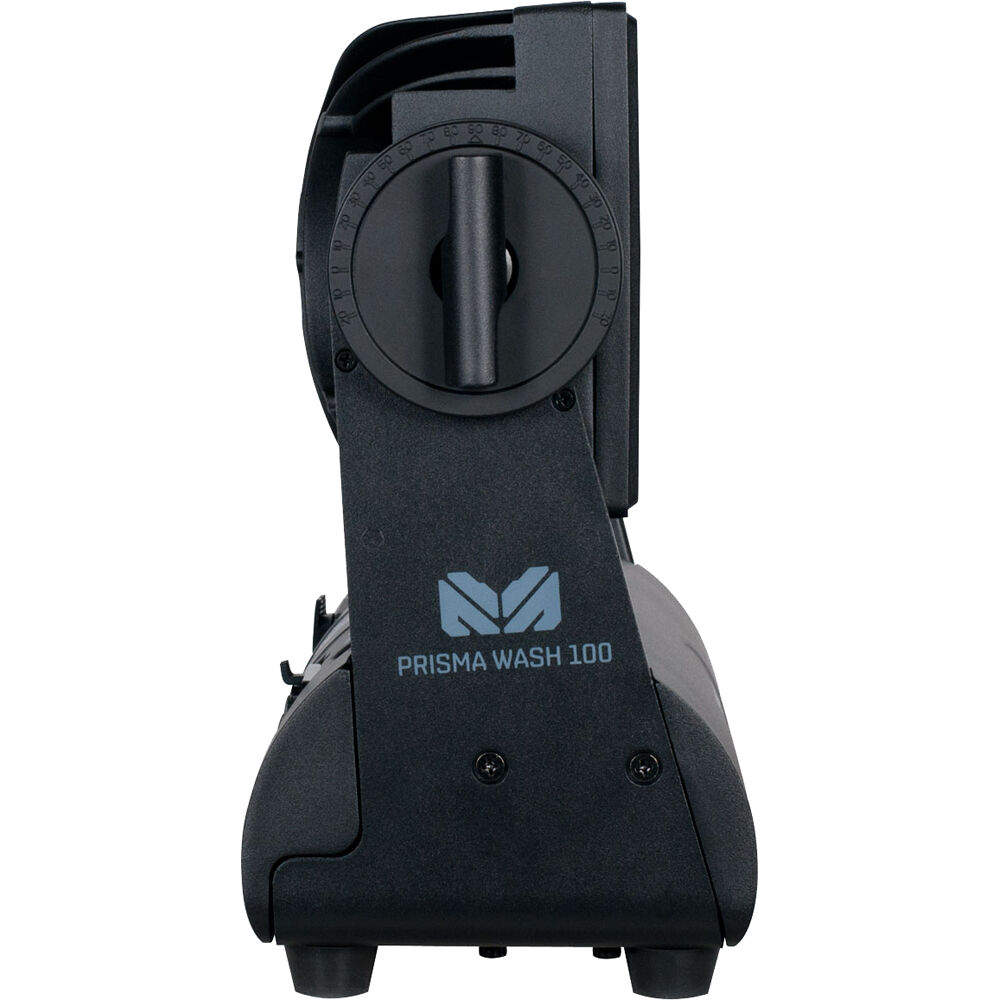

The Elation Professional Prisma Wash 100 UV Light is an exterior IP65-rated UV wash luminaire that produces 365nm peak true UV output with zero visible light. Features include a scoop LED reflector design that creates an impressive 90-degree wide beam angle, manual adjustable tilt positioning, versatile rigging options, a user-friendly digital 2.5" LCD touchscreen control panel, intuitive DMX-512 and RDM control, and IP-rated power and data in/out.
- IP65-rated exterior high-power UV wash luminaire
- Scoop LED reflector design
- 90-degree wide beam angle
- 365nm peak true UV wavelength
- Zero visible light output
- Optional black glass diffusion filter
Effects
- High-speed electronic strobe
- Variable dimming curve modes
Construction and Control
- Rugged IP65-rated aluminum housing
- Manual adjustable tilt position
- Multiple DMX channel modes
- Onboard 4-button touch control panel
- DMX-512 and RDM protocol support
- Locking 5-pin XLR connector in/out
- IP65 locking power connector in
- Wired digital communication network
UPC: 810008261040
In the Box
- Elation Professional Prisma Wash 100 UV Light
- Mounting Bracket
- Locking Power Cable
Elation Professional Wash 100 Specs
Light
| Fixture Type | LED Panel |
| Light Source | 38 x Ultraviolet LED - 2 W |
| Light Source Life Expectancy | 20,000 Hours |
| Colors | Ultraviolet |
| UV Wavelength | 365 nm |
| Beam Angle | 90° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | None |
| Dimming | 0 to 100% with 6 Dimmer Modes |
Performance
| Operating Modes | DMX |
| Macros / Programs | None |
| Effects | Strobe |
| Gobos | None |
| Refresh Rate | 900 Hz to 25,000 Hz |
Control
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 3 Mode(s): 2 / 4 / 6-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | None |
| Mobile App Compatible | No *As of September, 2022: Check with manufacturer for the most up-to-date compatibility |
Connectivity
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
Power
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Fuse | T 2 A 250 V |
| Power / Current Consumption | 83 W |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 104°F / 40°C |
Physical
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 17.2 x 11.3 x 5.8" / 43.7 x 28.7 x 14.7 cm |
| Weight | 18.5 lb / 8.4 kg |
