Description

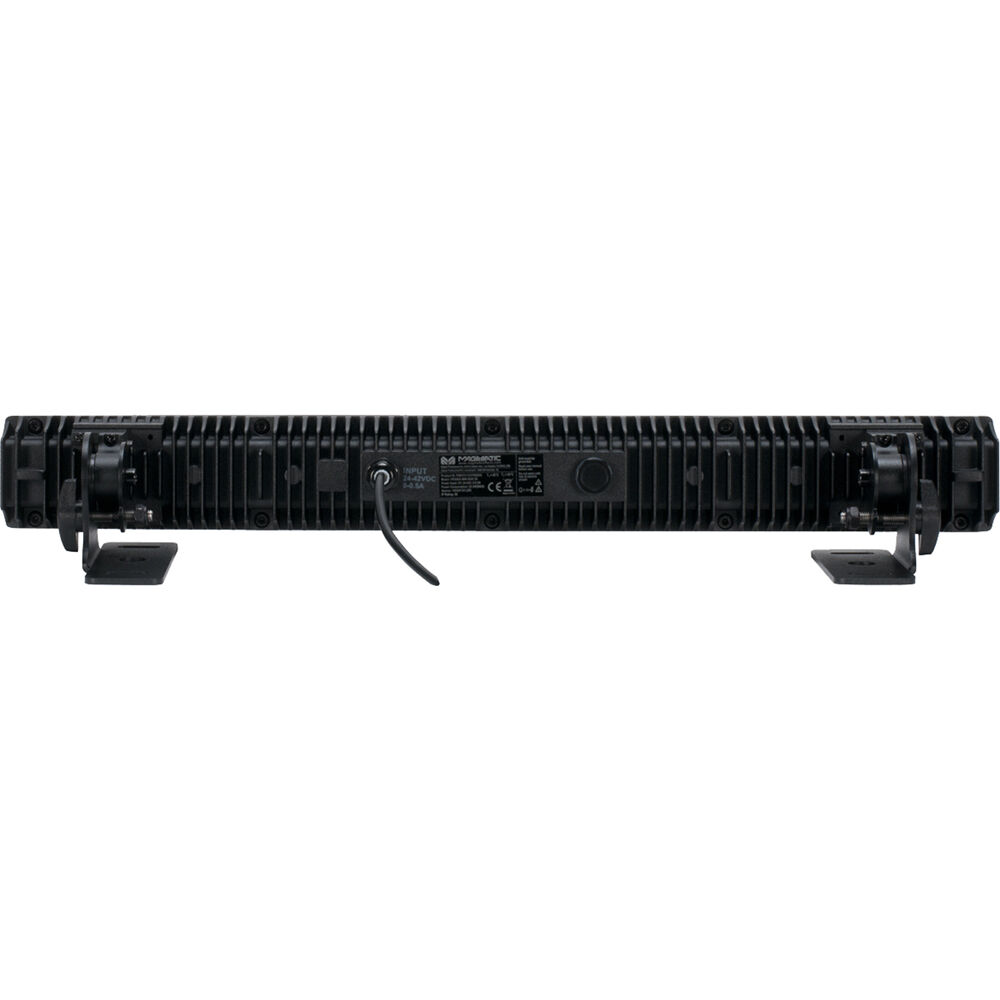

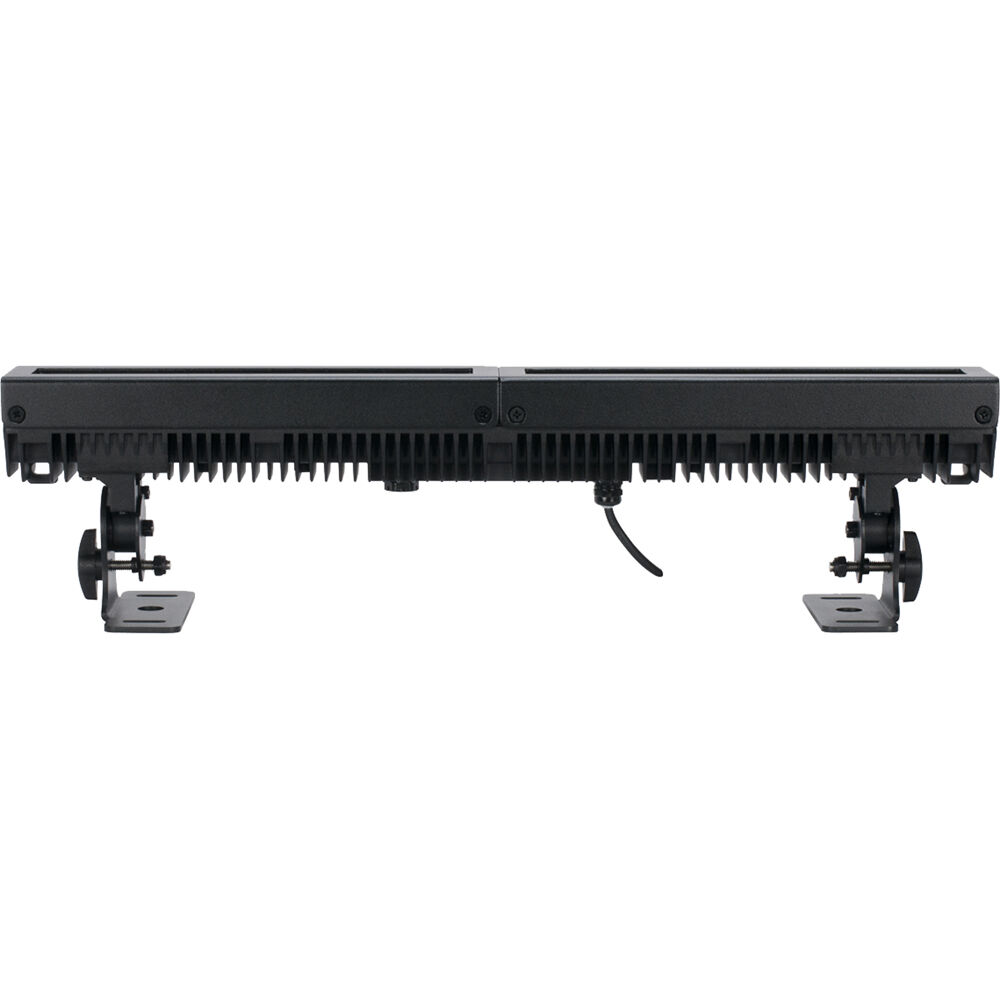

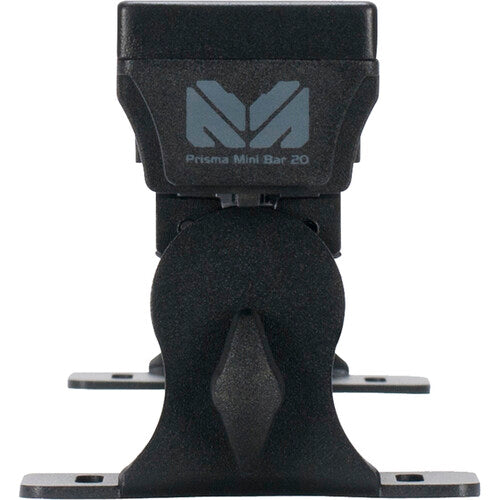

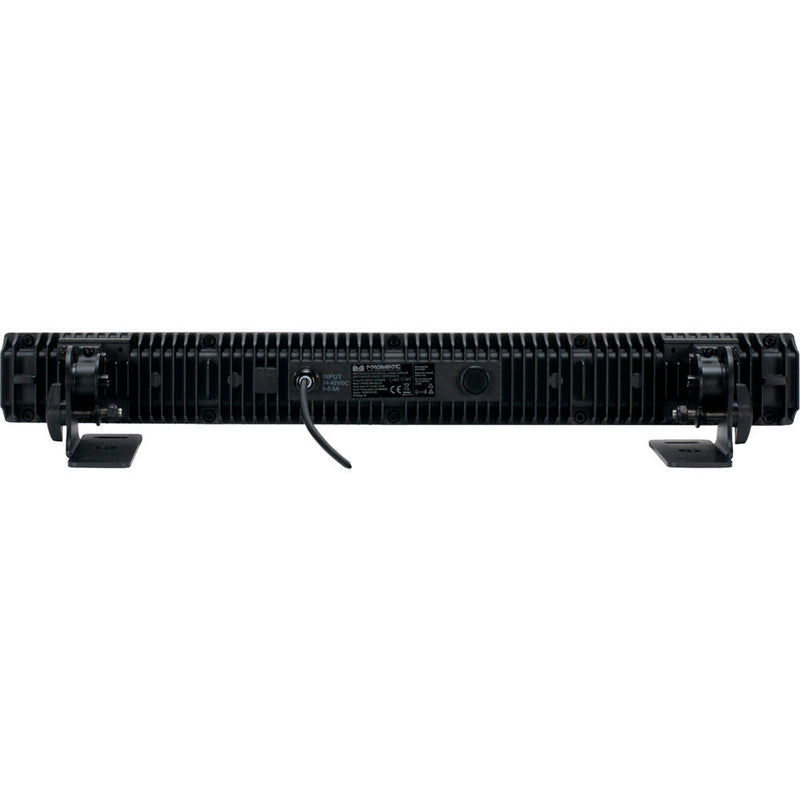

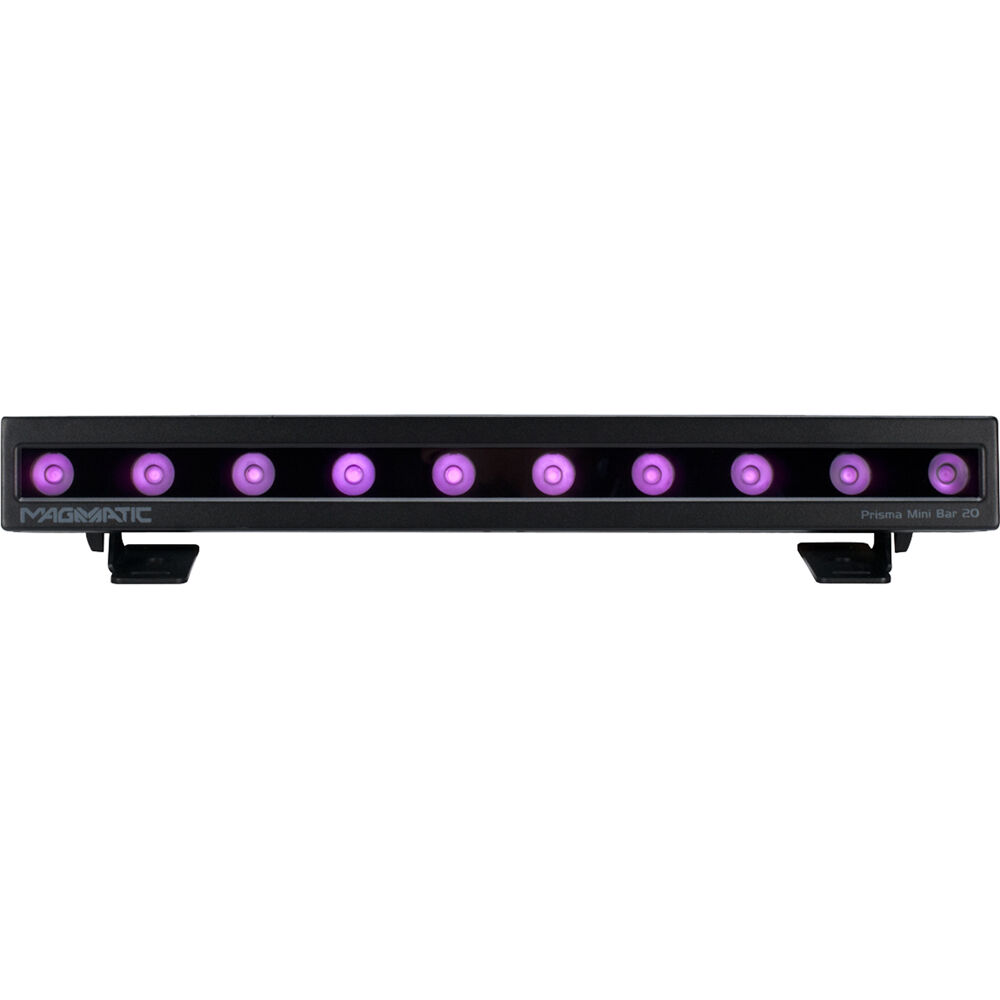

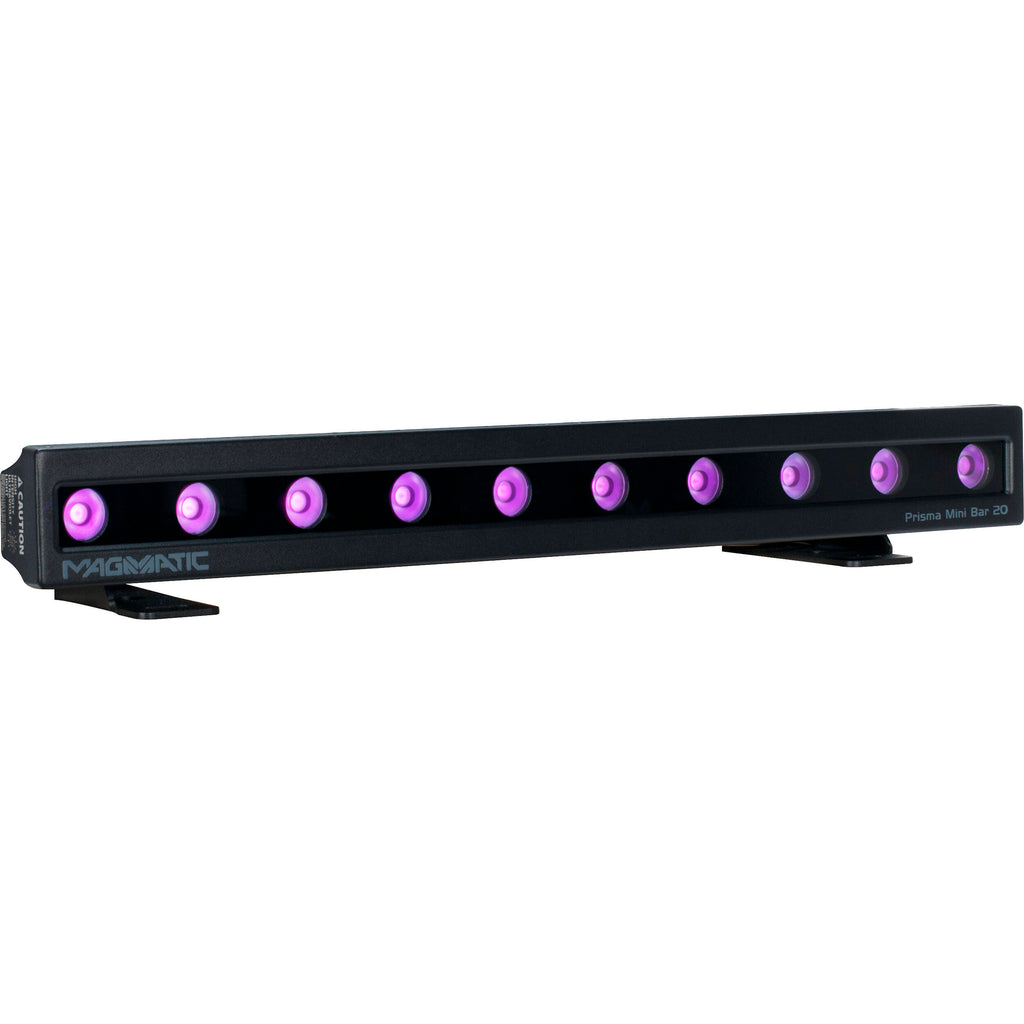

Elation Professional Mini Bar 20 Overview
The Elation Professional Prisma Mini Bar 20 is an IP65-rated exterior UV wash bar luminaire that produces 365nm peak true UV output with zero visible light, plus an impressive 20-degree beam angle. Powered by the optional Prisma Driver 8 or Prisma Driver 8IP, it features two adjustable mounting brackets, a durable aluminum housing, and a 9' 2-conductor, 14 AWG IP-rated power/data pigtail cable.
- IP65-rated exterior high-power UV wash bar luminaire
- 20-degree narrow beam angle
- 365nm True UV peak wavelength
- Zero visible light output
- IP-rated power/data pigtail cable attached
Source
- 10 3W high-power UV diode LEDs
- 20,000-hour average LED life
UPC: 810008261187
In the Box
- Elation Professional Prisma Mini Bar 20
- Phoenix Connector
- Positive Wire Tip Sheath
- Negative Wire Tip Sheath
Elation Professional Mini Bar 20 Specs
Light
| Fixture Type | Linear/Bar Light |
| Light Source | 10 x Ultraviolet LED - 3 W |
| Light Source Life Expectancy | 20,000 Hours |
| Colors | Ultraviolet |
| UV Wavelength | 365 nm |
| Beam Angle | 20° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Zoom Adjustment | None |
| Dimming | Electronic |
Performance
| Operating Modes | DMX |
| Macros / Programs | None |
| Effects | Strobe |
| Gobos | None |
Control
| Control Protocols | DMX512 |
| Display / Controls | None |
| Remote Control | None |
| Mobile App Compatible | No |
Connectivity
| I/O | None |
Power
| AC Power Connector | None |
| DC Input Power | 0 to 36.7 VDC |
| Power / Current Consumption | 24.3 W |
| Power Linking | None |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 14 to 113°F / -10 to 45°C |
Physical
| Mounting | Floor Base, Mounting Bracket |
| Included Accessories | None |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan |
| Dimensions | 18.9 x 4.2 x 3.9" / 48 x 10.7 x 9.9 cm |
| Weight | 4.2 lb / 1.9 kg |
