Description

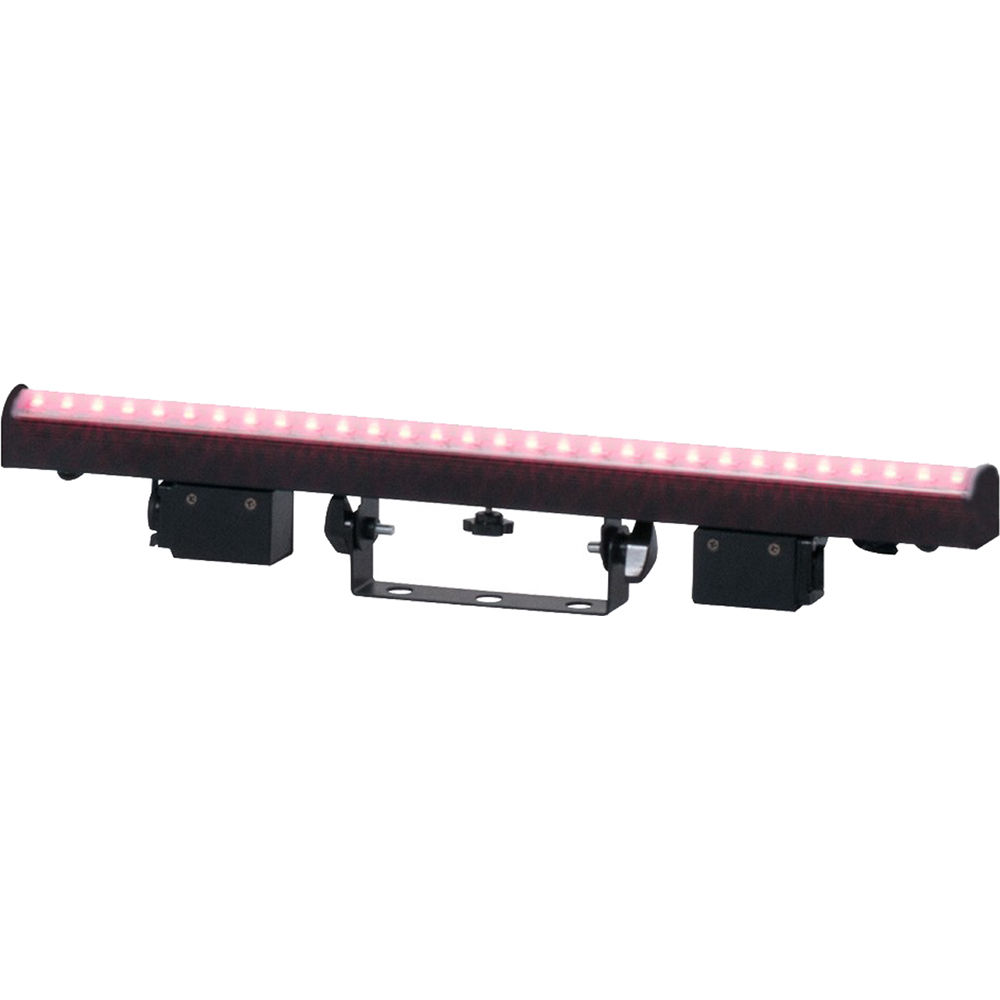

Elation Professional Bar 30IP Overview
Lighting designers and touring companies in need of a professional linear bar fixture will be impressed with the 1.6', IP65 outdoor-rated Elation Professional Pixel Bar 30IP, a pixel-mapping, RGB LED linear fixture designed for showing video and/or motion graphics in open-air events, music festivals, and more. It features 30 tri-color RGB (red, green, blue) SMD LEDs with a 16mm pixel pitch and a 120° beam angle, and is compatible with Art-Net, Kling-Net, and sACN control protocols.
The Pixel Bar 30IP comes with a set of square and rounded frost filters to help shape the light output of the fixture. A magnetic system on the end caps allows for connecting multiple bars together and ensures seamless end-to-end pixel spacing for smooth visuals. The unit is powered and controlled by the Pixel Driver 4000 processor (available separately) via a proprietary IP-rated combo cable (available separately), which supplies data and power.
- 1.6' pixel-mapping linear fixture with 30 tri-color RGB SMD LEDs
- For showing video and/or motion graphics
- Lightweight IP65-rated aluminum housing for use outdoors or in wet environments
- 16mm pixel pitch and 120° beam angle
- Includes square frost lens and rounded frost lens
- Flicker-free operation for video, broadcast TV, and film applications
- Magnetic end caps for seamless end-to-end pixel spacing
- Integrated adjustable mounting bracket and safety cable loop
- Powered and controlled via Pixel Driver 4000 processor (available separately)
- Control a maximum of 4080 pixels via Kling-Net protocol, and a maximum of 680 pixels via Art-Net and sACN protocols
- Requires proprietary IP-rated 4-pin combo cable to supply data and power (available separately)
In the Box
- Elation Professional Pixel Bar 30IP IP65 Pixel-Mapping RGB LED Linear Fixture (1.6')
- Square Frost Lens
- Rounded Frost Lens
- Limited 2-Year Manufacturer Warranty
Elation Professional Bar 30IP Specs
| Fixture Type | Linear/Bar Light |
| Light Source | 30 x Color LED (SMD) |
| Expected Lamp Life | 50,000 Hours |
| Colors | Red, Green, Blue |
| LED Distribution | 60 per 3.3' / 1 m |
| Photometrics | 133°: 1 fc / 12 Lux at 3.3' / 1 m (Full On) 0 fc / 3 Lux at 6.6' / 2 m (Full On) 0 fc / 1 Lux at 9.8' / 3 m (Full On) 0 fc / 1 Lux at 13.1' / 4 m (Full On) 0 fc / 0 Lux at 16.4' / 5 m (Full On) |
| Lumen Output | ? 46 Lumens (Output) |
| Beam Angle | 133° |
| Field Angle | 160° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Focus | Manual |
| Zoom Adjustment | None |
| Dimming | Electronic |
| Operating Modes | DMX |
| Macros / Programs | Auto-Program |
| Effects | Strobe |
| Gobos | None |
| Color Resolution | 8-Bit per Color / 24-Bit per Pixel |
| Control Protocols | Art-Net, Kling-Net, sACN |
| DMX Channel Modes | 90-Channel |
| Display / Controls | None |
| Remote Control | None |
| Inputs/Outputs | 1 x Proprietary 4-Pin Data/Power Input 1 x Proprietary 4-Pin Data/Power Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: Proprietary Output: Proprietary |
| Fuse | None |
| Power / Current Consumption | 6 W |
| Environmental Protection | Advertised as Weather Resistant *Manufacturer Testing: IP65 |
| Mounting | Mounting Bracket |
| Exterior Color | Black |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 75.9 x 3.3 x 1.3" / 1927.9 x 83.8 x 33 mm |
| Weight | 1.5 lb / 0.7 kg |
