Description
Elation Professional SFX Overview
- 1Description
- 2Features
- 3Source
- 4Color
- 5Gobos
- 6Effects
- 7Control / Connections

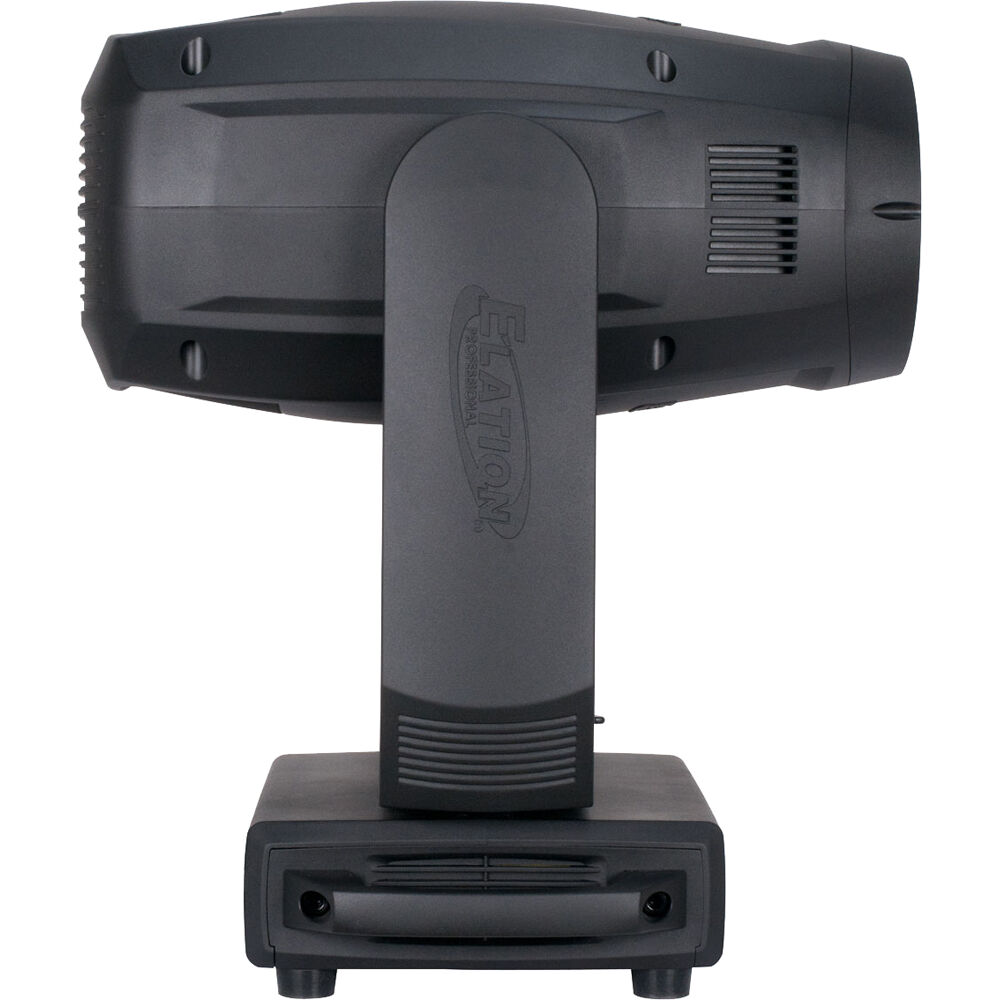

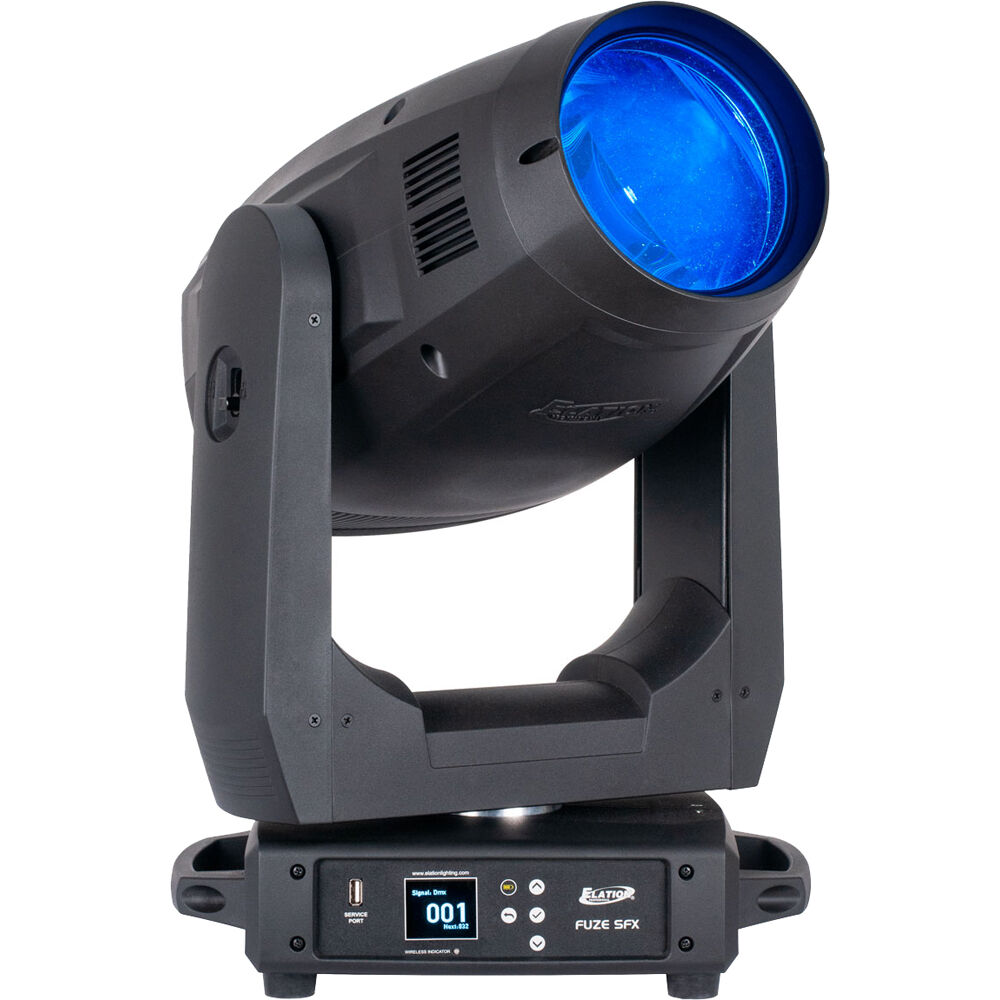

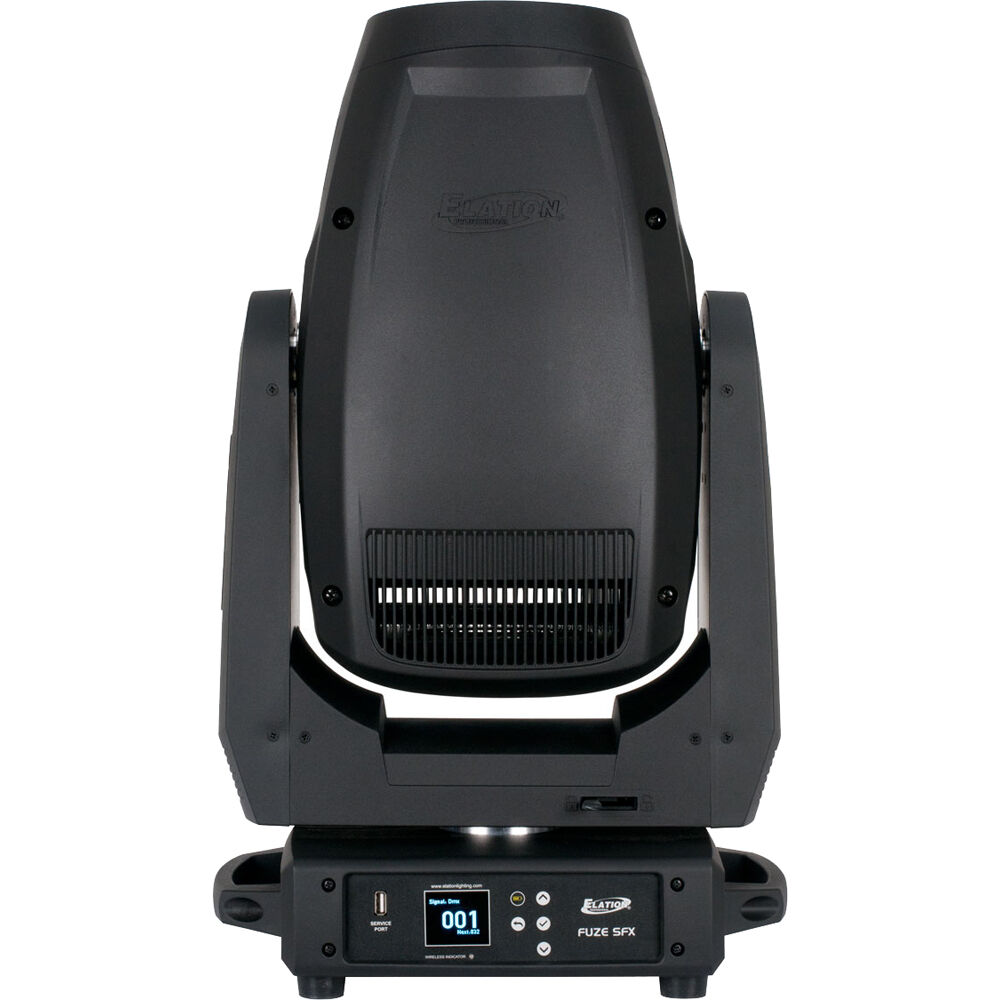

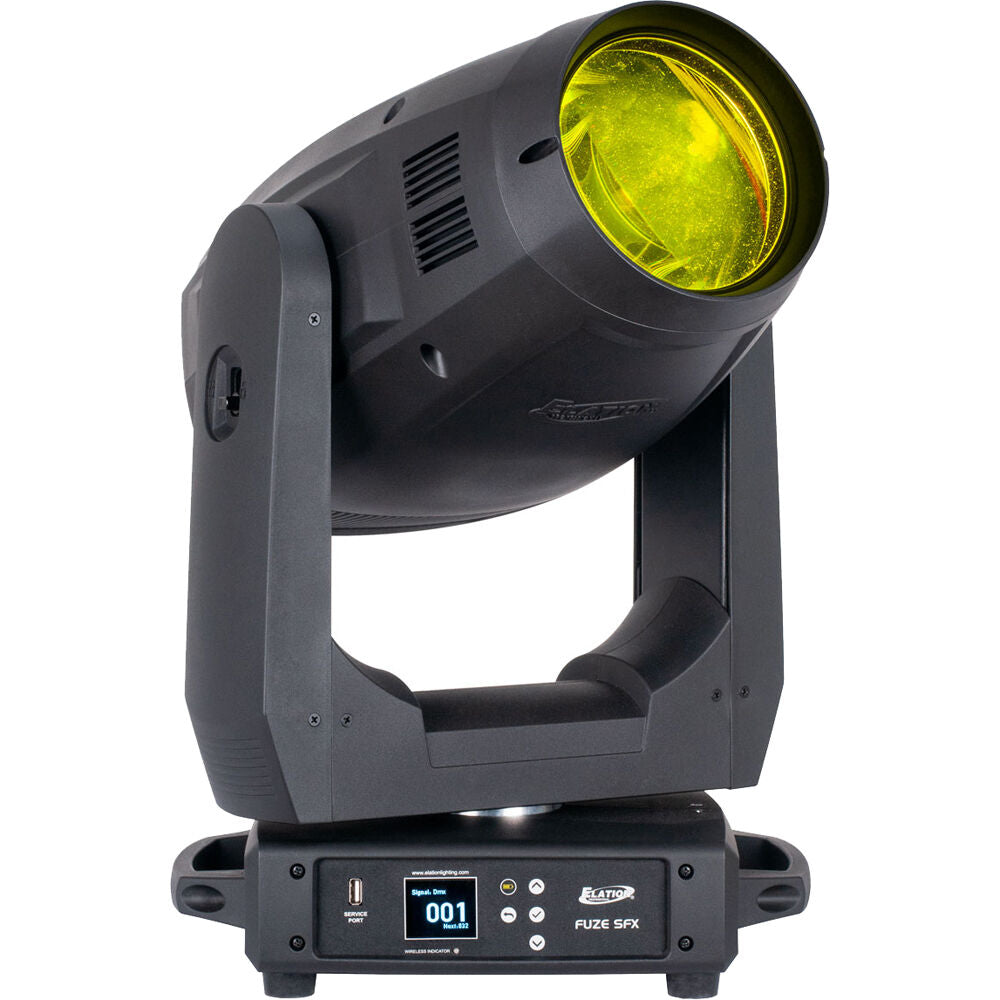

This black Elation Professional Fuze SFX Spot Fixture is a new concept LED Spot FX fixture designed for a variety of applications requiring a compact and powerful multipurpose luminaire. The SFX is capable of projecting tight beams to wide washes using a highly efficient optical design while providing over 12,000 lumens of output from its 300W white LED engine. Housing 18 carefully designed gobos and a 4.5 to 38° zoom, the FUZE SFX can create stunning mid-air FX as easily as precise image projections.
The SFX allows for even stage washes utilizing its variable frost filter while a wide array of beautiful colors is possible from a seamless CMY color-mixing system plus a color wheel. Dual independent rotating and overlaying prisms plus a fast iris round out the comprehensive feature set. A truly remarkable compact powerhouse for any application, the FUZE SFX is sure to create amazing effects, outstanding projections, and beautiful bright washes on any stage.
- 12,000 total lumen fixture output
- Spot and effects rixture
- Zoom range from 4.5 to 38°
- Variable CMY and 7-position color wheel
- High CRI and CTO filter
- 8 rotating and 10 fixed gobos
- Dual independent prisms for layering
- Motorized iris
- Variable wash frost filter
- 300W 6600K Bright White LED engine
- 20,000-hour average LED life
- CMY variable color mix
- 7-position color wheel
- High CRI filter, CRI 84
- CTO filter, 3200K, CRI 77
- 2 gobo wheels
- Wheel #1 with 8 rotating/interchangeable glass gobos
- Wheel #2 with 10 static gobos
- Motorized zoom
- Remote focus
- Variable frost filter
- Dual independent prisms (6 facet linear and 6 facet round)
- Motorized iris
- Variable 16-bit dimming curve modes
- High-speed electronic shutter and strobe
- 31 DMX channels
- 16-bit pan, tilt, and dimming control
- DMX adjustable LED frequency
- DMX, RDM, E-FLY Wireless, Art-Net, sACN protocol support
- 4-button touch control panel
- Full-color 180° reversible LCD menu display
- Locking 5-pin XLR connector in/out
- Locking RJ45 Ethernet connector in/out
- IP65 locking power connector in/out
- USB connection (firmware updates)
- Wired digital communication network
In the Box
- Elation Professional Fuze SFX Spot Fixture (300W, Black)
- 2 x Omega Bracket
- Locking Power Cable
- Description
- Features
- Source
- Color
- Gobos
- Effects
- Control / Connections
Elation Professional SFX Specs
| Fixture Type | Moving Head |
| Light Source | White LED - 300 W |
| Light Source Life Expectancy | 20,000 Hours |
| Colors | Cyan Magenta Yellow CTO (Color Temperature Orange) Red Green Orange Pink Blue |
| Photometrics | 38°: 3215.5 fc / 34,612 Lux at 3.3' / 1 m 128.6 fc / 1384 Lux at 16.4' / 5 m 32.1 fc / 346 Lux at 32.8' / 10 m |
| Color Temperature | 6600K |
| Lumen Output | 12,135 Lumens |
| Beam Angle | 5 to 38° |
| Field Angle | 5 to 42° |
| Shutter / Strobe | Electronic |
| Iris | Yes, Electronic |
| Focus | Motorized |
| Zoom Adjustment | Motorized, 5 to 38° |
| Dimming | 16-Bit 0 to 100% with 6 Dimmer Modes |
| Prism | 6-Facet Linear 6-Facet Circular |
| Operating Modes | DMX, Master/Slave, Program |
| Macros / Programs | 4 x Internal Program |
| Effects | Strobe (Variable Speed) |
| Gobos | 8 x Removable Glass Gobo 10 x Fixed Gobo |
| Gobo Size | Glass Gobo: Outer Diameter: 0.6" / 16.4 mm Max Image Size: 0.5" / 12.5 mm |
| Color Accuracy Index | CRI: 68 |
| Refresh Rate | 900 Hz to 1500 Hz |
| Pan/Tilt Inversion | Yes |
| Movement Resolution | 16-Bit |
| Control Protocols | DMX512, W-DMX, RDM, Art-Net, sACN |
| DMX Channel Modes | 31-Channel |
| Display / Controls | LCD / 4-Button |
| Remote Control | None |
| App Compatible | No |
| Inputs/Outputs | 1 x XLR 5-Pin DMX Input 1 x XLR 3-Pin DMX Output 1 x RJ45 Data Input 1 x RJ45 Data Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON TRUE1 Output: 1 x powerCON TRUE1 |
| Power / Current Consumption | 432 W |
| IP Rating | IP20 |
| Operating Temperature | 57 to 235°F / 14 to 113°C |
| Mounting | Floor Base, Omega Bracket |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Fan (Variable Speed) |
| Dimensions | 23.4 x 14.3 x 9.2" / 59.4 x 36.3 x 23.4 cm |
| Weight | 46.3 lb / 21 kg |
