Description
Elation Professional 16IP DTW Overview
- 1Description
- 2Features
- 3Rigging Options
- 4Effects
- 5Control and Connections

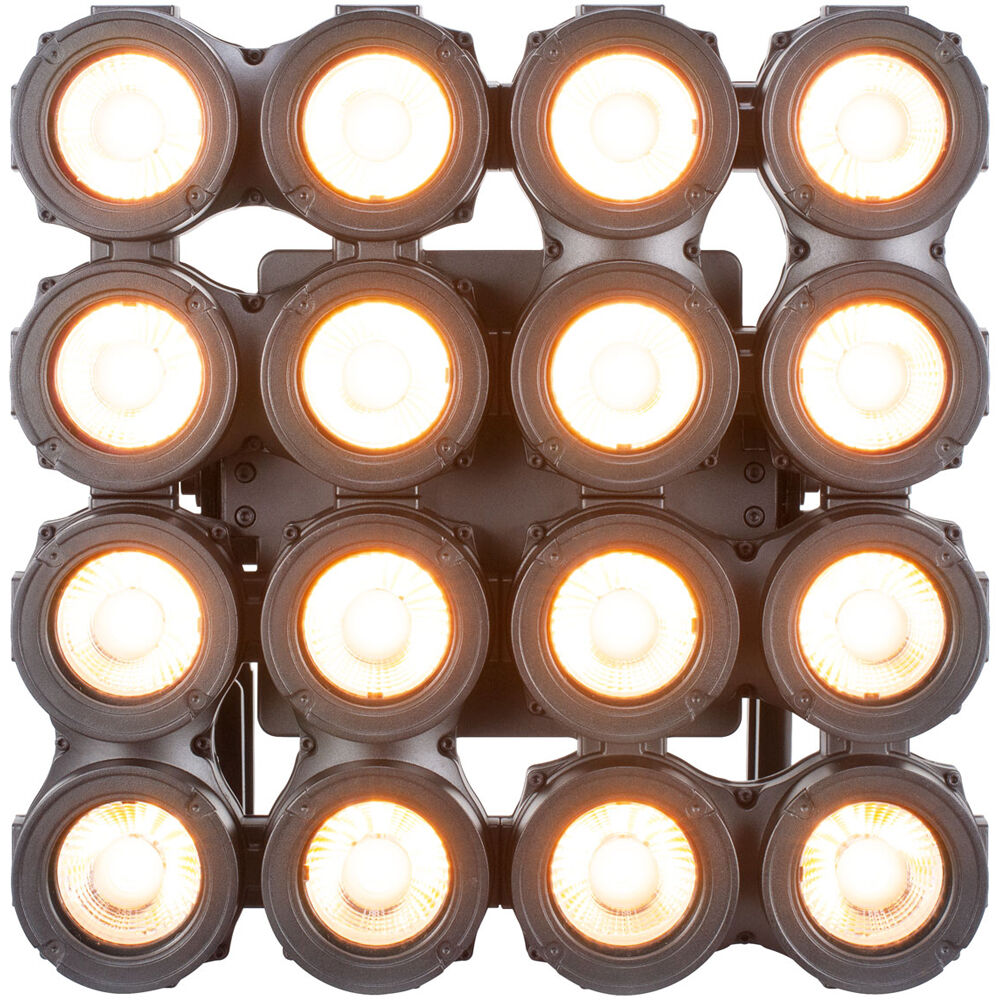

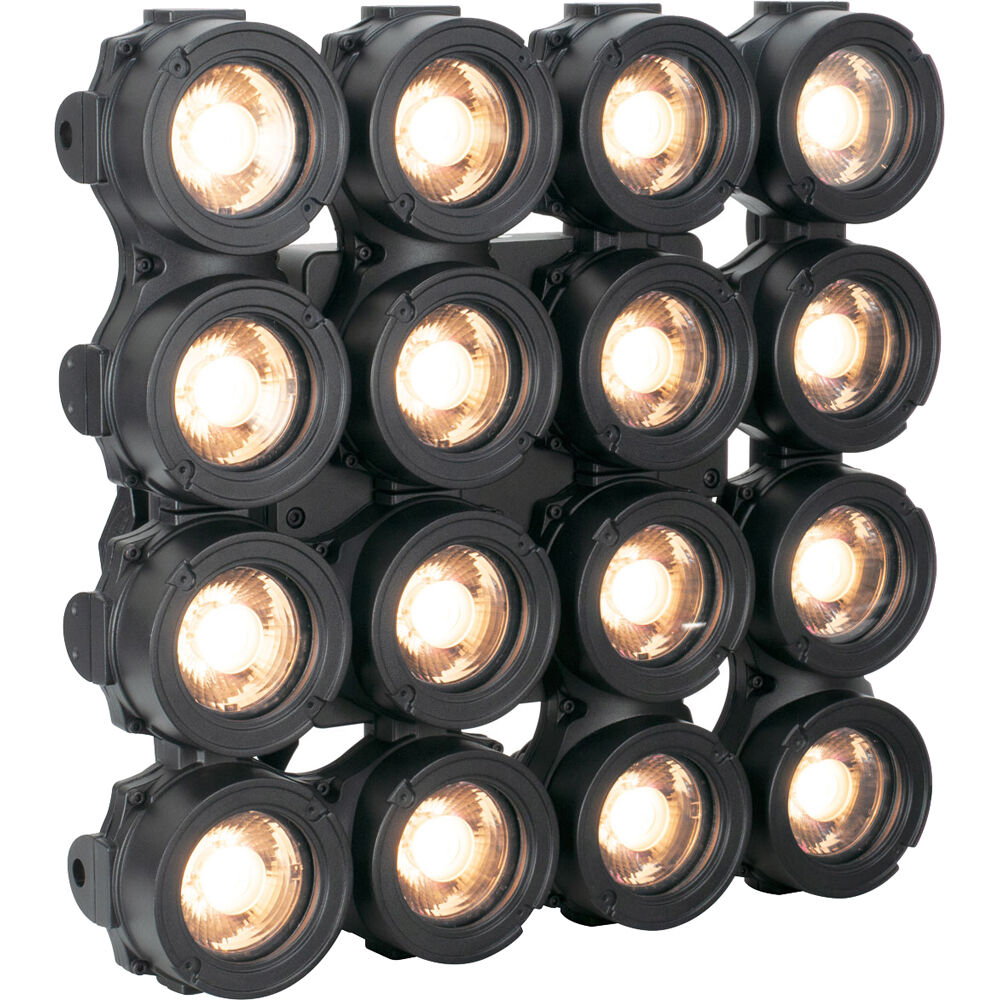

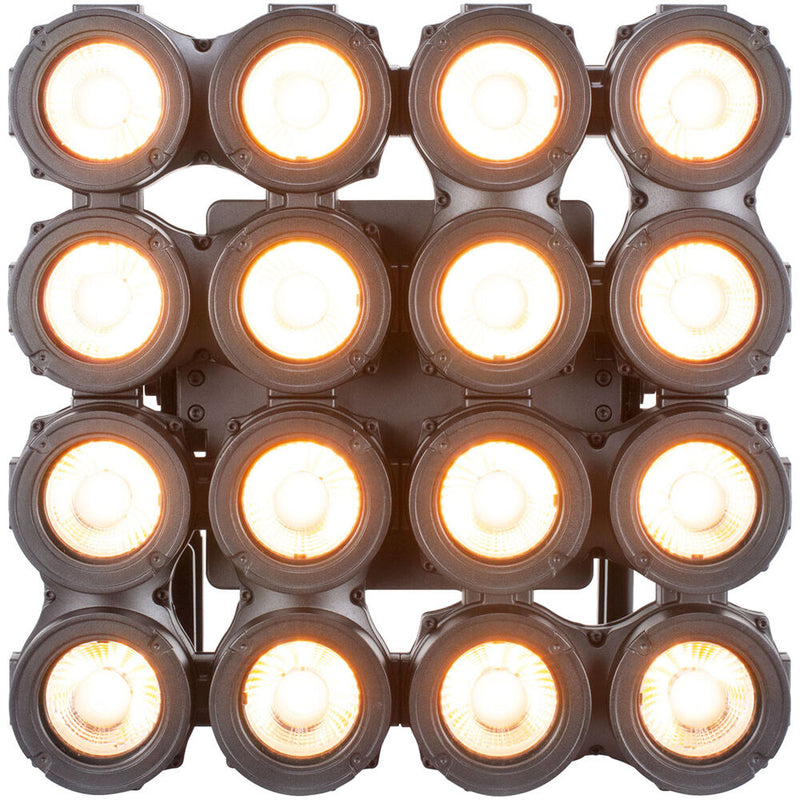

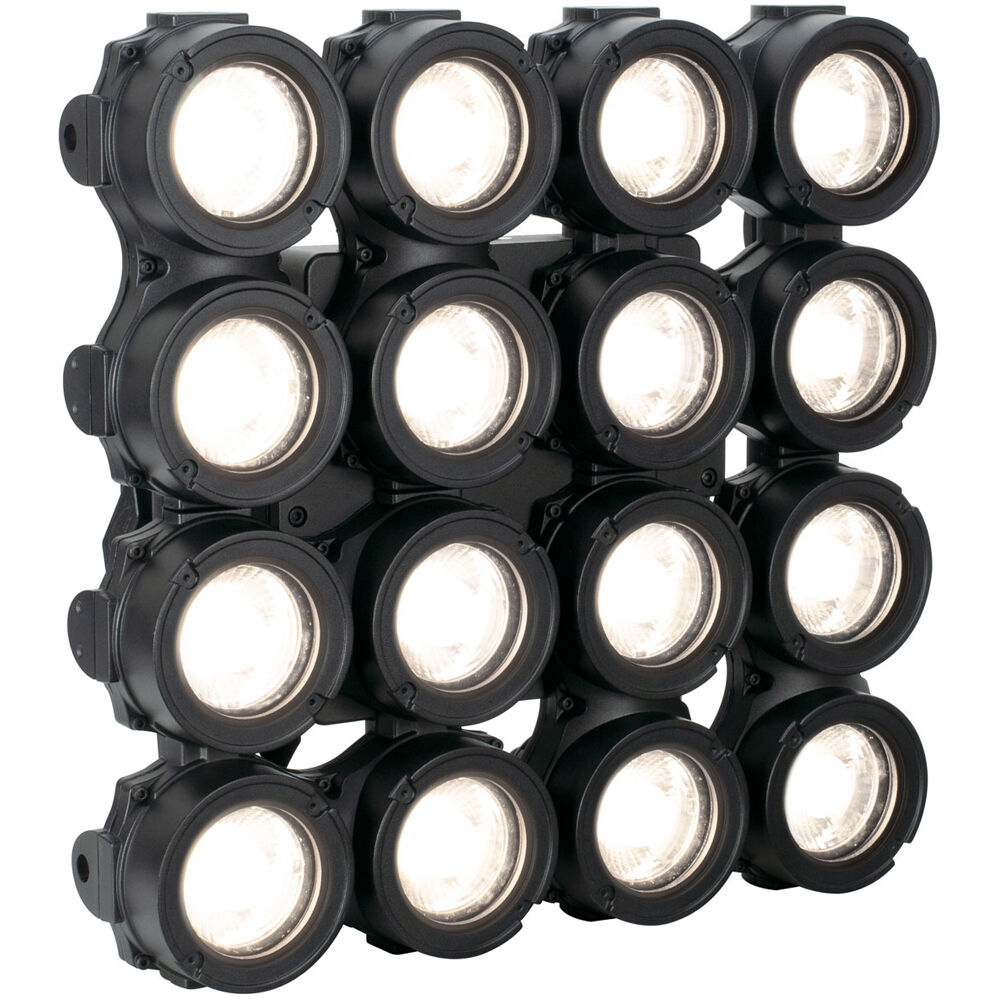

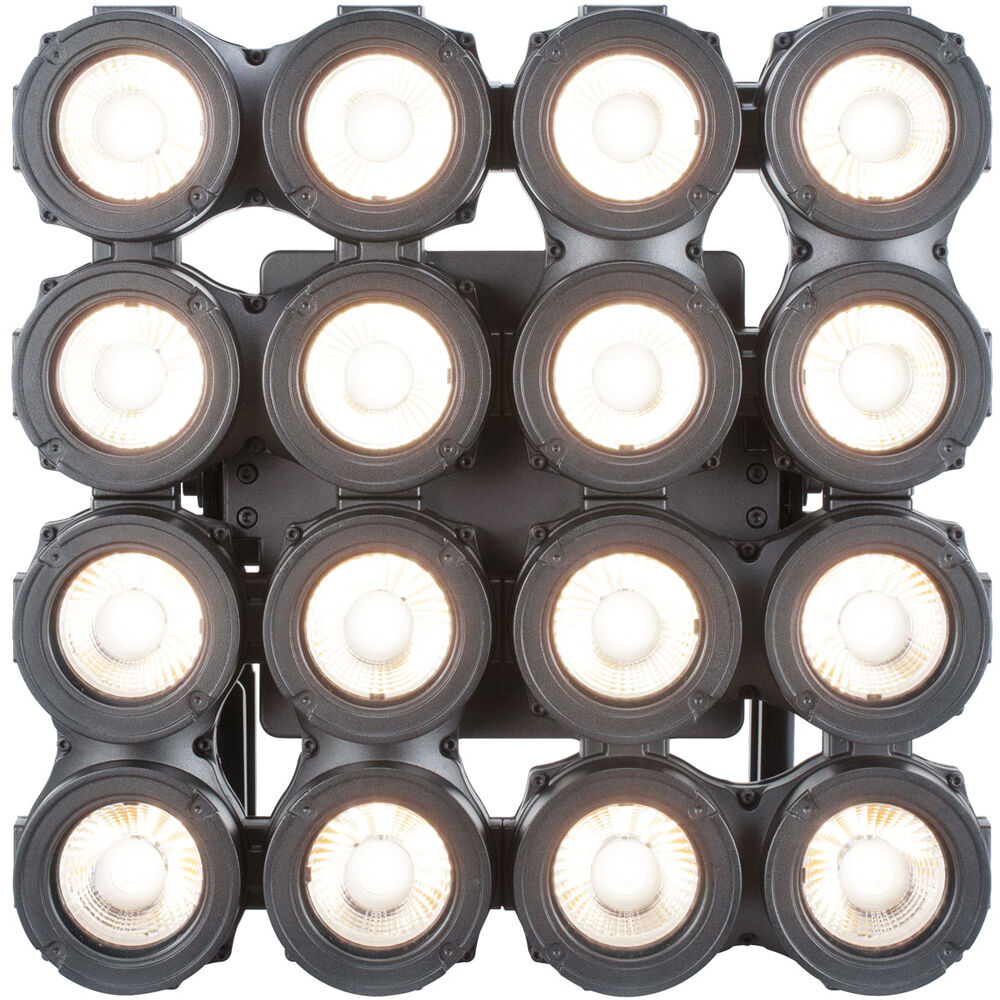

The CUEPIX 16IP DTW from Elation Professional is a powerful IP65 outdoor-rated effect panel luminaire that features a 4x4 array of 16x40W DTW COB LEDs, full pixel control, 16-bit dimming, variable dimming curve modes, high-speed electronic shutter and strobe, adjustable LED refresh rate and gamma brightness for flicker-free operation for TV and FILM, no fans for noise-sensitive applications, DMX, RDM (Remote Device Management), Kling-NET, and Art-NET protocol support, IP65 rated locking 5pin XLR DMX, RJ45 ethernet, and power in/out connections, full color 180° reversible LCD control panel, and a multi-voltage universal autoswitching power supply (100-240V).
Features
- Versatile IP65 outdoor-rated effect panel luminaire
- 4x4 matrix array of 16x40W DTW COB LEDs

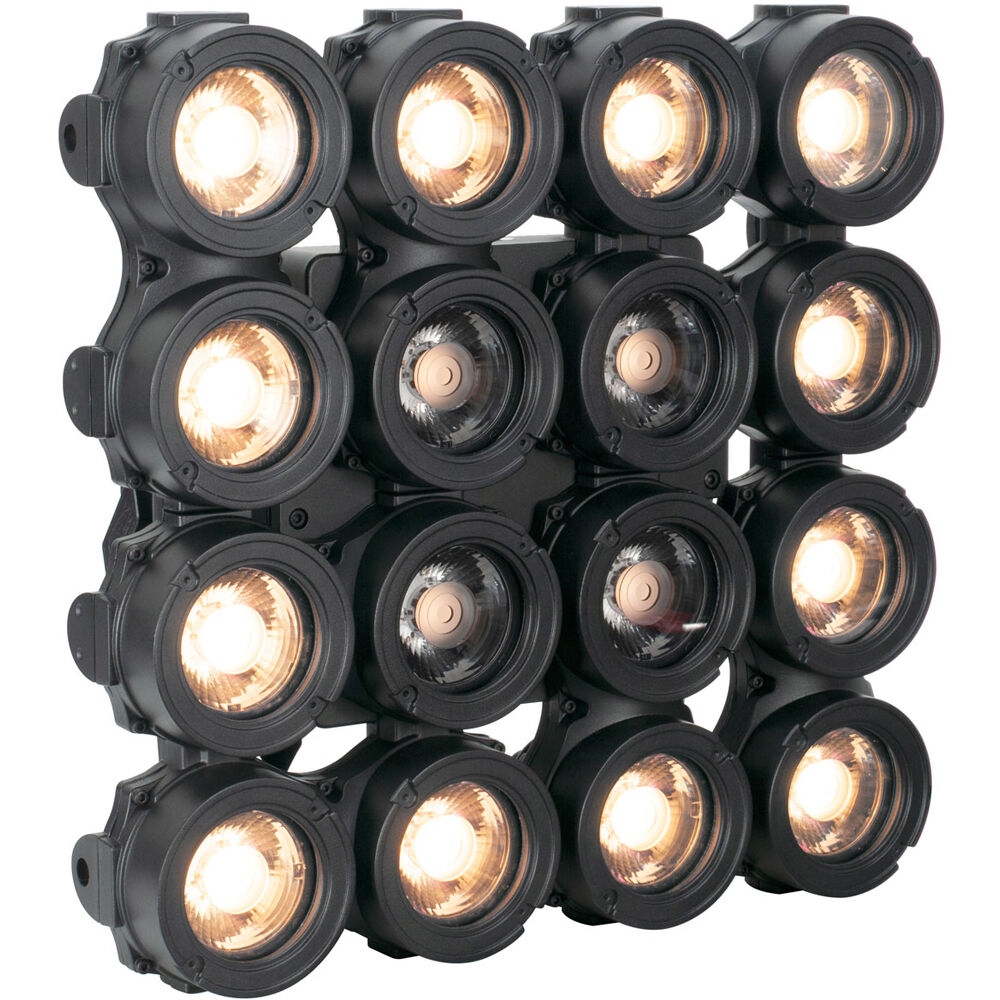

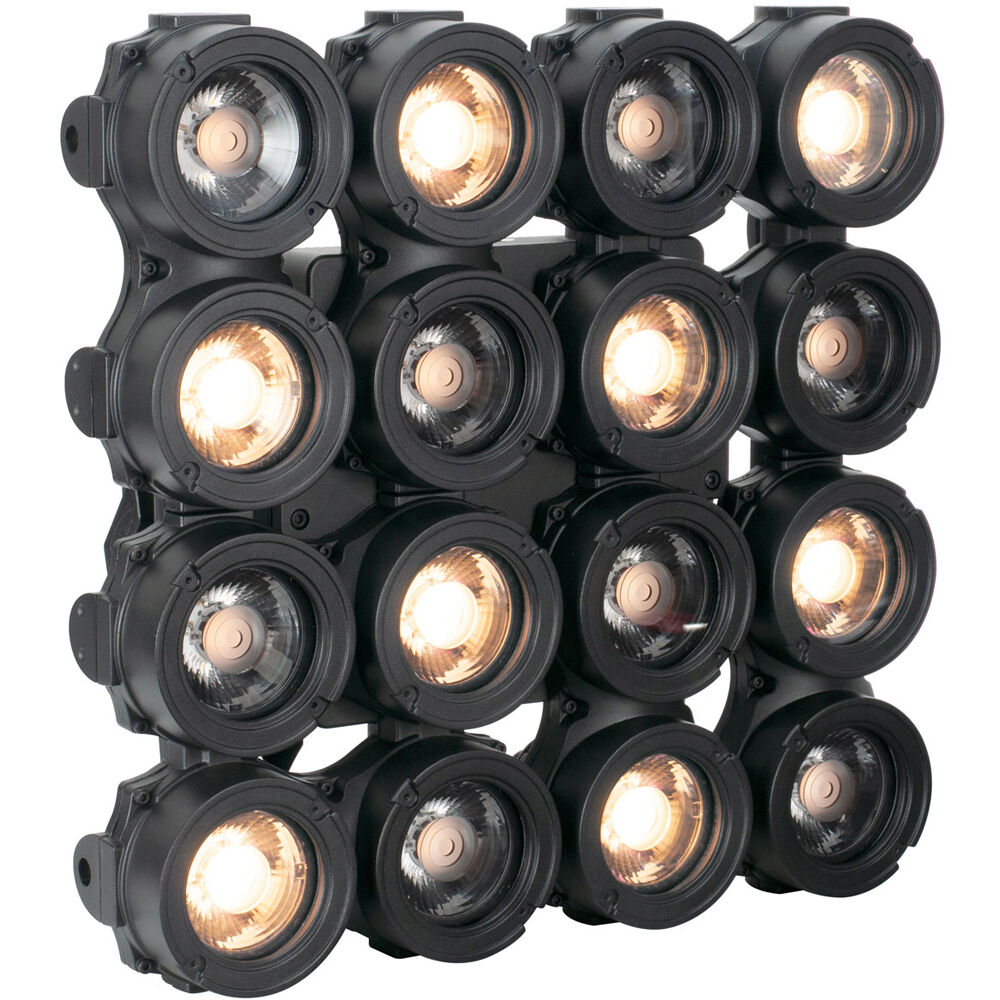

- Full-pixel control with pixel flip modes
- 16-bit dimming and variable dimming curve modes
- Convection cooled; no fans for noise-sensitive applications
- 90° adjustable and fixed yoke brackets with 3-position holes
- Integrated fixture-to-fixture interlocking alignment pins/locks
- Optional 1/4 turn Omega brackets available
Rigging Options
Versatile rigging options include 90° adjustable and fixed yoke brackets with 3-position mounting holes, and integrated alignment pins and interlocks for multiple panel matrix designs.
Effects
- Full pixel control with pixel flip modes
- High-speed electronic shutter and strobe
- 16-bit dimming and variable dimming curve modes
Control and Connections
- 7 DMX channel modes (64 total channels)
- Adjustable refresh rate (900-25,000 Hz)
- 4-button OLED menu control display
- DMX, RDM, and Art-Net protocol support
- IP65 locking 5-pin XLR DMX, RJ45 Ethernet, power in/out
- Fixture-to-fixture interlocking alignment pins/locks
- Wired digital communication network
UPC: 810008260197
In the Box
- Elation Professional Cuepix 16IP DTW
- Power Plug
Table of Contents
- Description
- Features
- Rigging Options
- Effects
- Control and Connections
Elation Professional 16IP DTW Specs
Light
| Fixture Type | Special Design |
| Light Source | 16 x White LED (COB) - 40 W |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Warm White |
| Pixel Configuration | 16 x Zones |
| Photometrics | 179.2 fc / 1929 Lux at 16.4' / 5 m |
| Lumen Output | 10,000 Lumens |
| Beam Angle | 22.6° |
| Field Angle | 41.3° |
| Shutter / Strobe | Electronic |
| Iris | No |
| Zoom Adjustment | None |
| Dimming | 16-Bit Electronic |
Performance
| Operating Modes | DMX |
| Macros / Programs | None |
| Effects | Strobe |
| Gobos | None |
| Refresh Rate | 900 Hz to 25,000 Hz (Adjustable) |
Control
| Control Protocols | DMX512, RDM, Art-Net, sACN |
| DMX Channel Modes | 7 Mode(s): 64-Channel |
| Display / Controls | OLED / 4-Button |
| Remote Control | None |
| App Compatible | No |
Connectivity
| Inputs/Outputs | 1 x RJ45 Network Input 1 x RJ45 Network Output 1 x XLR 5-Pin DMX Input 1 x XLR 5-Pin DMX Output |
Power
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Not Specified by Manufacturer |
| Power / Current Consumption | 400 W |
Environmental
| IP Rating | IP65 |
| Operating Temperature | 4 to 113°F / -15 to 45°C |
Physical
| Mounting | Single Yoke Only |
| Included Accessories | 1 x Power Cable |
| Duty Cycle | None |
| Exterior Color | Black |
| Cooling | Convection |
| Certifications | CE, cETLus *as per Manufacturer |
| Dimensions | 17.3 x 17.3 x 8.1" / 43.9 x 43.9 x 20.6 cm |
| Weight | 33 lb / 15 kg |
