Description
CHAUVET PROFESSIONAL Reve E-3 IP Overview

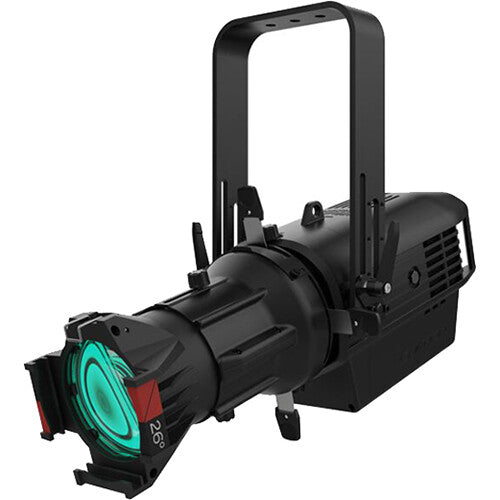

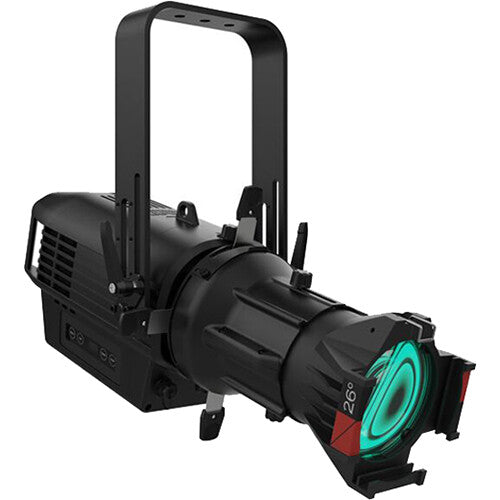

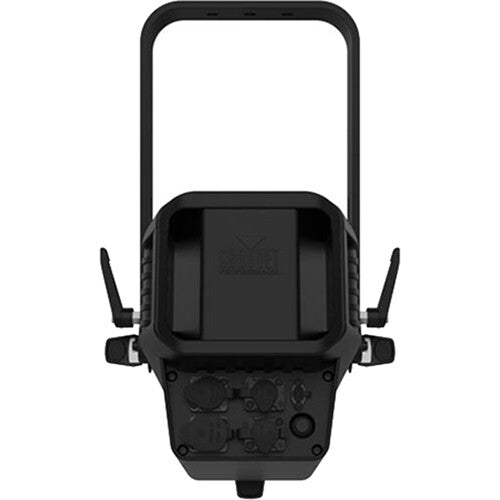

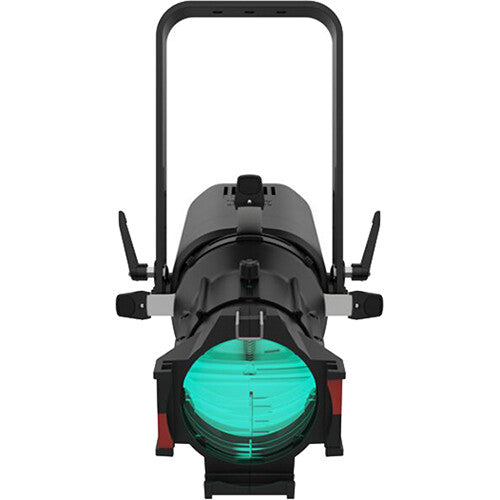

Lighting designers looking for a bright ellipsoidal fixture with multicolor LEDs and tunable whites will be impressed with the Ovation Rêve E-3 IP Multi-Color LED Ellipsoidal Fixture from CHAUVET PROFESSIONAL, a full-spectrum LED ERS-style lighting fixture for theater, film, and broadcast production. This model is fully IP67 rated, allowing use indoors or outdoors in all types of weather.
With color-temperatures presets ranging from 2800 to 8000K, the Ovation Rêve E-3 maintains remarkable brightness and a high quality of light with an emulated redshift for a tungsten feel. Other notable features include several dimming curves, a silent Fan Off mode, and an adjustable, low-clearance yoke for difficult installations.
The Ovation Rêve E-3 can be controlled via DMX and RDM, with nine personalities and nine channels (1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, HSV). The fixture includes power-thru via Seetronic PowerCon connectors. A PowerCon power cord, Ovation metal gobo holder, and a soft-focus filter are included.
Note:
Required Accessories: Lens Tube: 5, 10, 14, 19, 26, 36, 50, 15-30, and 25-50°, all sold separately
Benefits
- Full-spectrum LED ERS-style lighting fixture for theatre, film, and production
- Fully IP65 rated for seasonal use indoors or out
- Linear color-temperature presets from 2800 to 8000K with high CRI and CQS
- Virtual color wheel color matched to popular gel colors
- ±Green adjustment and emulated redshift via DMX or onboard control
- RDM (Remote Device Management) for added flexibility
- Adjustable PWM (pulse width modulation) to avoid flickering on camera
- Virtually silent operation for use in studio, film, and theatre applications
- Ultrasmooth 16-bit dimming curves and speeds to complement any lighting scheme
- Innovative adjustable yoke for mounting in low clearance areas
- Direct power/data connection and control options for the Ovation GR-1 gobo rotator
- USB-C port for fixture software updates
In the Box
- CHAUVET PROFESSIONAL Ovation Rêve E-3 IP Multi-Color LED Ellipsoidal Fixture
- Seetronic Powerkon Power Cable
- Ovation Metal Gobo Holder
- Soft Focus Filter
- Limited 3-Year Manufacturer Warranty (For Fixture)
- Limited 5-Year Manufacturer Warranty (For LED Engine)
Not in the Box
- Essential Lens & Lens Tubes (Not Included)
CHAUVET PROFESSIONAL Reve E-3 IP Specs
Optical
| Light Source | 91 LEDs (12 Red, 19 Green, 3 Blue, 9 Royal Blue, 24 Amber, 24 Mint) 3.5 to 10 W, (2.4 A) |
| Life Expectancy | Life Expectancy: 50,000 Hours |
| Color Temperature | 2800 to 8000K (Range) 6428K (at Full) |
| CRI | 93.5 (at 3200K) |
| Beam Angle | 5° Lens: 6.7° 10° Lens: 11.1° 19° Lens: 17.6° 26° Lens: 26° 36° Lens: 32.8° 50° Lens: 49.5° 15-30° Lens: 14.3° (Narrow), 23.8° (Wide) 25-50° Lens: 24.7° (Narrow), 41.1° (Wide) |
| Field Angle | 5° Lens: 7.9° 10° Lens: 12.8° 14° Lens: 16.9° 19° Lens: 20.8° 26° Lens: 28.2° 36° Lens: 37° 50° Lens: 54.2° 15 to 30° Lens: 17.3° (Narrow), 33.2° (Wide) 25 to 50° Lens: 27.3° (Narrow), 44.7° (Wide) |
| Lumens | 5° Lens: 8335 Lumens 10° Lens: 11,092 Lumens 14° Lens: 10,700 Lumens 19° Lens: 10,185 Lumens 26° Lens: 12,178 Lumens 36° Lens: 11,888 Lumens 50° Lens: 11,274 Lumens 15 to 30° Lens: 9166 Lumens (Narrow), 11,395 Lumens (Wide) 25 to 50° Lens: 11,810 Lumens (Narrow), 14,328 Lumens (Wide) |
| Illuminance | 5° Lens: 28,740 lux at 16.4' / 5.0 m 10° Lens: 31,856 lux at 16.4' / 5.0 m 14° Lens: 8823 lux at 16.4' / 5.0 m 19° Lens: 5377 lux at 16.4' / 5.0 m 26° Lens: 3300 lux at 16.4' / 5.0 m 36° Lens: 1977 lux at 16.4' / 5.0 m 50° Lens: 864 lux at 16.4' / 5.0 m 15 to 30° Lens: 7731 lux at 16.4' / 5.0 m (Narrow), 2484 lux at 16.4' / 5.0 m (Wide) 25 to 50° Lens: 3174 lux at 16.4' / 5.0 m (Narrow), 1502 lux at 16.4' / 5.0 m (Wide) |
| PWM Frequency | 600, 1200, 2000, 4000, 6000, 25,000 Hz |
Dynamic Effects
| Dimmer | Electronic |
| Shutter/Strobe | Electronic |
| Focus | Manual |
| Strobe Rate | 0 to 28.6 Hz |
| Standalone Color Mixing | Yes |
| Dimmer Modes | 4 |
| Dimmer Curves | 4 |
| Automated Programs | Yes, Built-In |
Control
| Control Protocol | DMX, RDM |
| DMX Channels | 1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, or HSV |
| Modes/Personalities | 9 Personalities (1, 5, 6, 8, 12, 14-ch1, 14-ch2, 18, HSV) |
Connections
| Power Connections | Edison (Local) plug to Seetronic PowerCon IP65 |
| Power Input | Seetronic PowerCon IP65 |
| Power Output | Seetronic PowerCon IP65 |
| Data Connectors | 5-Pin XLR USB-C |
| Cable Length | 5' / 1.5 m (Power) |
| Required Accessories | Lens Tube: 5, 10, 14, 19, 26, 36, 50, 15 to 30, 25 to 50° |
Power
| Input Voltage | 100 to 240 VAC, 50/60 Hz (Auto Ranging) |
| Power Linking | 4 Units at 120 V; 7 Units at 208 V; 8 Units at 230 V |
| Power and Current | 354 W, 2.99 A at 120 V, 60 Hz 345 W, 1.70 A at 208 V, 60 Hz 342 W, 1.55 A at 230 V, 50 Hz |
Physical
| Certifications | CE, MET, FCC |
| Color | Black |
| IP Rating | IP67 |
| Temperature | Ambient: -4 to 113°F / -20 to 45°C |
| Dimensions | Fixture Only, Yoke Up: 20.83 x 12.71 x 19.75" / 52.9 x 32.3 x 50.1 cm With 5° Lens Extended, Yoke Up: 42.25 x 14.5 x 19.75" / 107.3 x 36.8 x 50.1 cm With 10° Lens Extended, Yoke Up: 33.5 x 12.71 x 19.75" / 85.1 x 32.3 x 50.1 cm With 14° Lens Extended, Yoke Up: 30.25 x 12.71 x 19.75" / 76.8 x 32.3 x 50.1 cm With 19, 26, 36, or 50° Lens Extended, Yoke Up: 27.5 x 12.71 x 19.75" / 69.8 x 32.3 x 50.1 cm With 15 to 30° Lens, Yoke Up: 33.75 x 12.71 x 19.75" / 85.7 x 32.3 x 50.1 cm With 25 to 50° Lens, Yoke Up: 26.5 x 12.71 x 19.75" / 67.3 x 32.3 x 50.1 cm |
| Weight | Fixture Only: 20.6 lb / 9.34 kg With 5° Lens: 25.2 lb / 11.43 kg With 10° Lens: 23.8 lb / 10.8 kg With 14° Lens: 26 lb / 11.8 kg With 26° Lens: 24.4 lb / 11 kg With 15 to 30° Lens: 30.2 lb / 13.69 kg With 25 to 50° Lens: 26.8 lb / 12.15 kg |
