Description

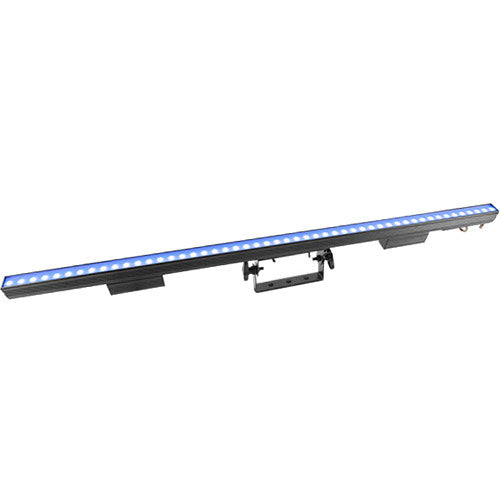

- 50 LEDs in a Row
- 125º Viewing Angle

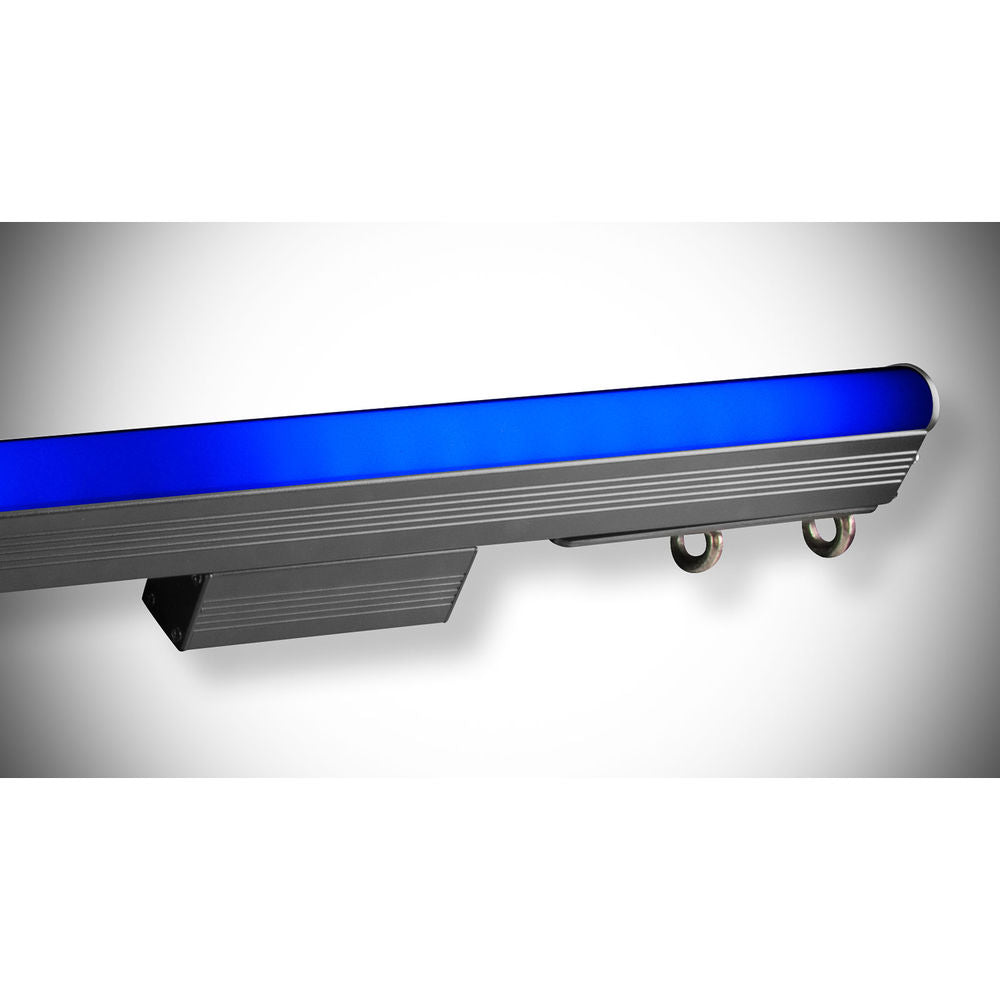

- Black Stealth Filter
- White Frosted Filter
- Art-Net, Kling-Net & sACN Controls
- ÉPIX Drive 900 Required for Operation

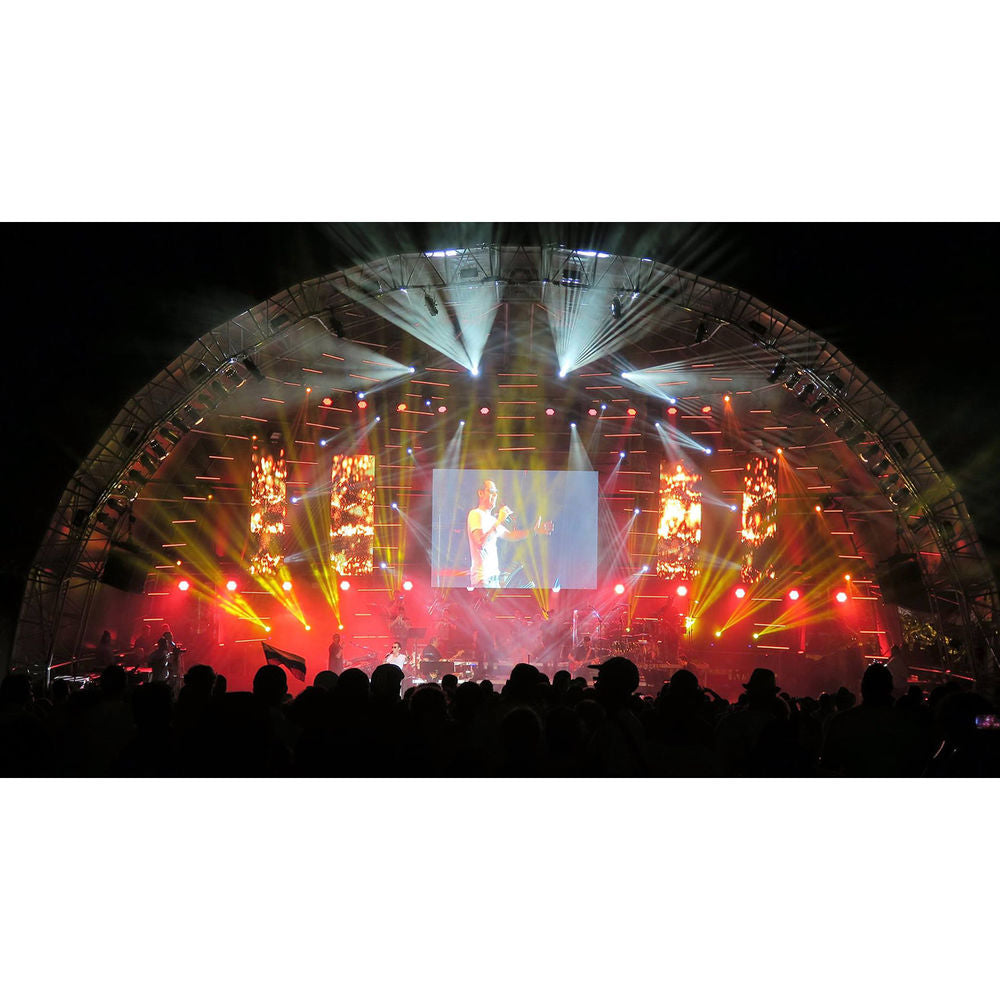

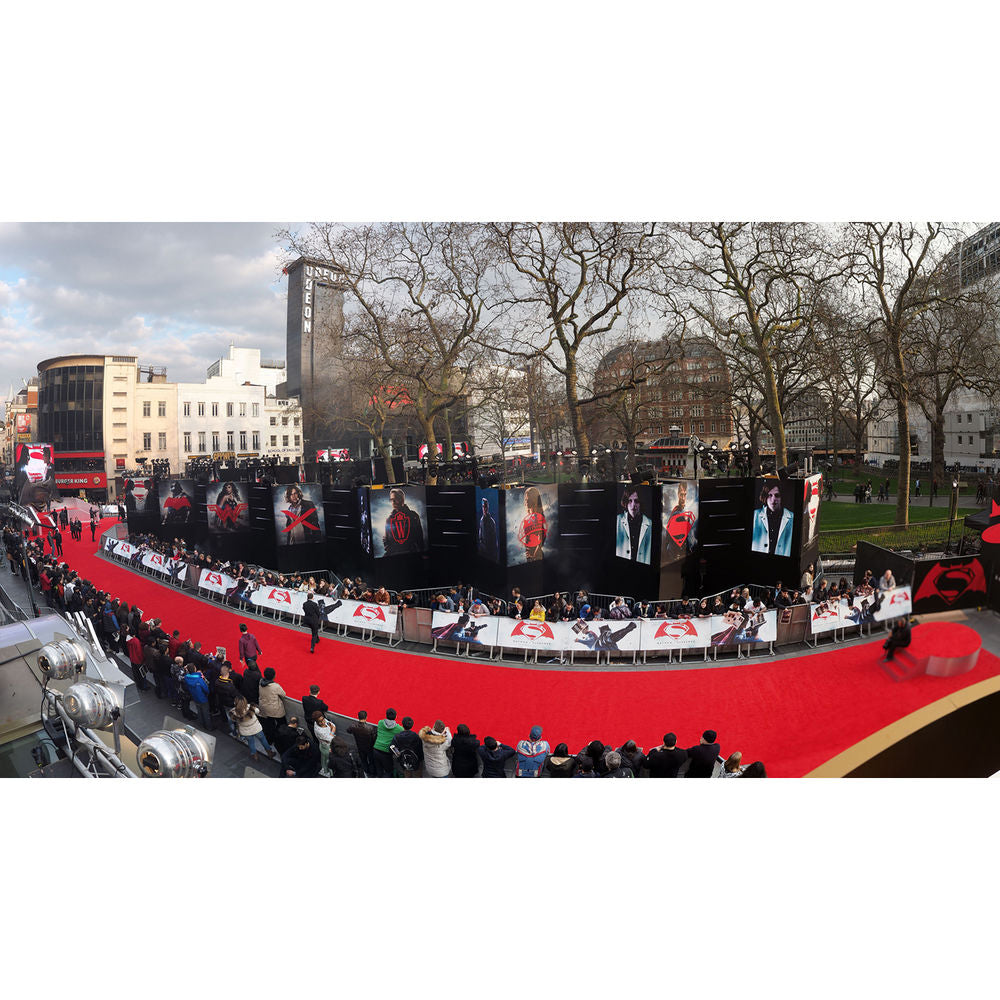

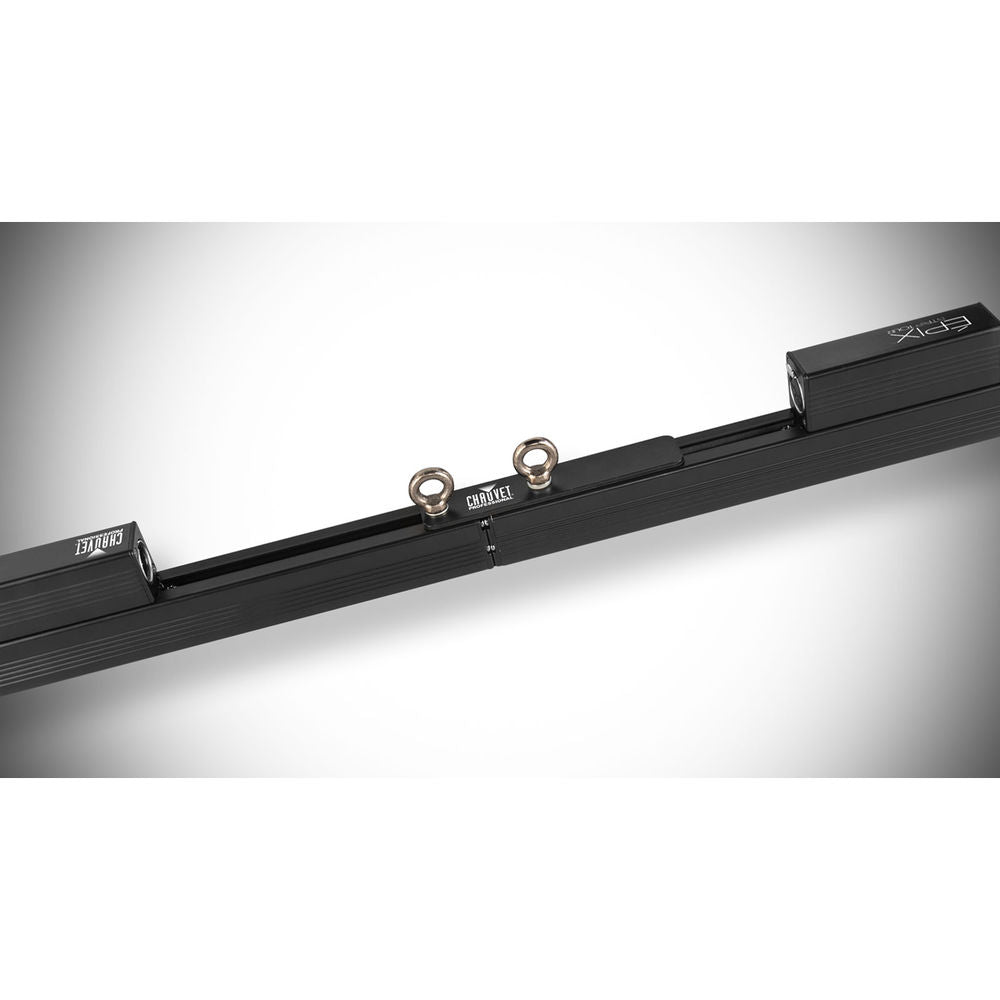

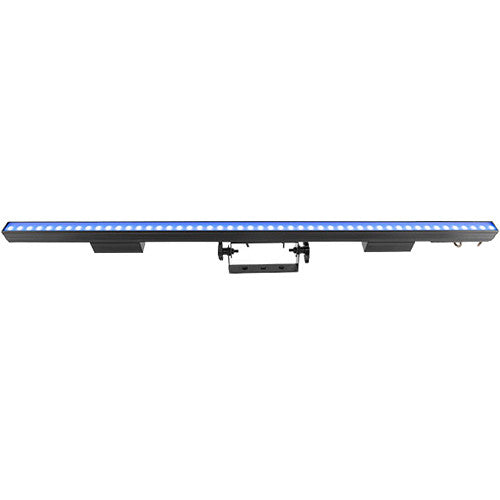

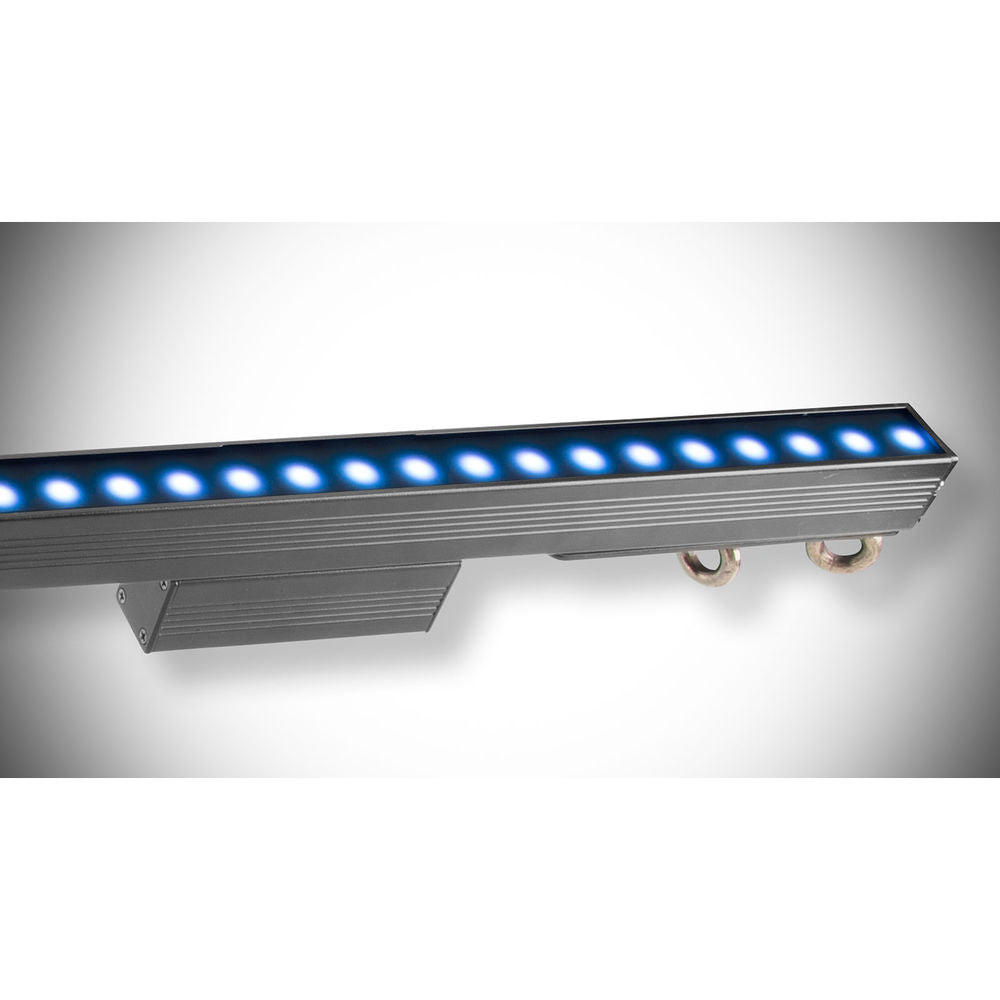

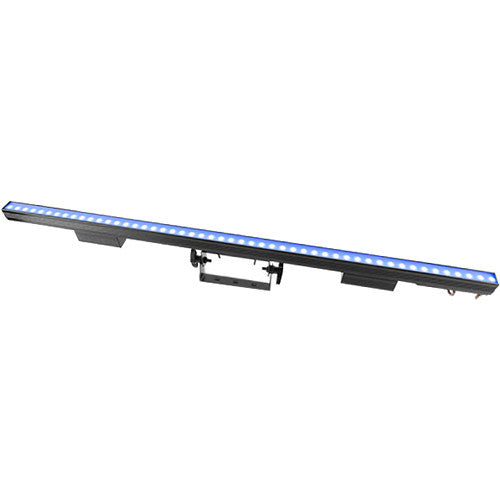

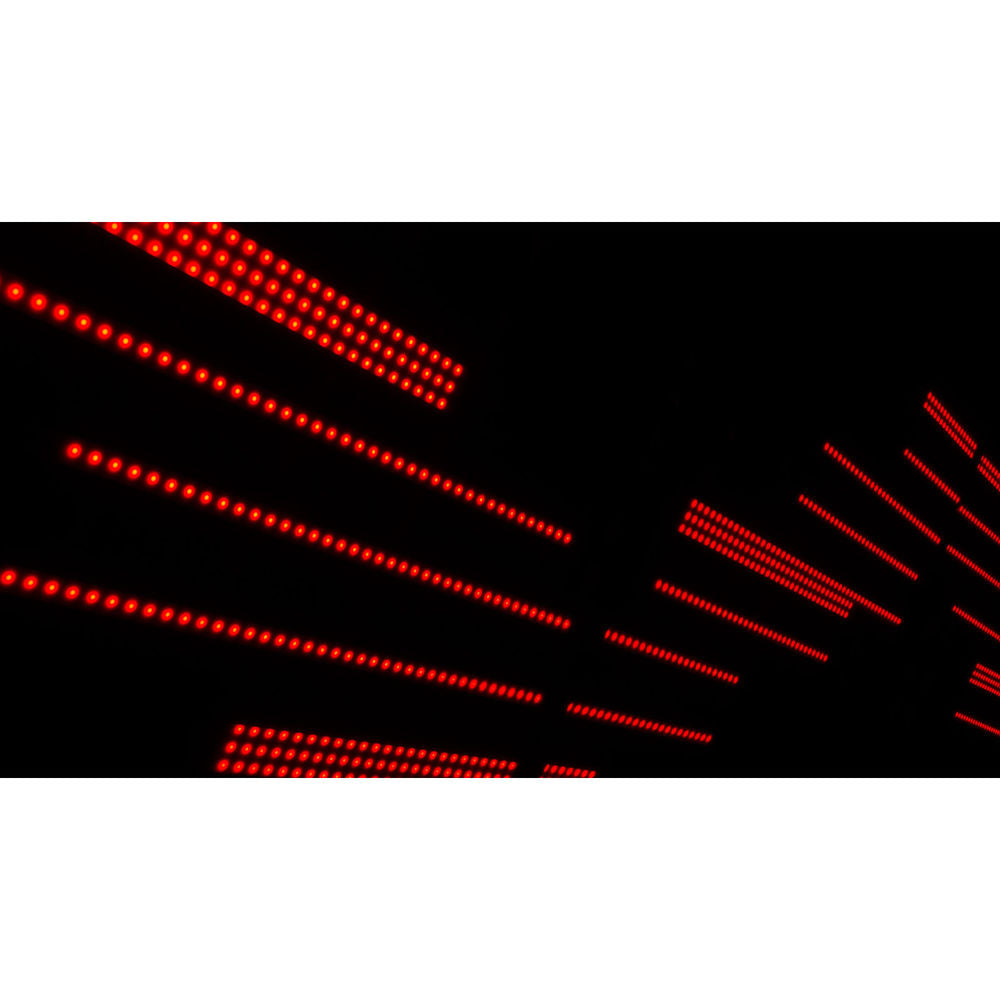

The ÉPIX Strip Tour 3.28' Pixel-Mapping LED Strip from CHAUVET Professional features 50 LEDs in a row with a 125° viewing angle and is designed for showing video and motion graphics. It includes a black stealth filter (installed) for high contrast and a white frosted filter (included) for high output. Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring, rental, and installation markets. The ÉPIX Drive 900 power supply (available separately) is required for operation.
In the Box

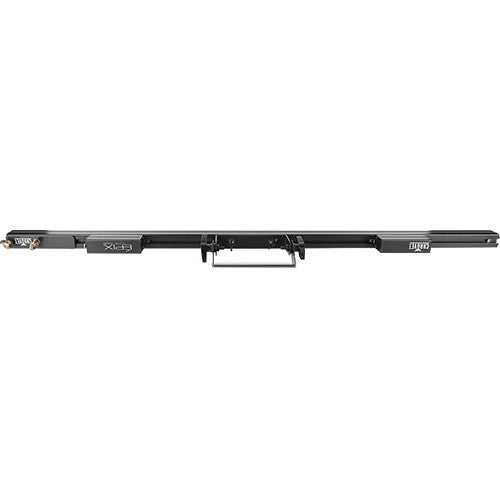

CHAUVET PROFESSIONAL ÉPIX Strip Tour Pixel-Mapping LED Strip (3.28')
CHAUVET PROFESSIONAL EPIX Strip Tour Specs
| Optical | |
|---|---|
| Light Source | 50 LEDs (Tri-Color RGB) SMD 5050, 50,000 Hours Life Expectancy |
| Viewing Angle | 125° |
| Illuminance | Black Stealth Filter (Installed): 267 nits White Frost Filter (Included): 1094 nits |
| Pixels | 50 x 1 |
| Pixel Pitch | 0.8" / 20 mm |
| Refresh Rate | 4700 Hz |
| Connections | |
|---|---|
| Data Connectors | 4-Pin XLR |
| Physical Linking | 18 Inline ÉPIX Strip Tour |
| Cable Size | Minimum Required Device Linking: 4 Conductor (2 x 18 AWG, 2 x 20 AWG) |
| Maximum Cable Length | Shielded Cables Between ÉPIX Drive 900 and Last ÉPIX Tour Fixture: 210' / 64 m Shielded Cables Between ÉPIX Drive 900 and First ÉPIX Tour Fixture: 65' / 20 m Shielded Cables Between ÉPIX Tour Fixtures: 60' / 18 m Unshielded Cables Between ÉPIX Drive 900 and Last ÉPIX Tour Fixture: 300' / 91 m Unshielded Cables Between ÉPIX Drive 900 and First ÉPIX Tour Fixture: 150' / 45 m Unshielded Cables Between ÉPIX Tour Fixtures: 100' / 30 m |
| Control | |
|---|---|
| Control Protocol | Art-Net, Kling-Net, sACN |
| Control Channels | 150 |
| Electrical | |
|---|---|
| Power and Current | 17 W, 0.14 A at 120 V, 60 Hz 17 W, 0.08 A at 208 V, 60 Hz 17 W, 0.07 A at 230 V, 50 Hz |
| Power Supply | ÉPIX Drive 900 (Available Separately): 100-240 VAC, 50/60 Hz |
| Voltage | 48 VDC |
| Certifications and Approvals | |
|---|---|
| Certification | CE, MET |
| IP Rating | IP20, Dry Location |
| Ambient Temperature | -4 to 113°F / -20 to 45°C |
| Cooling System | Convection |
| Physical | |
|---|---|
| Exterior Color | Black |
| Housing Material | Aluminum |
| Dimensions | 39.37 x 4.72 x 1.18" / 100 x 12 x 3 cm |
| Weight | 3.44 lb / 1.56 kg |
