Description

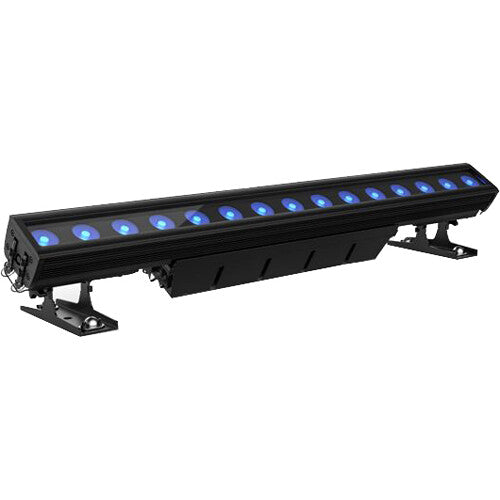

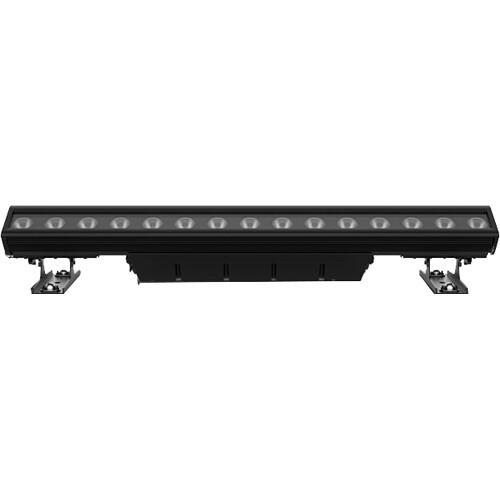

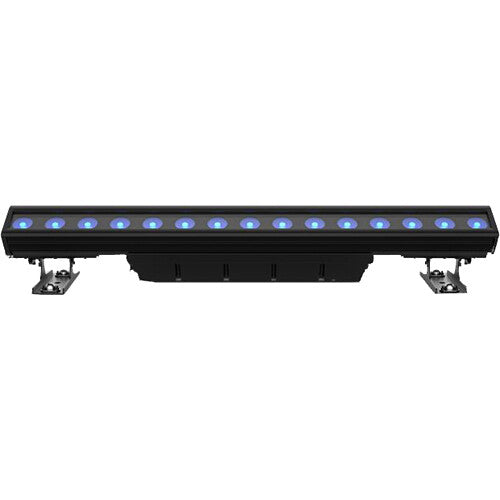

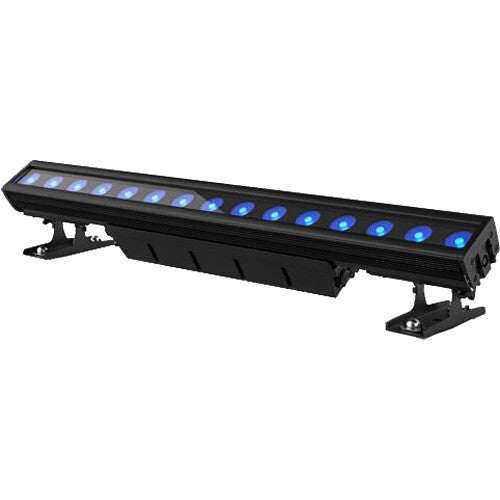

CHAUVET PROFESSIONAL Batten Q15 Overview
Lighting designers looking for a professional batten LED light fixture with individually addressable LEDs will be impressed by the Chauvet Professional COLOrado Batten Q15, a rugged, tour-ready IP65 batten-style LED wash-strip lighting fixture, well suited for touring, rental, and production indoors or out. The fixture is powered by 15 individually addressed 20W RGBWA LEDs, which eliminates the appearance of skittles and allows for remarkable pixel-mappable looks.
The fixture is capable of some serious output with selectable smooth dimming curves, convenient color temperature presets and an extraordinary reach with a native 16° beam angle. An included wall wash filter creates a 16 by 43° beam spread for guaranteed smoothness. The Q15 can be mounted by way of adjustable trunnions with ¼ turn adaptors for the Omega Bracket, innovative end-cap, or back plate mounting for seamless row alignment, icicles, and floor mounting. The fixture also includes a stowable glare shield.
- Quad-Color RGBW LED Batten for touring, rental, and production, indoors or out
- All environment operation with IP rated power and DMX connections
- Remarkable end-cap and back plate mounting options
- Color temperature presets, from 1800 to 8000K
- Selectable smooth dimming curves for programming versatility
- Built for touring, live events, television, and theatrical productions
- Large, easy to navigate display with password protection
In the Box
- CHAUVET PROFESSIONAL COLORado Batten Q15 RGBW LED Strip
- Seetronic PowerKON IP65 Power Cord
- 2 x Omega Brackets
- Base Plate
- 2 x Retaining Pins
- 2 x Safety Cables
- Glare Shield
- Filter
- Limited 2-Year Warranty
CHAUVET PROFESSIONAL Batten Q15 Specs
| Lighting Type | Strip/Bar Light |
| Light Source | 15 x Color LED - 20 W / 800 mA |
| Light Source Life Expectancy | 50,000 Hours |
| Colors | Red Green Blue White |
| Pixel Configuration | 15 x Zones |
| Photometrics |
222.9 fc / 2399 Lux at 16.4' / 5 m 60.7 fc / 653 Lux at 16.4' / 5 m |
| Color Temperature | 1800 to 8000K |
| Lumen Output | 6324 Lumens (Output) 5547 Lumens |
| Beam Angle | 15.5° (without Filter) 41.9° (with Filter) 14.7° (without Filter) 15.3° (with Filter) |
| Field Angle | 28.6° (with Filter) 77.9° (without Filter) 28.1° (with Filter) 32.1° (without Filter) |
| Shutter / Strobe | Electronic |
| Iris | None |
| Dimming | 16-Bit Electronic, 0 to 100% with 4 Dimmer Modes |
| Operating Modes | Automatic, Color Change, Color Dimmer, DMX, Master/Slave, Program |
| Macros / Programs | 10 x Auto-Program |
| Effects | Color Scroll (Variable Speed) Color Strobe (Variable Speed) |
| Strobe Rate | 0 to 25 Hz |
| Gobos | None |
| PWM Frequency | 1200 Hz to 25,000 Hz (Adjustable) |
| Control Protocols | DMX512, RDM |
| DMX Channel Modes | 9 Mode(s):468104560646676-Channel |
| Remote Control | None |
| Display / Controls | LCD / 4-Button |
| Connectors | 2 x XLR 5-Pin DMX Input/Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: 1 x powerCON Output: 1 x powerCON |
| Power / Current Consumption | 120 VAC, 60 Hz: 194 W / 1.6 A 208 VAC, 60 Hz: 197 W / 0.95 A 230 VAC, 50 Hz: 197 W / 0.86 A |
| Power Linking | 6 Units at 100 VAC 8 Units at 120 VAC 14 Units at 208 VAC 15 Units at 230 VAC 16 Units at 240 VAC |
| IP Rating | IP65 |
| Operating Temperature | -14 to 113°F / -25 to 45°C |
| Mounting | Floor Stand, Omega Bracket |
| Duty Cycle | None |
| Exterior Color | Black |
| Dimensions | 41.22 x 7.28 x 6.55" / 104.7 x 18.49 x 16.64 cm |
| Weight | 28.8 lb / 13.1 kg |
