Description
- LED Light Source
- Local or DMX Dimming

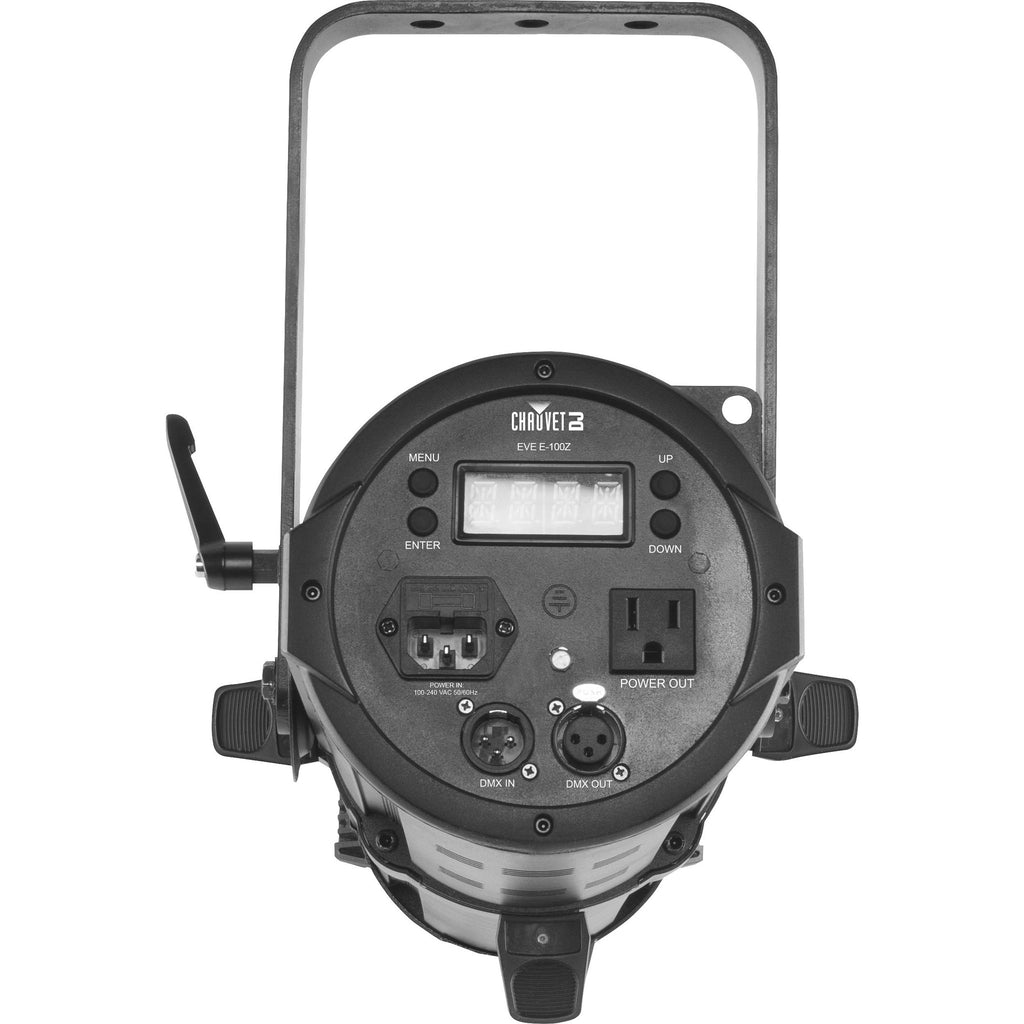

- LED Info Screen on Back
- Individual Manual Focus and Zoom Control
- Four Framing Shutters
- Gobo Accessory Slot
- Included Gel Frame
- Neutral Yoke and Integrated Safety Loop

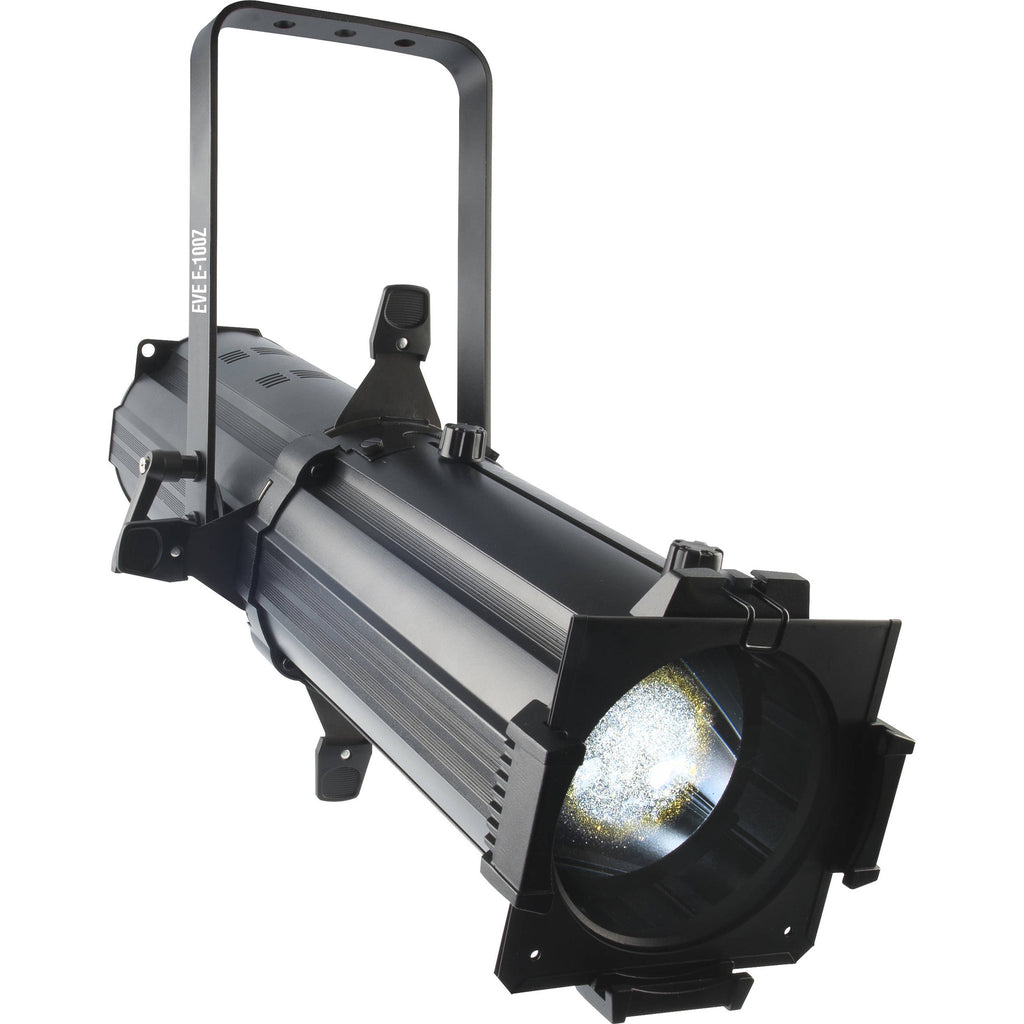

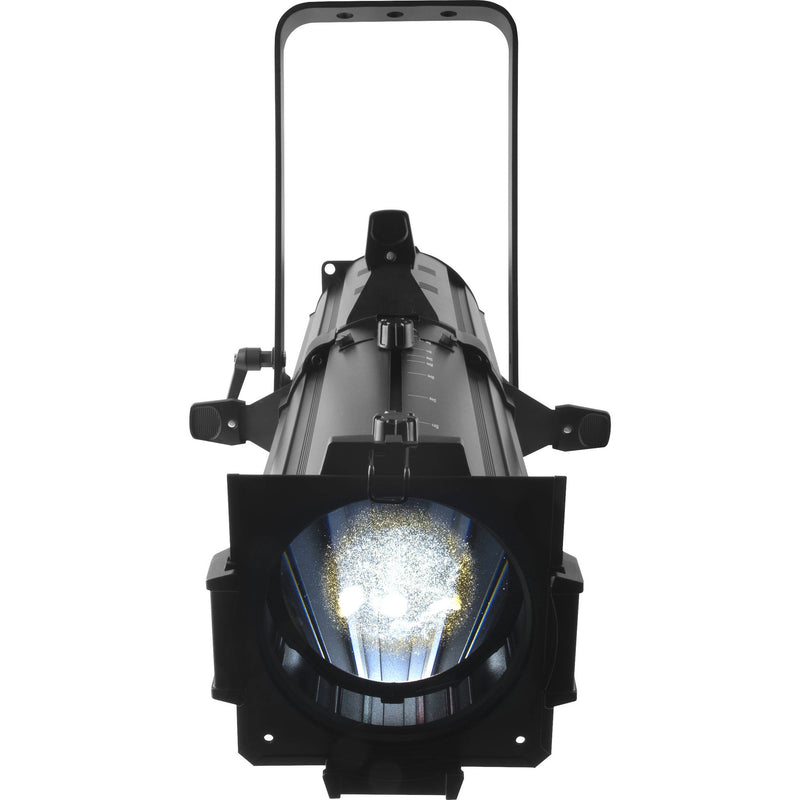

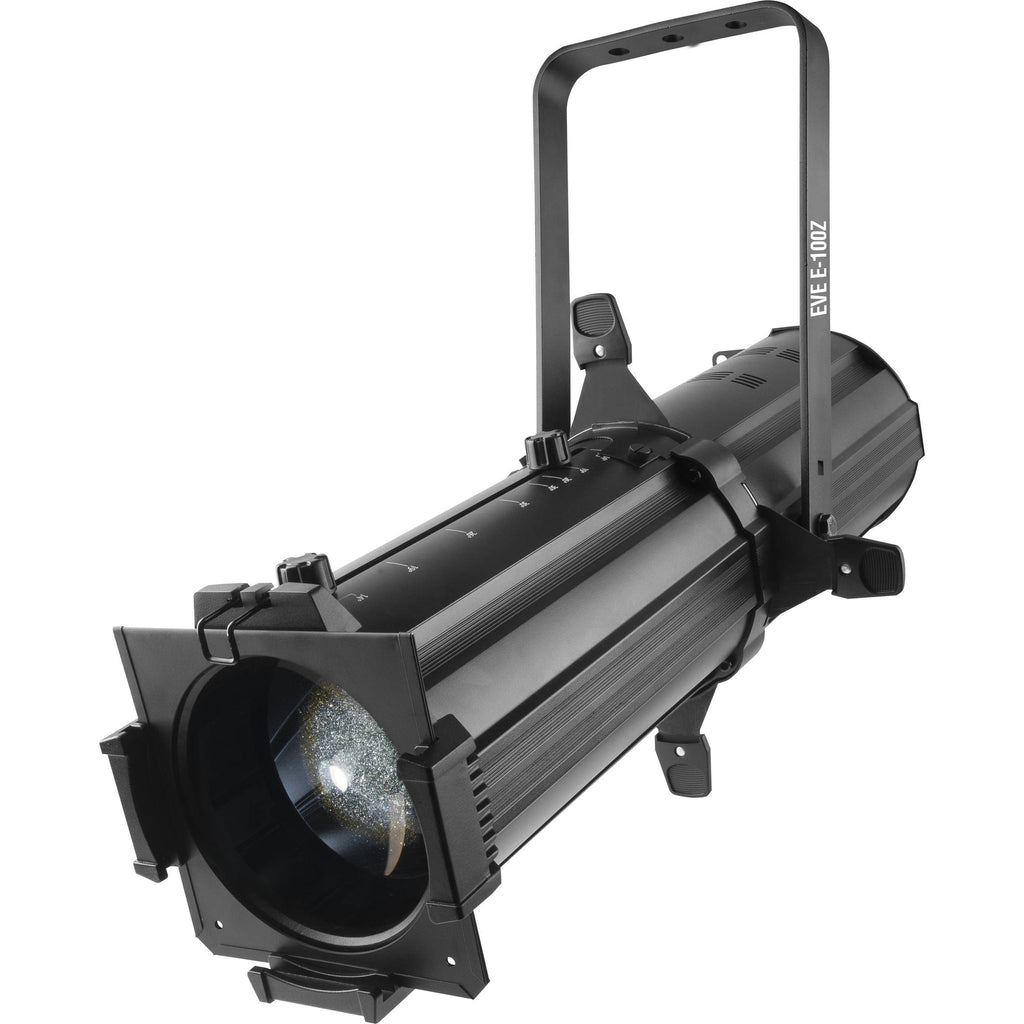

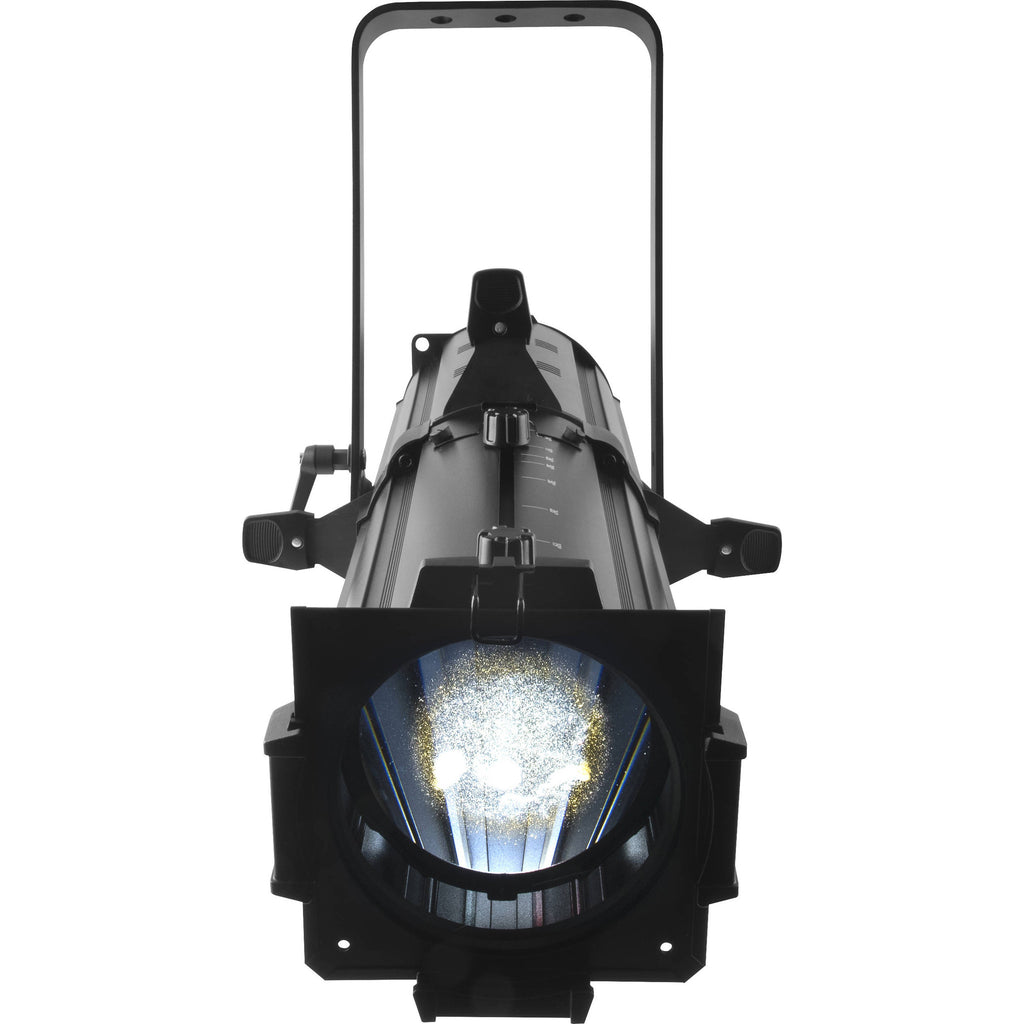

The EVE E-100Z is an ellipsoidal LED spot fixture with a built-in dimmer and DMX control. It is primarily designed for use in a theatrical lighting grid, but it can also be used in film and video productions. Dimming the fixture is controllable locally or via DMX choosing dimming with either 1 or 3 channels of control. Manual zoom and focus adjustment lets you tune your light's coverage, which can be further refined with the included framing shutters. A built-in LED info screen aids you in navigating the menu system.
The EVE E-100Z incorporates an internal gobo slot that accepts glass or metal gobos. This enables you to project a shape or image, and the zoom and focus knobs allow you to control the size and focus of the image. The included gel frame enables placing a gel or diffusion in front of the ellipsoidal. The neutral yoke features three pre-drilled holes that you can use to mount your choice of clamps or stand adapters. The integrated safety loop provides a secure point for a safety cable when hanging the fixture from a grid.
- Attributes
-
- Compact LED ellipsoidal outputs a hard-edged beam ideal for gobo projection
- Highlight areas by altering the projected beam with built-in framing shutters
- The warm white 100-watt LED bulb is rated for 50,000 hours
- Included removable power cord
- The fixture supports power pass-through allowing you to daisy chain 9 lights together on a 120-volt line (16 on a 230-volt line) and not have to run discrete power cords to each fixture
- DMX
- 3-channel DMX profile allows you to control the brightness, dimming speed settings, and strobe
- Strobe is controllable from 0 to 30 Hz
| Light Source | 1 x 100 W LED (warm white) |
| Life Expectancy | 50,000 hours |
| Illuminance | 14°: 15,100 lux @ 6.6' / 2.0 m 30°: 3,800 lux @ 6.6' / 2.0 m |
| Gobos | Gobo Size M Outside Dimensions: 2.6" / 66 mm Image Area: 1.9" / 47 mm Thickness: 0.08" / 2 mm (max) |
| Zoom Angle | 14 to 30° (manual) |
| Focus | Manual |
| Strobe Rate | 0 to 30 Hz |
| Dimming | Local and DMX dimming |
| DMX Connectors | Input: 1 x 3-pin XLR Output: 1 x 3-pin XLR |
| Input Voltage | 100 to 240 VAC, 50/60 Hz (auto-ranging) |
| Power Connectors | Input: IEC Output: Edison |
| Power Linking | 120 V: 9 units 230 V: 16 units |
| Power Consumption | 120 V (60 Hz): 106 W, 0.9 A 230 V (50 Hz): 103 W, 0.5 A |
| Approvals | CE, MET |
| Dimensions | 24 x 7.2 x 16.9" / 611 x 183 x 430 mm |
| Weight | 12.6 lb / 5.7 kg |
| Packaging Info | |
|---|---|
| Package Weight | 18.5 lb |
| Box Dimensions (LxWxH) | 29.5 x 12.0 x 12.0" |
- Gobo Holders for Glass and Steel Gobos
- Gel Frame
- 4 x Framing Shutters
- Removable Power Cord
- Limited 3-Year Warranty
