Description

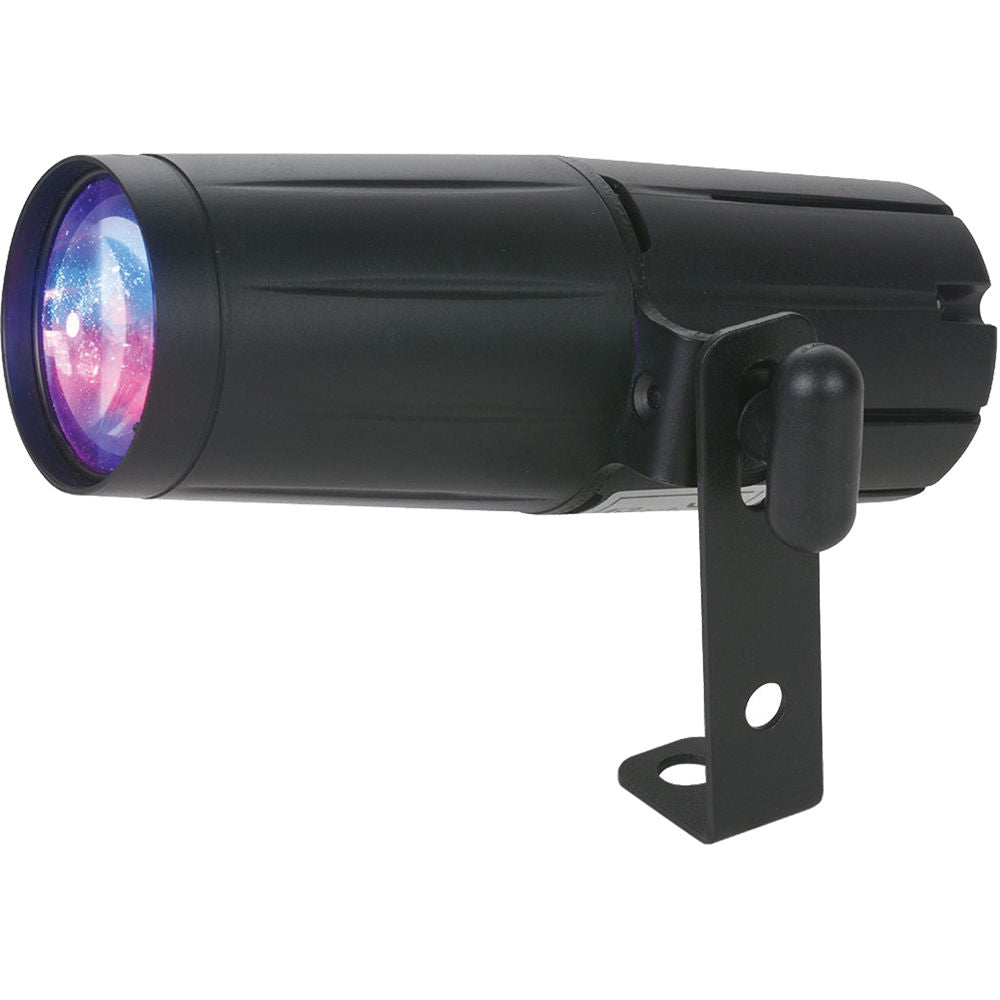

American DJ Pinspot Quad DMX Overview
Lighting designers and event coordinators looking to step up their pinspot game will appreciate the American DJ Pinspot LED Quad DMX, a full-featured 8W quad-color (4-in-1) fixture with red, green, blue, and white diodes on a single LED that produces a sharp 15-degree beam angle, allowing you to isolate small areas of a set or stage.
While it can be used as a decorative fixture in architectural applications or restaurants to spot tables, it's at entertainment venues that you realize the light's full potential. The unit's 6-channel DMX modes allow adjustment and control of the light remotely via a console while dimming and strobing can also be handled by the included IR Remote. The Pinspot LED Quad has a multivoltage power supply for worldwide use.
- 8W quad (4-in-1) RGBW LED pinspot (rated at approximately 10,000 hours)
- Operational modes: DMX Controlled / Sound Active / IR Remote / Autorun Programs
- Beam Angle: 15deg
- Lumens: 740 at 3.3' at 15°
- DMX channel mode: 6 channels
- DMX connections: 3-pin DMX in/out
- Dimming: Adjustable via IR remote
- Shutter/strobe: Adjustable via IR remote
- Flicker free
- ADJ UC IR wireless remote included
In the Box
- American DJ Pinspot LED Quad DMX
- American DJ IR Remote for Inno Pocket Spot
- Limited 2-Year Warranty
American DJ Pinspot Quad DMX Specs
| Light Type | Pinspot |
| Light Source | 1 x Color LED - 8 W |
| Light Source Life Expectancy | 10,000 Hours |
| Colors | Red Green Blue White |
| Lumen Output | 740 Lumens |
| Beam Angle | 15° |
| Shutter / Strobe | Electronic |
| Dimming | Electronic, 0 to 100% |
| Operating Modes | Automatic, Color Change, DMX, Primary/Secondary, Program, Sound-Active |
| Macros / Programs | 9 x Show |
| Effects | Strobe (Variable Speed) |
| Gobos | None |
| Control Protocols | DMX512 |
| DMX Channel Modes | 1 Mode(s): 6-Channel |
| Display / Controls | None |
| Remote Control | IR Remote (with Included Equipment) |
| I/O | 1 x XLR 3-Pin DMX Input 1 x XLR 3-Pin DMX Output |
| AC Input Power | 100 to 240 VAC, 50/60 Hz |
| AC Power Connector | Input: Hard-Wired Output: None |
| Power / Current Consumption | 11 W (Max) |
| Power Linking | None |
| IP Rating | None |
| Mounting | Mounting Bracket |
| Exterior Color | Black |
| Dimensions | 8 x 4 x 2.5" / 203.2 x 101.6 x 63.5 mm |
| Weight | 1 lb / 0.5 kg |
| Package Weight | 1.85 lb |
| Box Dimensions (LxWxH) | 9.3 x 5.5 x 4.1" |
