Description

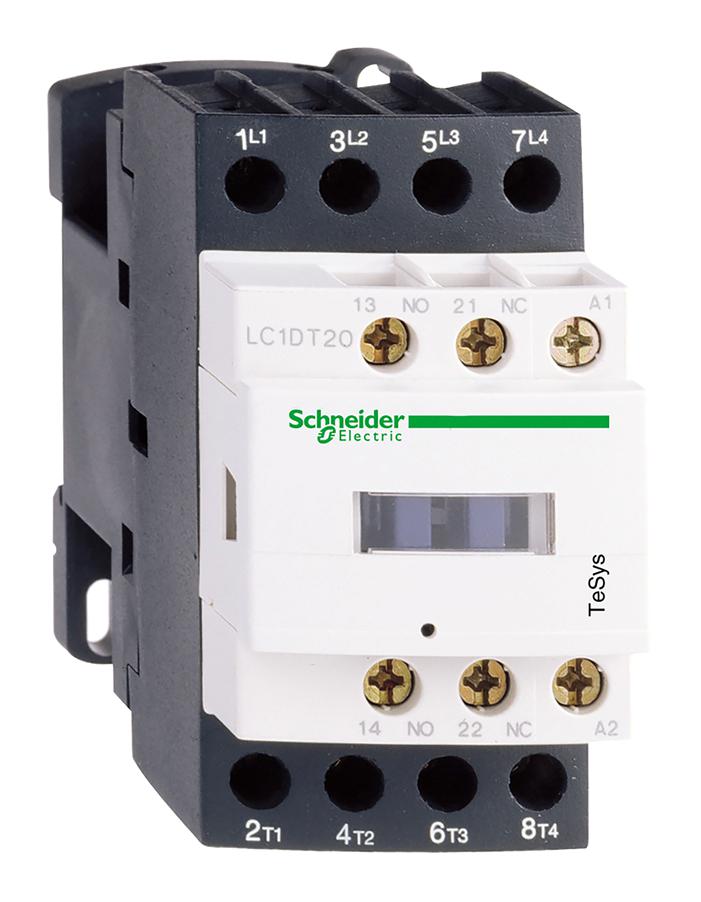

The LC1DT25BD is a 4-pole TeSys D Contactor with 4PST-NO contact, screw clamp terminals and safety cover. The TeSys D contactor offers quick simple setup, while maintaining a compact size of 45 and 55mm (40 to 65A) as well as compliance with international standards. From 40 to 65A versions are equipped with EverLink, this new patented terminal technology, assures a permanent tightening quality even in the event of conductor creep. The TeSys D contactor has been designed for perfect integration in control systems.
- Built-in bidirectional peak limiting diode suppressor coil technology
- DC standard control circuit type
- 6kV Rated impulse withstand voltage
- 2.5mR at 50Hz Average impedance
- 5mA for signaling circuit Minimum switching current
- 17V for signaling circuit Minimum switching voltage
- >10MR for signaling circuit Insulation resistance
- IP2x Protection rating
Applications
Motor Drive & Control, Industrial
Product details
| Load Current Inductive: - |
| Relay Mounting: DIN Rail, Panel |
| Operating Voltage: 690VAC |
| Contact Configuration: 4PST-NO |
| No. of Poles: 4 Pole |
| Switching Power AC3: - |
| Switching Current AC1: 25A |
| Coil Voltage VAC Nom: - |
| Coil Voltage VDC Nom: 24V |
| Switching Power AC1: - |
| Load Current Resistive: 25A |
| Switching Current AC3: - |
| Product Range: TeSys Deca Contactor |
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | LC1DT25BD |
| Quantity | Each |
| Technical Data Sheet EN |  |
