Description

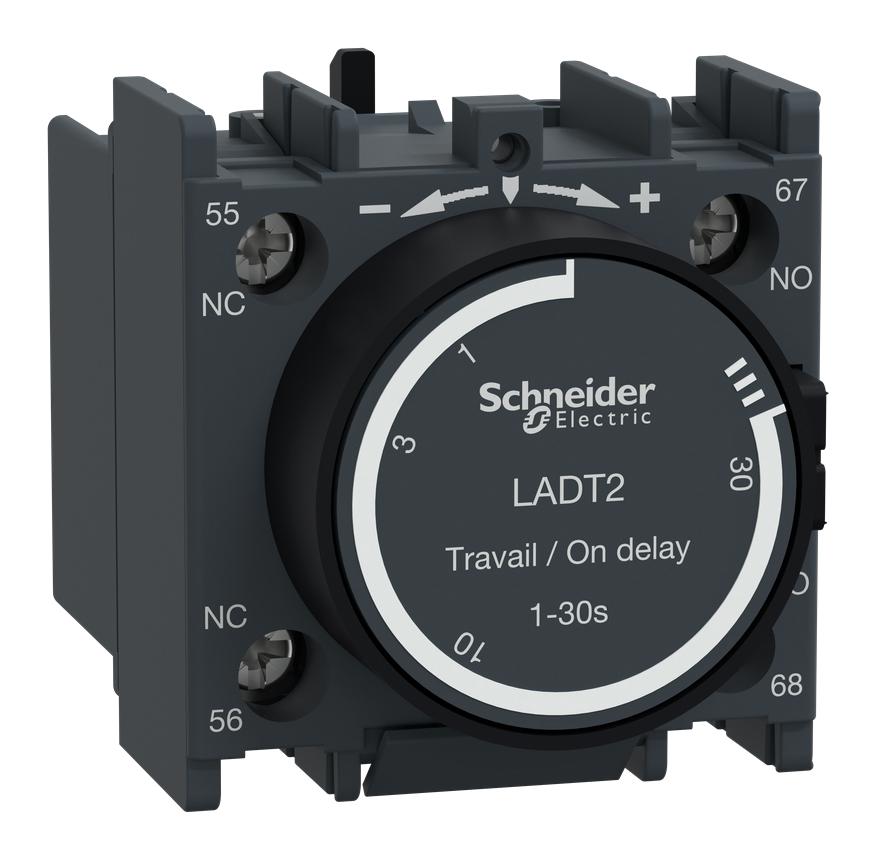

LADT2 is a TeSys time delay auxiliary contact block with 1NO + 1NC pole contact composition. It is approved by CSA, UL, BS 4794, EN 60947-5-1, IEC 60947-5-1, NF C 63-140 and VDE 0660 standards.
- Front mountable on-delay timer
- Rated insulation voltage of 690V conforming to IEC 60947-5-1 standard
- Rated operational voltage of 690VAC at 25Hz to 400Hz
- Conventional free air thermal current of 10A at less than or equal to 60°C
- Irms rated making capacity of 250A at <= 690VDC and 140A at <= 690VAC conforming to IEC 60947-5-1
- Mechanical durability of 5Mcycles, time delay range from 1sec to 30sec
- Minimum switching current of 5mA and switching voltage of 17V
- IP2x degree of protection conforming to VDE 0106
- Ambient air temperature for operation range from -40 to 70°C
Other details
| Brand | SCHNEIDER ELECTRIC |
| Part Number | LADT2 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Handling Instructions EN | |
| Product Change Notice EN | |
| CAD Multiple Formats EN | |
| Manufacturer Catalogue EN | |
| Safety Data Sheet B EN | |
| Certificate of Conformity EN | |
