| ₹ 550.31 includes GST and import duties. | |
| B2B customers can avail ₹ 83.92 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

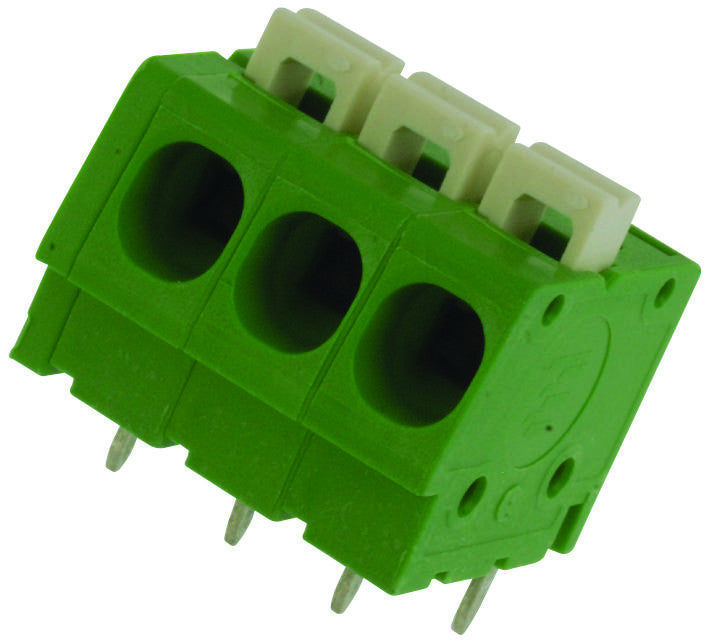

This is a TERMINAL BLOCK, SPRING, 3 POSITION, 30-12AWG product from TE CONNECTIVITY with the model number 1986712-3
Product details
| Block Orientation | Through Hole Right Angle |
| Wire Size AWG Max | 12AWG |
| Wire Connection Method | Push In |
| Rated Current | 16A |
| No. of Positions | 3Ways |
| Conductor Area CSA | 3mm² |
| Product Range | - |
| Pitch Spacing | 5.08mm |
| Wire Size AWG Min | 30AWG |
| Rated Voltage | 300V |
Other details
| Brand | TE CONNECTIVITY |
| Part Number | 1986712-3 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Drawing EN | |
| 3D Product Image EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 539.3 |
| 3-5 | ₹ 533.8 |
| 5-10 | ₹ 522.79 |
| 10+ | ₹ 511.79 |
Bulk discount will be automatically applied during checkout based on quantity.
