Description

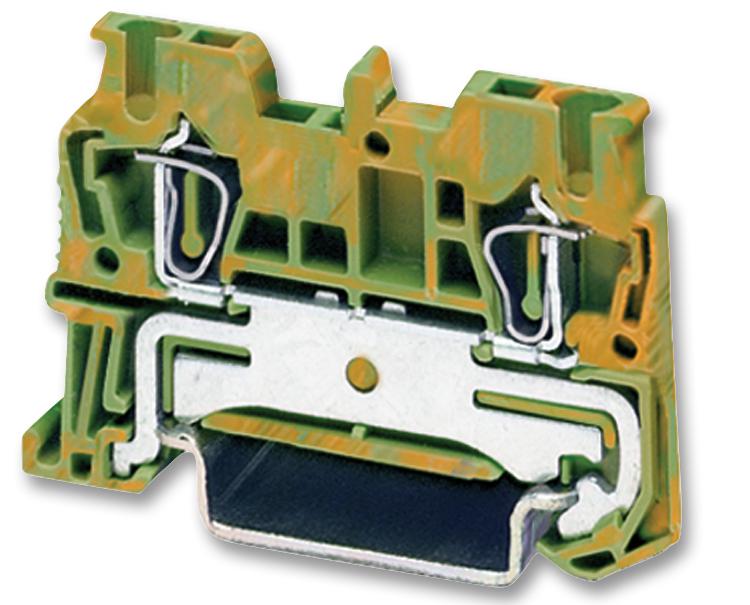

The 3031238 is a 2-position 1-level green-yellow Ground Terminal Block with a polyamide insulator, the spring-cage connection and the NS 35/7,5, NS 35/15 mounting. This ST 2,5-PE terminal block has easy operation and can be snapped onto the DIN rail. It accepts 28 to 12AWG wire range.
- Semi-sinusoidal shock form
- 8 to 10mm Stripping length
- UL94V-0 Flammability rating
Applications
Industrial, Automation & Process Control
Product details
| No. of Positions: 2Ways |
| Wire Size AWG Min: 28AWG |
| Wire Size AWG Max: 12AWG |
| Conductor Area CSA: 4mm² |
| Wire Connection Method: Tension Clamp |
| Rated Current: - |
| Rated Voltage: - |
| No. of Levels: 1 |
| Product Range: ST |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 3031238 |
| Quantity | Each |
| Technical Data Sheet EN |  |
