Description

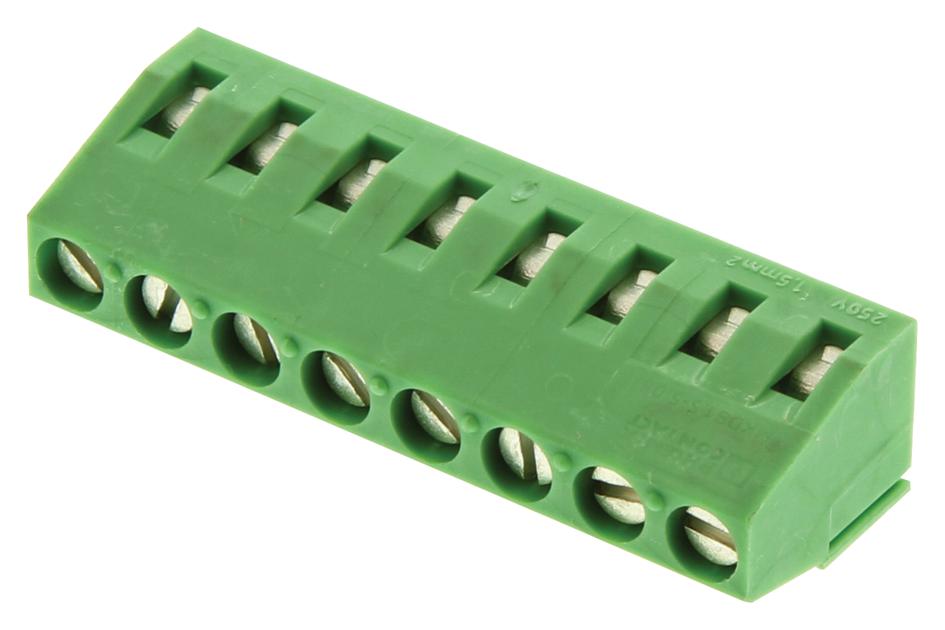

The 1715789 is a 8-position green PCB Terminal Block with tin-plated solder contacts, a polyamide insulator and the M3 screw connection. This MKDS 1,5/ 8-5,08 terminal block has fully developed contact geometries and surfaces. It accepts 26 to 14AWG wire
- Space-saving and safe
- 7mm Stripping length
- A1 Internal cylindrical gage
- UL94V-0 Flammability rating
Applications
Industrial
Product details
| Pitch Spacing: 5.08mm |
| No. of Positions: 8Ways |
| Wire Size AWG Min: 26AWG |
| Wire Size AWG Max: 14AWG |
| Conductor Area CSA: 2.5mm² |
| Wire Connection Method: Screw |
| Rated Current: 15A |
| Rated Voltage: 300V |
| Block Orientation: Through Hole Right Angle |
| Product Range: MKDS |
Other details
| Brand | PHOENIX CONTACT |
| Part Number | 1715789 |
| Quantity | Each |
| Technical Data Sheet EN |  |
