| ₹ 13976.04 includes GST and import duties. | |
| B2B customers can avail ₹ 2131.35 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

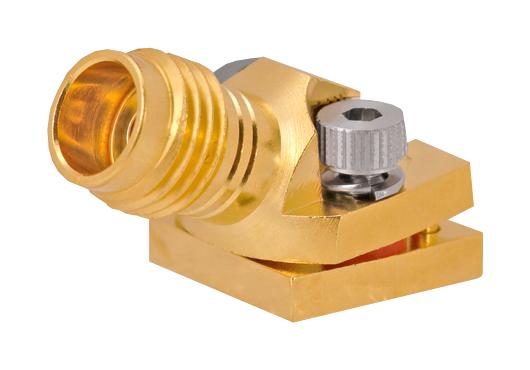

Johnson� angled precision RF PCB mount connectors are designed to offer mid-board launch of RF signals in tight enclosures as well as board to board applications, where there may be height restrictions for Vertical Mount and width restrictions for an end launch connector. The mmWave connectors (1.85mm, 2.4mm, and 2.92mm) are designed for tight enclosures, utilizing a solderless contact to the PCB surface and two screws for quick and easy mounting to save on installation time and support frequencies up to 67GHz. The thru-hole SMA connectors support frequencies up to 18GHz (45º connector, soldered) and 26.5GHz (30º connector, solderless). Applications include test & measurement - vector network analyser (VNA), instrumentation test fixture equipment, design validation testing, board characterization, semiconductor, military/defence, radar/satellite.
- Mating interfaces: 1.85mm, 2.4mm, 2.92mm, and SMA
- Gold-plated beryllium copper body
- Rated to 500 mating cycles
- Field-replaceable
- 30° angled precision RF PCB mount connectors
- Frequency range from DC - 50GHz
- VSWR performance: 1.30 max to 50GHz
- 50 ohm impedance
Product details
Other details
| Brand | JOHNSON - CINCH CONNECTIVITY |
| Part Number | 147-0791-301 |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 13696.52 |
| 3-5 | ₹ 13556.76 |
| 5-10 | ₹ 13277.24 |
| 10+ | ₹ 12997.72 |
Bulk discount will be automatically applied during checkout based on quantity.
