Description
Product Overview

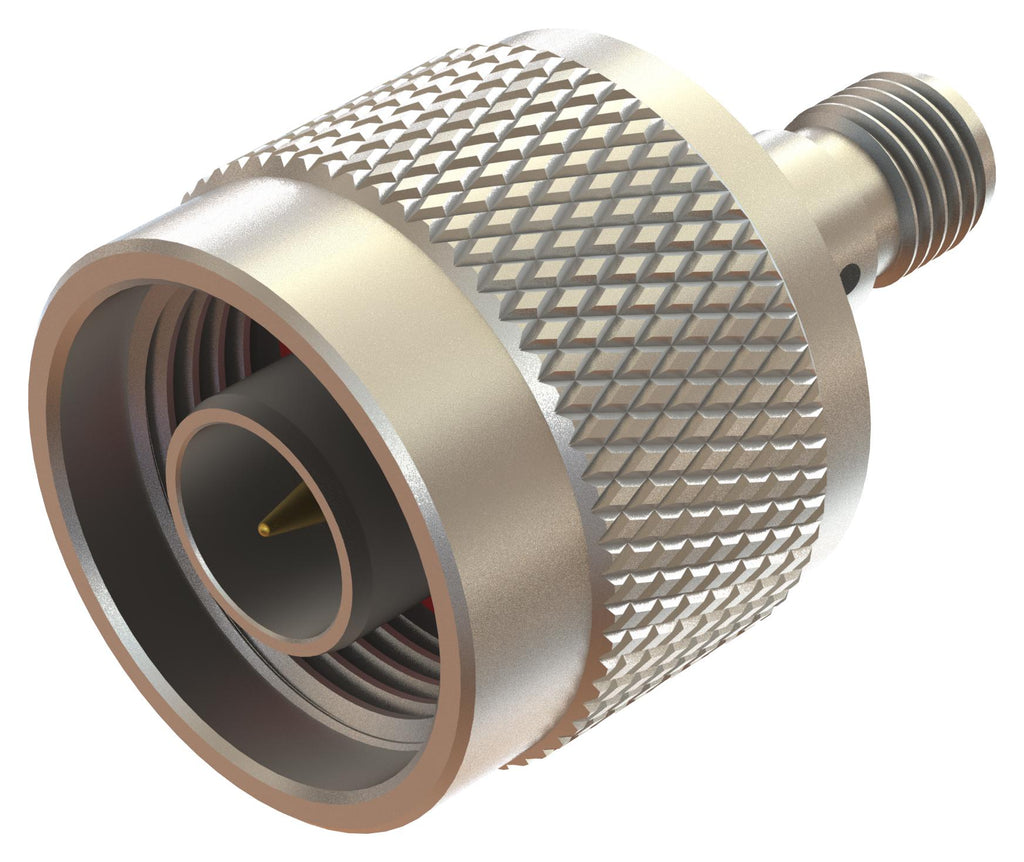

CT3320A is a N-type male to SMA female coaxial adapter. The CT3320A is an instrument grade coaxial adapter which provides that next level of measurement confidence. The grade provides tighter tolerances and better materials for improved performance in critical measurements. It is that cost effective middle-ground between general-purpose and very expensive metrology grade.
- Frequency range from DC to 18GHz
- 50 ohm impedance
- 2A maximum contact current
- 480Vrms working voltage
- Low VSWR and flat frequency response
- Stainless steel, passivated body and coupling nut
- BeCu with gold plated centre contact, PTFE dielectric, silicon rubber gasket
- Temperature range from -55°C to + 165°C
Product details
Other details
| Brand | CAL TEST ELECTRONICS |
| Part Number | CT3320A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 14546.7 |
| 3-5 | ₹ 14398.26 |
| 5-10 | ₹ 14101.39 |
| 10+ | ₹ 13804.52 |
Bulk discount will be automatically applied during checkout based on quantity.
