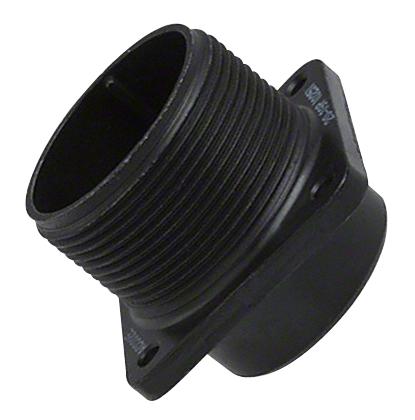

AMPHENOL INDUSTRIAL ACC02A24-11SB-003 Circular Connector, ACC Series, MIL-DTL-5015 Series, Box Mount Receptacle, 9 Contacts, Crimp Socket

The ACC02A24-11SB-003 from Amphenol is AC-B series, MIL-DTL-5015 series equivalent box mount receptacle with 9 contacts. The AC-B series cylindrical reverse bayonet coupling connectors are environmentally rugged for power and signal applications. These highly reliable and low cost connectors has a unique reverse bayonet coupling system that allows for mating and unmating with a simple 120? rotation without compromising shock, vibration or moisture resistance. AC-B series positive mating connectors are high shock and vibration resistant. They are manufactured in accordance with MIL-DTL-5015 and VG95234 standards. These are intermateable with VG95234 and other reverse bayonet connectors.

• No lockwiring necessary
• UL approved (file number E115497)
• 500+ mating cycles, IP67 and NEMA 4P rated
• Audible, tactile and visual indication of positive coupling
• Operating temperature range from -55°C to +125°C
• Insulation resistance is greater than 5000Mohm at 25°C
• Salt spray exposure of 500hour
• Neoprene insulator and silicone, neoprene or viton seals
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Copper alloy crimp socket contacts with silver plating

Applications

Commercial, Industrial
