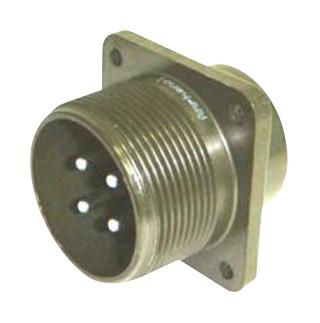

AMPHENOL INDUSTRIAL ACA3102E24-12PBF80 Circular Connector, ACA Series, MIL-DTL-5015 Series, Box Mount Receptacle, 5 Contacts, Crimp Pin

The ACA3102E24-12PBF80 from Amphenol is ACA-B series, MIL-DTL-5015 series equivalent box mount receptacle with 5 contacts. The ACA-B series cylindrical reverse bayonet coupling connectors are environmental & rugged for power and signal applications. These high reliable and low cost connectors uses a unique reverse bayonet coupling system that allows for mating and unmating with a simple 120? rotation without compromising shock, vibration or moisture resistance. ACA-B series positive mating connectors are high shock and vibration resistant. They are manufactured in accordance with MIL-DTL-5015 and VG95234 standards. These are intermateable with VG95234 and other reverse bayonet connectors.

• No lockwiring necessary
• UL approved (file E115497)
• 500+ mating cycles, IP67 and NEMA 4P rated
• Audible, tactile and visual indication of positive coupling
• Operating temperature range from -55°C to +125°C
• Insulation resistance is greater than 5000Mohm at 25°C
• Neoprene insulator and silicone, neoprene or viton seals
• Salt spray exposure of 500hour
• Aluminium alloy body material with olive drab chromate over cadmium plating
• Brass, copper alloy crimp pin contacts with silver plating

Applications

Commercial, Industrial
