Description
- 5.15 - 5.85 GHz Frequency Range
- 22 dBi Gain
- Dual-Linear Polarization
- 6 x RP-SMA Connectors
- Up to 125 mph Wind Loading/Survivability

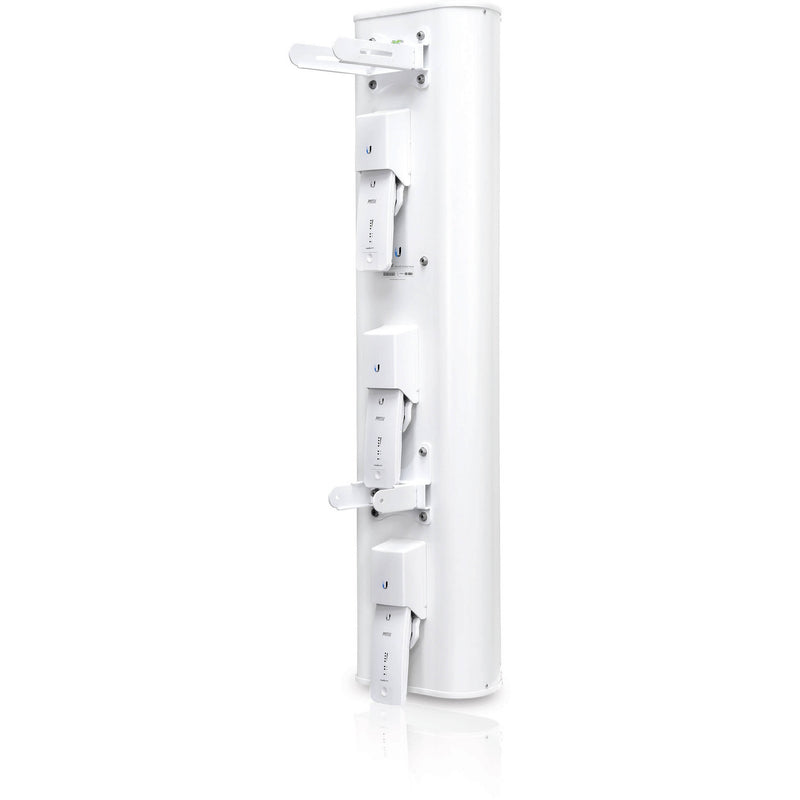

With the ability to install three Rocket5ac Prism radios, the airPRISM 5 GHz 3x30° HD Sector Antenna from Ubiquiti Networks provides three separate 30° beamwidth signal transmissions. The configuration of the radios makes this HD sector antenna a perfect solution for point-to-multipoint setups and with enhanced noise isolation and beam performance users benefit from a stronger signal with enhanced data rates. This antenna also operates on the less congested 5 GHz frequency offering a more reliable connection with reduced interference.
- Three Built-in Radios
- Three Rocket5ac Prism radios mounted on a single airPrism antenna maximizes throughput in an efficient tower footprint, minimizing installation and tower costs.
- Powerful Performance
- Highly resistant to noise interference, the airPrism antenna provides superior beam performance in high-density areas for high-capacity, multipoint networks.
- Plug-and-Play Integration
- The airPrism antenna and Rocket5ac Prism radios have been designed to seamlessly work together. Every airPrism antenna has three built-in Rocket radio mounts, so installation requires no special tools.
Snap the three Rocket5ac Prism radios securely into place and mount the antenna for your PtMP link.
UPC: 810354021947
| Frequency Range | 5.15 - 5.85 GHz |
| Gain | 22 dBi |
| Hpol Beamwidth | 3 x 30° (6 dB) |
| Vpol Beamwidth | 3 x 30° (6 dB) |
| Electrical Beamwidth | 8° |
| Electrical Downtilt | 2° |
| Maximum VSWR | 1.75:1 |
| Polarization | Dual-linear |
| Cross-Polarization Isolation | 30 dB minimum |
| Interfaces | 6 x RP-SMA connectors (weatherproof) |
| Compatible Radios | Rocket5ac Prism, model R5AC-PRISM |
| Wind Loading | 120 lbf @ 125 mph / 534 N @ 200 km/h |
| Wind Survivability | 125 mph / 200 km/h |
| Mounting | Universal Pole Mount, Rocket Bracket, and Weatherproof RF Connectors Included |
| ETSI Specification | EN 302 326 DN2 |
| Certifications | CE, FCC, IC |
| Dimensions | 12.70 x 7.93 x 51.18" / 322.6 x 201.5 x 1300.0 mm |
| Weight | 28.9 lb / 13.1 kg |
| Packaging Info | |
|---|---|
| Package Weight | 36.2 lb |
| Box Dimensions (LxWxH) | 60.0 x 16.0 x 11.0" |
In the Box
Ubiquiti Networks airPRISM 5 GHz 3x30° HD Sector Antenna
- Universal Pole Mount
- Rocket Bracket
- Weatherproof RF Connectors
- Limited 1-Year Manufacturer Warranty
