- Supports Resolutions up to 1920 x 1440
- USB PC Interface
- OSD Security
- Auto-Scan Function
- Cascade Configuration
- Hotkey Functions
- Plug & Play
- LED Indicators
- CE, FCC, and RoHS Compliant

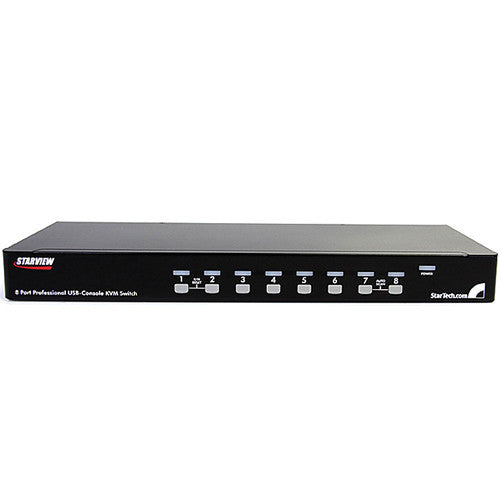

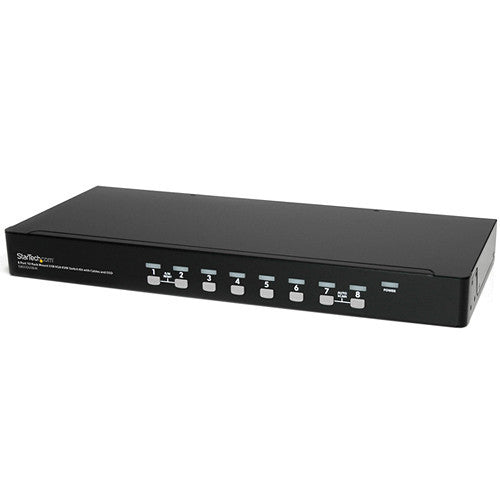

The black 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables from StarTech offers a KVM switch that includes all of the cables and accessories required to connect 8 servers or PCs right out of the box, making setup convenient and simple. The USB KVM switch allows you to control up to 8 USB-connected computers from a single keyboard, mouse, and display, providing maximum control through hotkey command-based switching or front panel push-buttons, with the added configurability and convenience of an On-Screen Display. A suitable addition to server room operations, the 8-port switch can be rackmounted into 1U of cabinet space and can be cascaded with multiple KVM switches to enable control of up to 64 computers from this single switch.
- The KVM Switch Kit includes the USB/VGA KVM cables to connect 8 servers and PCs, making setup convenient and simple
- Maximum compatibility with USB keyboard and mouse combos, and wireless setups; extracts the keyboard strokes from the USB connection, ensuring your setup will work flawlessly
- Rugged rack mountable metal chassis allows for versatility and durability in most environments
- Applications:
- Useful in software QA labs where testing is being done across multiple platforms
Great for PC test/burn-in computer control
Central control for multiple systems in a data center
Effectively manage a server farm from a single console with cascaded units
Manufacturing line computer control and management
- OSD security option allows selected KVM ports to be password-protected from unauthorized use
- Auto-scan function automatically switches between connected PCs sequentially
- Cascade configuration expands system capability
- Hotkey functions allow easy computer access
- Identifies and selects computers by the names assigned
- Plug-and-play system configuration
UPC: 065030843331
| Hardware |
| KVM Ports | 8 |
| PC Interface | USB |
| PC Video Type | VGA |
| Rackmount | Yes |
| Rack Height | 1U |
| Daisy Chain | Yes |

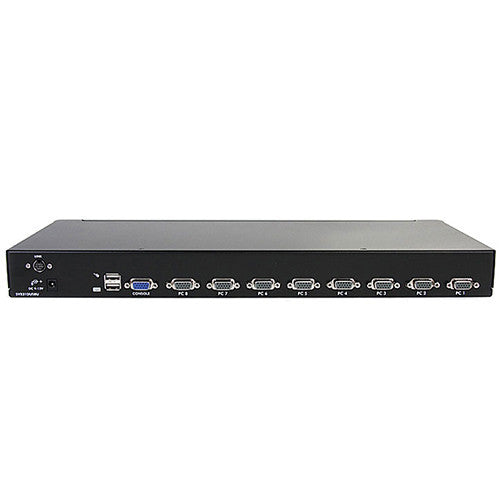

| Connectors | Console Interfaces: 1 x VGA (15-pin; high density D-Sub) female
2 x USB A (4-pin) female
Host Connector: 8 x VGA (15-pin; high density D-Sub) female |
| Performance |
| Maximum Analog Resolution | 1920 x 1440 at 60 Hz (1920 x 1200 at 60 Hz - wide screen) |
| Widescreen Supported | Yes |
| Maximum Number of Users | 1 |
| Port Selection | Push button, hotkeys, and OSD (On Screen Display) |
| Indicator |
| LED Indicators | 1 x green - power
8 x green - PC online
8 x red - PC selected |
| Power |
| Input Voltage | 110 ~ 240 AC |
| Output Voltage | 12 DC |
| Output Current | 1 A |
| Center Tip Polarity | Positive |
| Environmental |
| Operating Temperature | 41 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to 140°F (-20 to 60°C) |
| Relative Humidity | 0~80% |
| Compliance | CE, FCC, and RoHS |
| Physical Characteristics |
| Enclosure Type | Steel |
| Dimensions (W x H x D) | 17.1 x 1.8 x 7.1" (435 x 45 x 180 mm) |
| Weight | 4.8 lb (2.2 kg) |
| Packaging Info |
| Package Weight | 10.7 lb |
| Box Dimensions (LxWxH) | 23.0 x 10.7 x 4.8" |

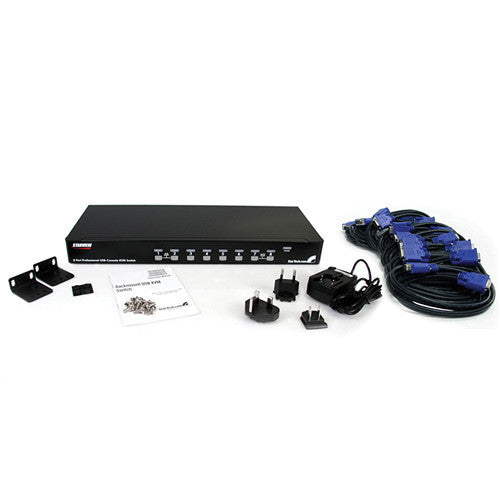

In the Box
StarTech 8-Port 1U Rackmount USB KVM Switch Kit with OSD and Cables (Black)
- 2 x Mounting Brackets
- 8 x 6' (1.8 m) 2-in-1 USB/VGA KVM Cables
- 1 x Power Adapter
- Limited 3-Year Warranty
