Description
Smart-AVI QuadKVM Overview
- 1Description
- 2Functions
- 3Advanced Viewing Settings
- 4Controls

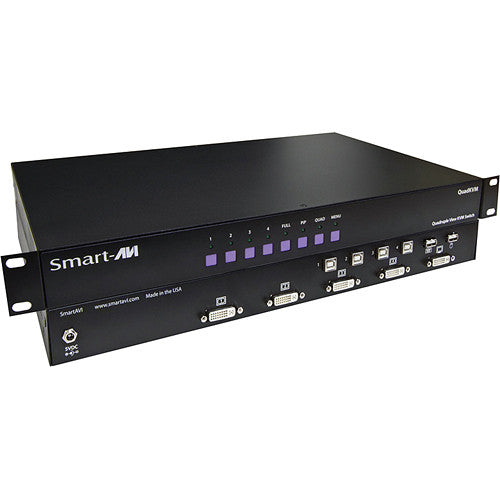

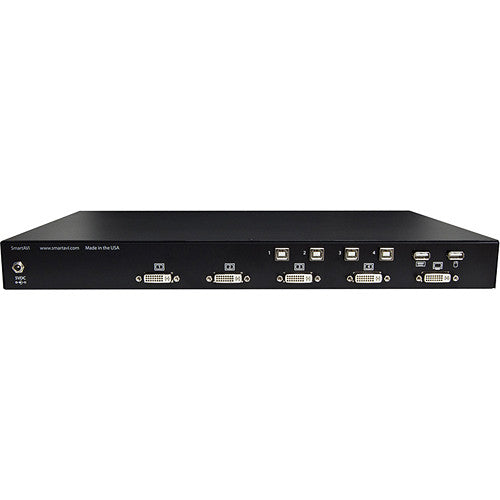

The Smart-AVI 4-Port DVI USB 1.1/1.0 QuadKVM Switch is designed to monitor and control 4 analog and digital video sources through a single display and a set of interface controls. It is suitable for applications that require you to monitor up to 4 computers at the same time. You can choose from 4 advanced screen settings that include Quad Mode, Dual Mode, Full-screen Mode and Picture-in-Picture Mode to view multiple sources simultaneously.
All the video sources can be accessed and controlled via the USB keyboard and mouse. You can also control QuadKVM switch via keyboard hot-keys that make the functions switch available at the console keyboard. The KVM switch supports DVI-D resolution up to 1900 x 1200 and VGA resolution up to 1600 x 1200, allowing you to view clean and crisp high-resolution images.
Functions
Advanced Viewing Settings
Controls
In the Box
- Smart-AVI 4-Port DVI USB 1.1/1.0 QuadKVM Switch
- 1-Year Warranty
Guides & Manuals
- Description
- Functions
- Advanced Viewing Settings
- Controls
Smart-AVI QuadKVM Specs
| Video | |
| Format | DVI-D Single Line |
| Maximum Pixel Clock | 165 MHz |
| Input/Output Interface | 4 x DVI-D 29-pin female / 1 x DVI-D 29-pin female |
| Resolution | Up to 1920 x 1200 at 60 Hz |
| DDC | 5 V p-p (TTL) |
| Input Equalization | Automatic |
| Cable Length | Input/Output: Up to 20' (6 m) |
| USB | |
| Signal Type | USB 1.1 and 1.0 |
| Input Interfaces (TX) | 4 x USB Type B (Female) |
| Output Interfaces (RX) | 2 x USB Type A (Female) |
| Controls | |
| Keyboard | Hot Keys with OSD |
| Front Panel | Tact Switch with OSD |
| RS-232 | RS-232 Commands |
| General | |
| External Power Supply | 100 - 240 VAC / 5 VDC 4 A at 20 W |
| Operating Temperature | 32 to 131° F (0 to 55° C) |
| Humidity | Up to 95% |
| Approvals | UL, CE, ROHS Compliant |
| Dimensions (W x H x D) | 17 x 1.7 x 10.2" (43 x 4.4 x 26 cm) |
| Weight | 5 lb (2 kg) |
