Description

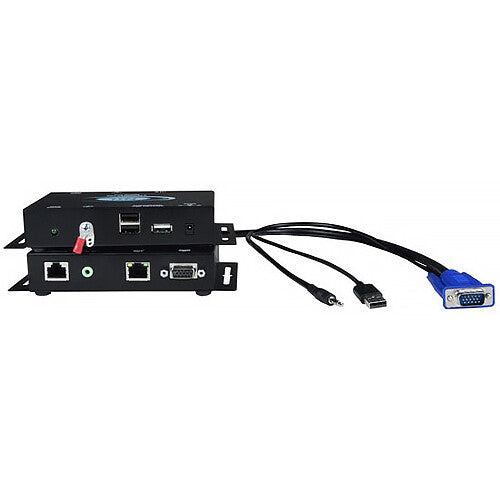

Network Technologies ST-C5USBVU-1000S Overview
The XTENDEX VGA/USB & KVM Extender with Additional USB Port via Cat Cable from Network Technologies extends VGA, USB, and KVM to distances up to 1000' over a single Cat 5 cable and with resolutions up to 2048 x 1536. The kit consists of a local transmitter and a remote receiver, offering 15-pin HD and USB 2.0 connectivity with a 12 Mb/s maximum data rate, supporting any USB 2.0 devices. The video quality from the transmitter to the receiver is automatically adjusted, depending upon the length and standard of the Cat cable being employed. AC adapters are provided with the kit to power the included transmitter and receiver units.
Additional Details
- High-quality, rugged steel construction with durable powder-coat finish
- Automatically adjust video quality and color skew for crystal clear video with longer cables
- DDC2B emulation support for remote monitor
- Built-in surge protection
- For the additional USB port on the local unit, connect any type of USB device
- For the additional USB port on the remote unit, use to connect a USB printer, touchscreen monitor, interactive whiteboard, or CAC card reader
- Integrated mounting brackets for easy surface/wall mounting
Items Included
- Network Technologies XTENDEX VGA/USB & KVM Extender with Additional USB Port via Cat Cable (1000')
- Local Transmitter
- Remote Receiver
- 2 x AC Adapter
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies ST-C5USBVU-1000S Specs
| Inputs/Outputs |
Transmitter:
3x USB-A 2.0 Female Input 1x RJ45 (Ethernet) Female Output 1x DE-15/DB-15 (VGA) Female Output 1x DE-15/DB-15 (VGA) Male Output 1x USB-A 2.0 Male Output Receiver: 3x USB-A 2.0 Female Input 1x RJ45 (Ethernet) Female Input 1x DE-15/DB-15 (VGA) Female Output 1x USB-A 2.0 Female Output |
| OS Compatibility |
Windows / macOS / Linux
|
| Maximum Transmission Distance |
1000' / 304.8 m
|
| Supported Resolutions |
2048 x 1536
|
| Transmission Method |
CAT5/CAT5e/CAT6 Cable
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Conditions |
32 to 100?F / 0 to 38?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Certifications |
CE, RoHS, TAA
|
| Dimensions |
5.1 x 3.1 x 1.2" / 130.0 x 79.0 x 31.0 mm
|
