Description
Network Technologies ST-C5USBVA-1000S Overview

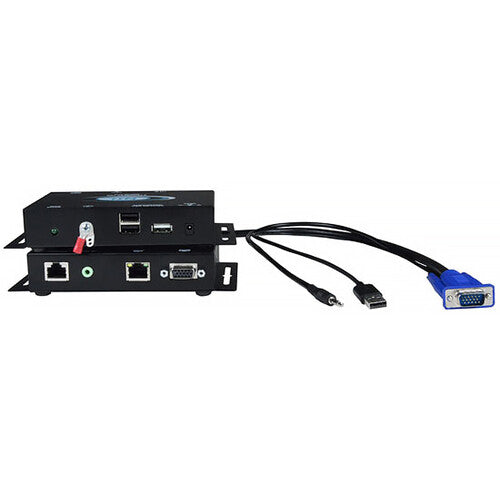

Extend a USB keyboard, USB mouse, and a VGA monitor up to 1000' over a single Cat 5/5e/6 cable with the XTENDEX USB KVM Extender from Network Technologies. Equipped with a female 15-pin VGA connector and two female USB-A ports, the transmitter and receiver set supports resolutions up to 2048 x 1536 and DDC2B emulation for a remote monitor. Constructed from rugged steel with a durable powder coat finish, the devices boast built-in surge protection and integrated mounting brackets.
Additional Details
- USB maximum data rate: 12 Mb/s
- Automatically adjust video quality and color skew for crystal clear video with longer cables
- Adjusts the video quality and color skew to compensate for varying lengths of Cat 5/5e/6 cable
- Manual fine adjustments are made via keyboard commands
- Settings are automatically stored, so that he next time the units are powered on, the adjustment will be recalled
Items Included
- Network Technologies XTENDEX USB KVM Extender with Audio via Cat Cable (1000')
- Local Transmitter
- Remote Receiver
- 2 x 5 VDC, 3A Power Adapter
- DB9 Female to RJ45 Female Adapter
- Cat 5 Patch Cable (5')
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies ST-C5USBVA-1000S Specs
| Inputs/Outputs |
Transmitter:
1x DE-15/DB-15 (VGA) Male 1x USB-A 2.0 Male 1x RJ45 (Ethernet) Female Output Receiver: 1x DE-15/DB-15 (VGA) Female 2x USB-A 2.0 Female 1x RJ45 (Ethernet) Female Input |
| OS Compatibility |
Windows / macOS / Linux
|
| Maximum Transmission Distance |
1000' / 304.8 m
|
| Supported Resolutions |
2048 x 1536 @ 60 Hz
1920 x 1440 @ 60 Hz 1920 x 1200 @ 60 Hz 1280 x 1024 @ 60 Hz |
| Transmission Method |
CAT5/CAT5e/CAT6 Cable
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Conditions |
32 to 100?F / 0 to 38?C at 5 to 90% Humidity
|
| Storage Conditions |
-22 to 140?F / -30 to 60?C at 5 to 90% Humidity
|
| Certifications |
CE, RoHS, TAA
|
| Material of Construction |
Steel
|
| Dimensions |
5.1 x 3.1 x 1.2" / 130.0 x 79.0 x 30.0 mm
|
