Description

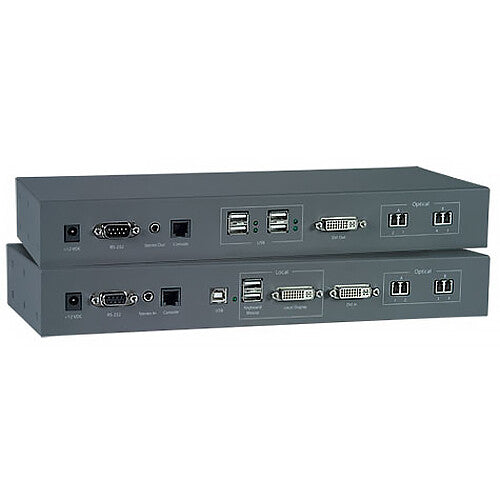

Network Technologies ST-FOUSB2DARS-LC Overview

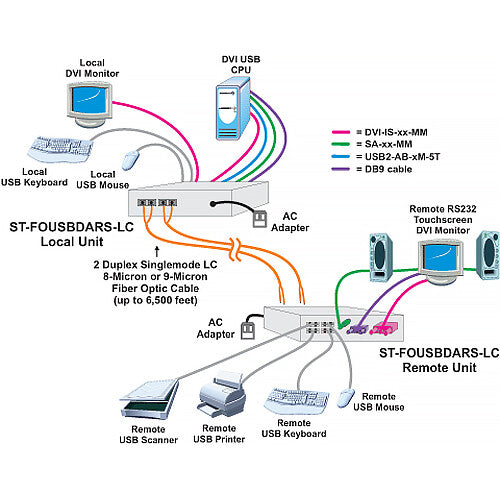

Extend DVI video, audio, and RS-232 control signal over LC fiber optic cables to distances up to 6500' with the XTENDEX USB Extender from Network Solutions. The versatile transmitter and receiver set works with all USB-enabled computers and supports video resolutions up to 1080p and computer resolutions up to 1920 x 1200. The units are compliant with USB 2.0 standards and come with hardware for rackmount applications.
Additional Details
- Supports all USB-enabled computers and their associated peripherals
- Signal transmission via four-strand, single-mode, or multimode LC fiber optic cable
- Using single-mode cable allows extension to 6500'
- Using multimode cable allows extension to 1650'
- Supports HDTV resolutions to 1080p and computer resolutions to 1920 x 1200 (WUXGA)
- Local Mode allows the computer to see USB devices connected to the transmitter
- Remote Mode allows the computer to see USB devices connected to the receiver
- Cables can be installed in conduit prior to extender installation
- Extend keyboards, mice, printers, game controllers, flash drives, touch screen monitors, whiteboards, etc.
- Compliant with USB 2.0 (low/full speed) standards
- Low RFI/EMI for sensitive applications
- An optical link is not susceptible to eavesdropping or electromagnetic interference
Items Included
- Network Technologies XTENDEX USB Extender with DVI Video, Audio & RS-232 via Fiber (6500')
- Local Transmitter
- Remote Receiver
- 2 x 12 VDC, 3A Power Adapter
- 15-Pin Male to Female Cable (3')
- CD with User Manual
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies ST-FOUSB2DARS-LC Specs
| Inputs/Outputs |
Transmitter:
2x USB-A Female 1x USB-B 2x DVI-I 1x RJ45 (Ethernet) 1x DE-9/DB-9 (RS232) Female 2x LC (Fiber) Output 1x 1/8" / 3.5 mm (Audio) Receiver: 4x USB-A Female 1x DVI-I 1x RJ45 (Ethernet) 1x DE-9/DB-9 (RS232) Male 2x LC (Fiber) Input 1x 1/8" / 3.5 mm (Audio) |
| Maximum Transmission Distance |
6500' / 1981.2 m
|
| Supported Resolutions |
1920 x 1080
1920 x 1200 |
| Transmission Method |
Multimode/Singlemode Cable
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 5 to 85% Humidity
|
| Storage Conditions |
14 to 185?F / -10 to 85?C at 5 to 85% Humidity
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
12.6 x 5.1 x 1.7" / 32.0 x 13.0 x 4.3 cm
|
