Description
Network Technologies ST-IPUSBD-R-DH Overview

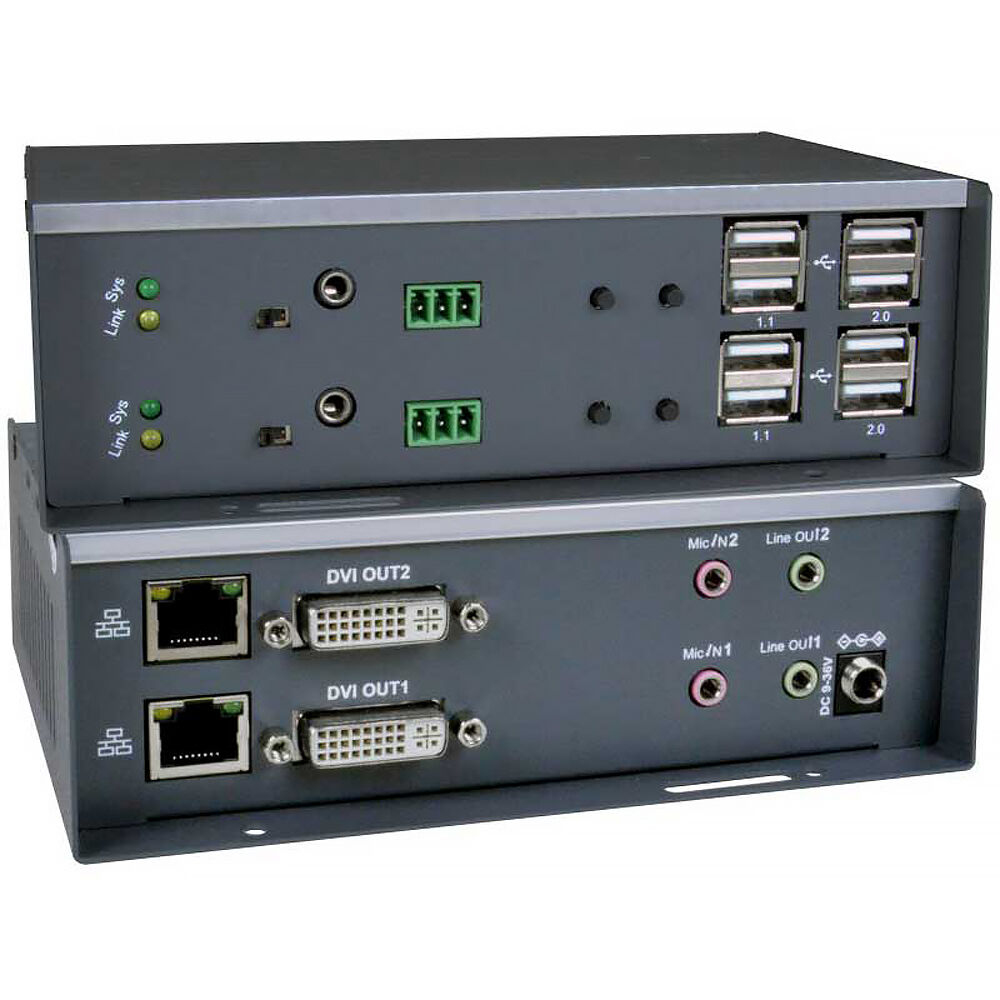

The XTENDEX Dual Monitor DVI/USB KVM Extender Receiver from Network Technologies is a remote DVI/USB KVM receiver that supports point-to-point transmission signals up to 472'. It is equipped with two DVI-I ports handling single-link digital DVI and eight USB-A ports, with four of these supporting USB 2.0 and the remaining four supporting USB 1.1. The device also features four 3.5mm stereo audio ports for audio output and microphone input functions, and two RJ45 ports for sending/receiving video, audio, IR, and USB signals. It supports HDTV resolutions up to 1080p and computer resolutions up to 1920 x 1200 (WUXGA).
Additional Details

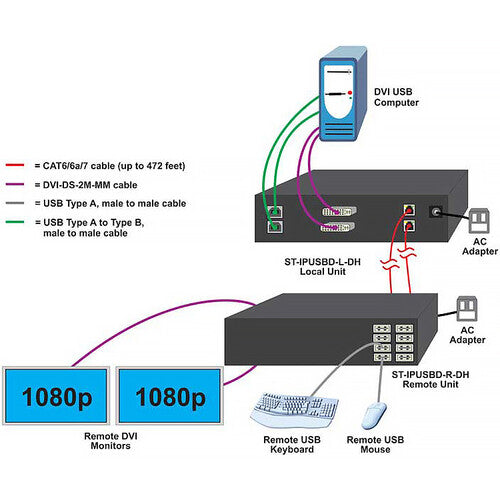

- Extends up to 472' in a point-to-point connection

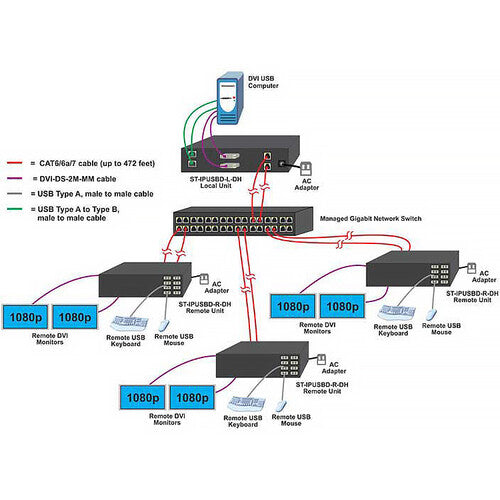

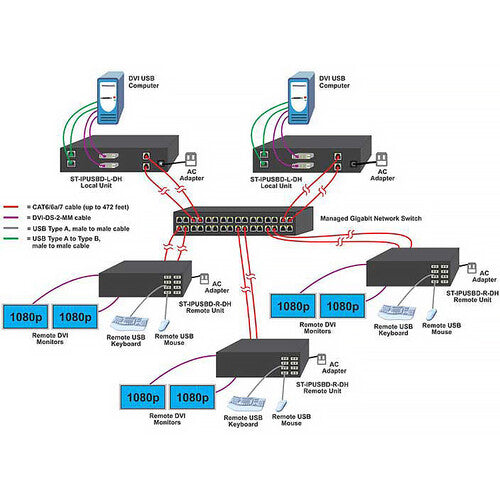

- Extends up to 944' in a point-to-point/point-to-many/many-to-many connection via a managed Gigabit network switch
- The maximum length between most switches and the local/remote unit is 472'
- The switch itself will determine the maximum distance
- HDCP 1.4 compliant
- USB ports for keyboard, mouse, flash drive, HDD, or touchscreen display
- Four USB 2.0 and four USB 1.1 connectors
- The keyboard and mouse are hot-pluggable

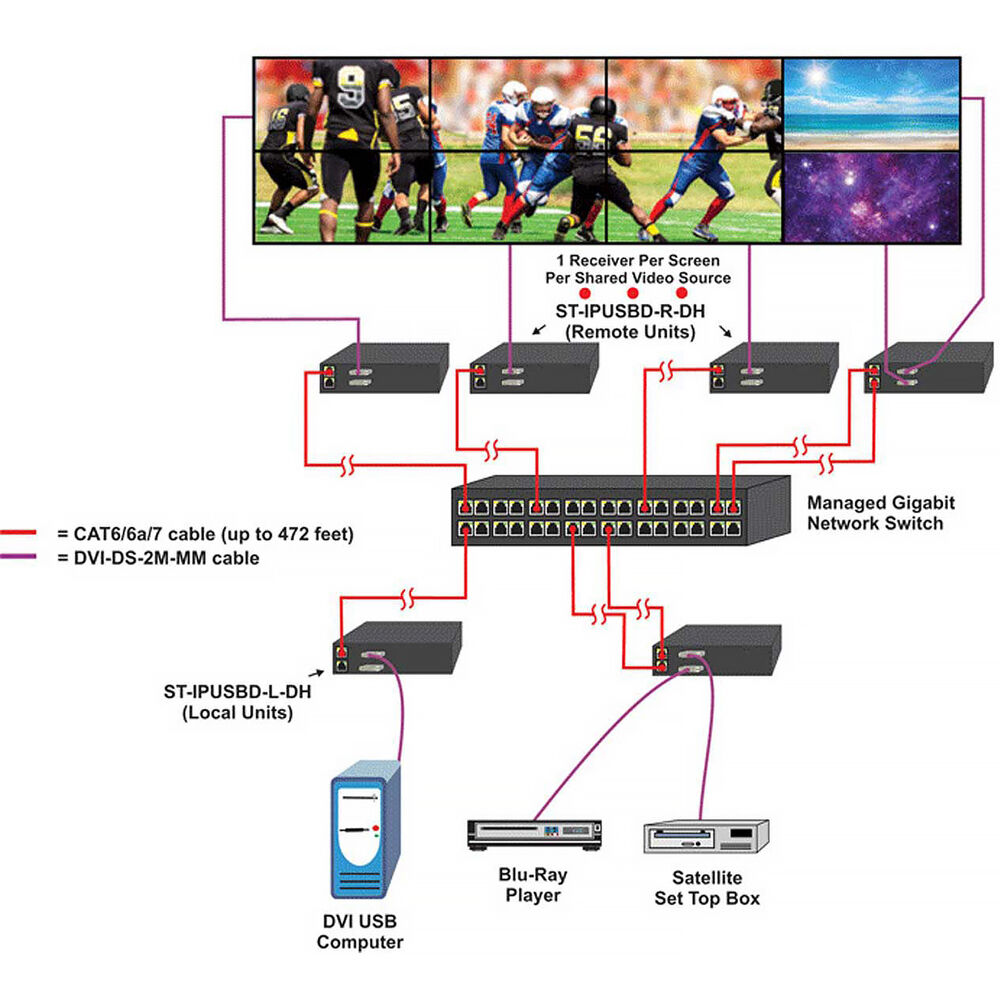

- Supports video wall installations from 1 x 2 to 4 x 4 screens
- Displays can be rotated to 180 and 270?
- Plug-and-Play installation allows receivers to find the transmitter automatically on the same network
- Manage connections and video wall configuration with a web interface or a network switch that supports VLAN
- Each VLAN acts as a separate HDMI over IP channel on the network
- When using multiple remote units, there are two USB control modes: Exclusive Mode and Sharing Mode
- USB Exclusive Mode: Only one remote unit can have USB control over the source computer at any time
- USB Sharing Mode: Multiple remote units share the control of the source computer
- Up to five USB devices will be recognized by the computer
- Supports the DDC2B protocol
- Selectable through the web interface
- Integrated mounting brackets for easy surface/wall mounting
Items Included
- Network Technologies XTENDEX Dual-Monitor DVI/USB KVM Extender Receiver with Video Wall Support over IP (472')
- 12 VDC, 5A Power Supply with Power Cord
- Limited 2-Year Manufacturer Warranty
Additional Resources
Network Technologies ST-IPUSBD-R-DH Specs
| Inputs/Outputs |
Receiver:
8x USB-A Female 2x DVI-I (Video) Female Output 2x RJ45 Female 2x Block (RS232) 4x 1/8" / 3.5 mm (Audio) Female 2x 1/8" / 3.5 mm (IR) Female |
| OS Compatibility |
Windows / macOS / Linux
|
| Maximum Transmission Distance |
472' / 143.9 m
|
| Supported Resolutions |
1920 x 1080
1920 x 1200 |
| Transmission Method |
CAT6/CAT7 Cable
|
| Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
28.8 W
|
| Operating Conditions |
32 to 122?F / 0 to 50?C at 0 to 80% Humidity
|
| Storage Conditions |
-4 to 185?F / -20 to 85?C at 0 to 80% Humidity
|
| Certifications |
CE, FCC, RoHS, TAA
|
| Dimensions |
6.3 x 4.3 x 2.0" / 160.0 x 110.0 x 50.0 mm (Receiver)
|
