Description
Network Technologies ST-C6USB4K18GB-230T Overview

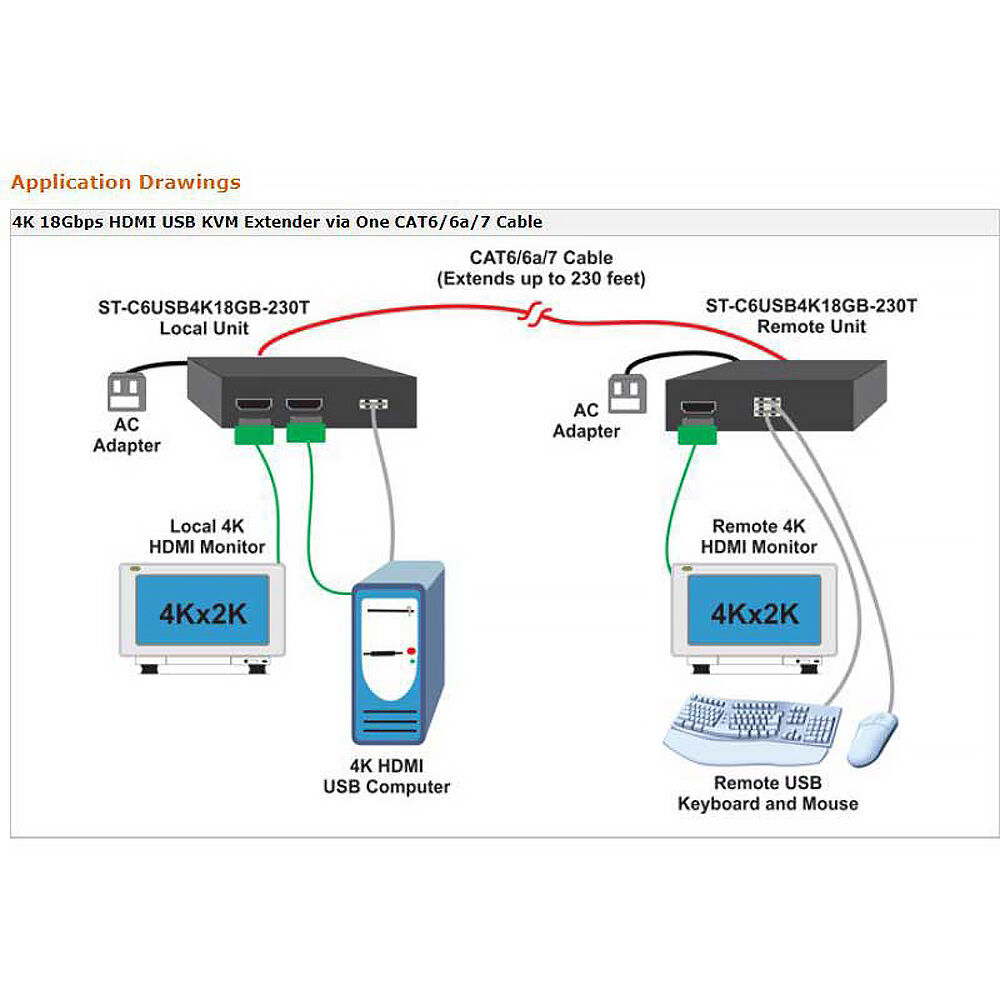

The XTENDEX 4K 18 Gb/s HDMI, USB & KVM Extender Kit from Network Technologies is a transmitter and receiver set that can send USB, HDMI 2.0, and KVM signals to distances up to 230' via a single Cat 6/6a/7 cable. The versatile system supports a video bandwidth up to 18 Gb/s and resolutions up to DCI 4K at 24 and 25 fps. The HDCP 1.4/2.2-compliant set offers built-in surge and ESD protection, and it handles up to 36-bit Deep Color. The set comes with all the necessary mounting hardware.
Signal Transmission
- Supports 3840 x 2160 at 60 fps and 4096 x 2160 at 24/25 fps YUV 4:4:4
- HDTV resolutions to 1080p at 60 fps, and up to 1920 x 1200 (WUXGA)
- Zero latency
- Transmission distances up to 230'
HDMI Features
- HDMI 2.0
- Up to 36-bit Deep Color
- RGB, YCbCr 4:4:4, YCbCr 4:2:2, and YCbCr 4:2:0
- Dolby Digital, DTS, and LPCM audio are supported
- Video bandwidth up to 18 Gb/s
- 3-D and HDR10
Additional Details
- HDCP 1.4/2.2 compliant
- Keyboard and mouse are hot-pluggable
- Supports plug-and-play specification
- Built-in default EDID table
- Supports HDMI-embedded digital audio and SPDIF digital audio output
- Two USB ports for keyboard, mouse, or touch screen monitor
- Compliant with USB 1.1 (low/full speed) standards
- Supports USB touchscreen monitor
- Built-in surge and ESD protection
- Mounting brackets included for easy surface/wall mounting
Items Included
- Network Technologies XTENDEX 4K 18 Gb/s HDMI, USB & KVM Extender Kit

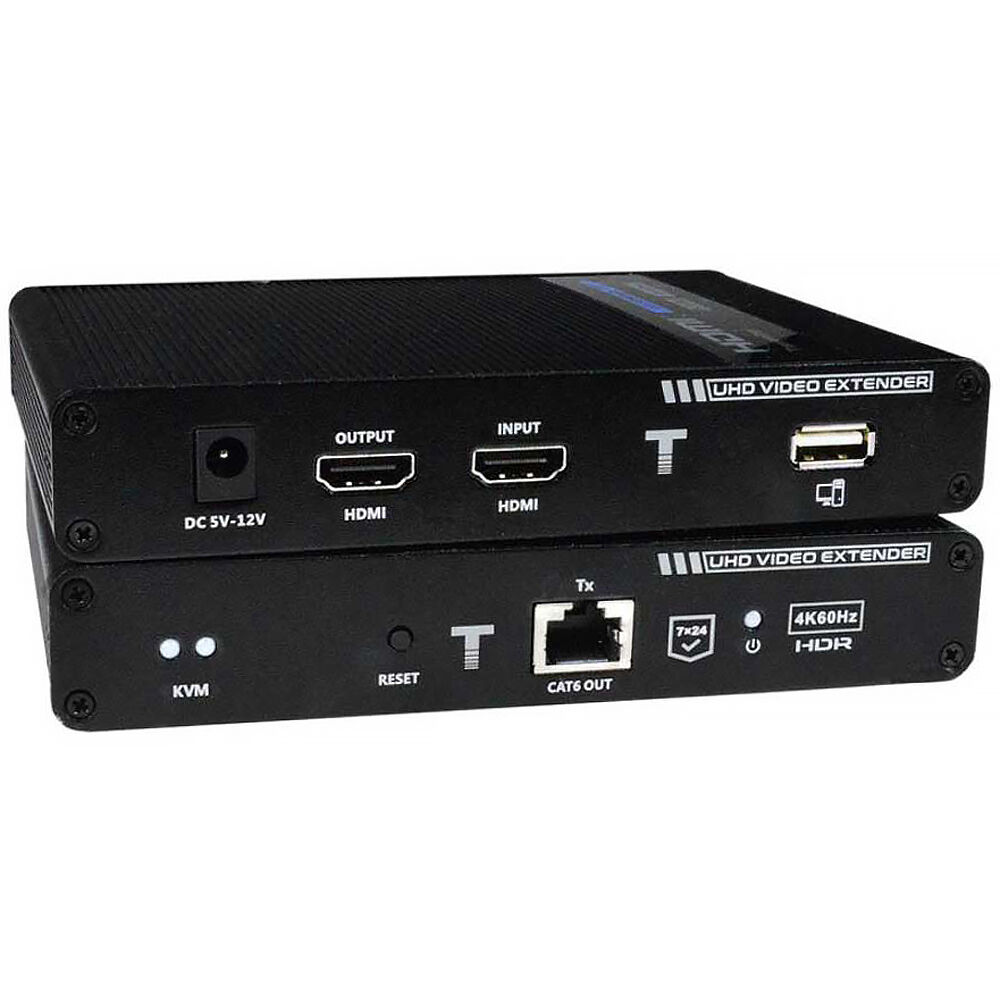

- Local Transmitter

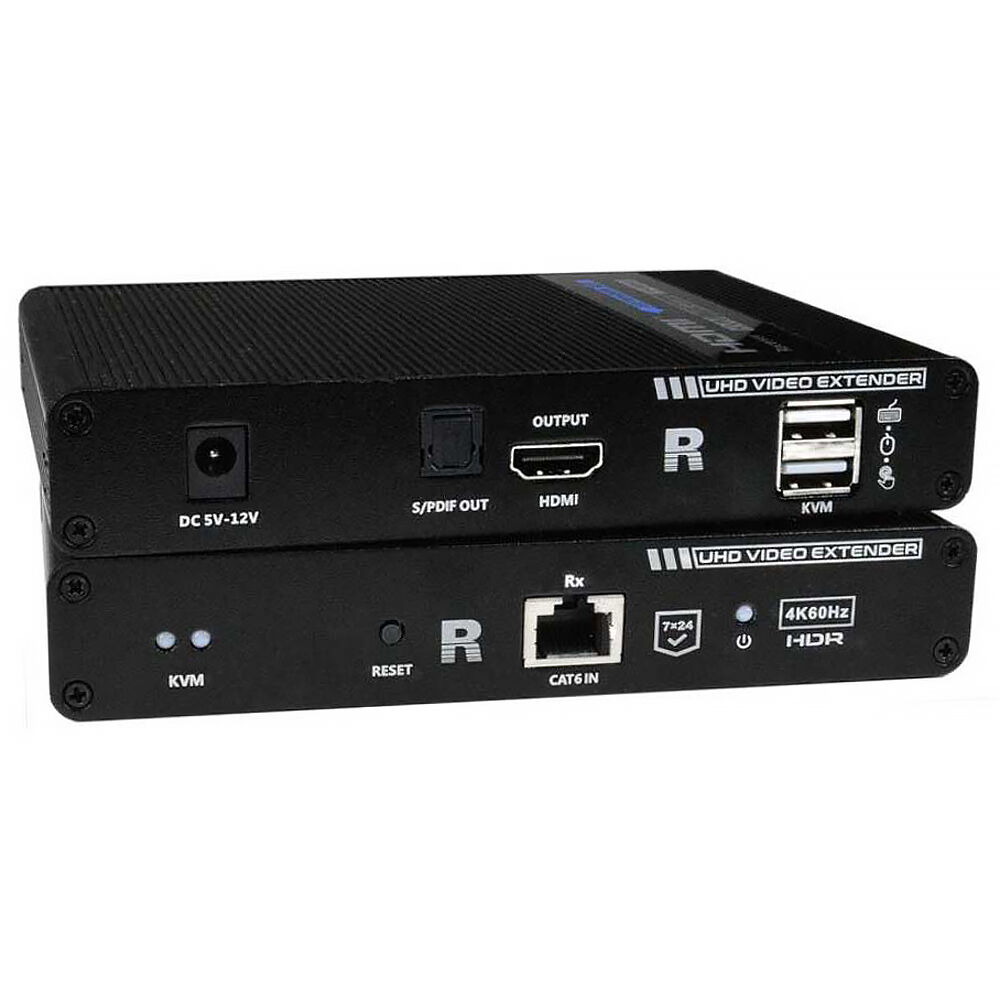

- Remote Receiver
- 5 VDC, 2A Power Adapter (Transmitter)
- 5 VDC, 3A Power Adapter (Receiver)
- USB Cable (4')
- Set of Mounting Hardware
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies ST-C6USB4K18GB-230T Specs
| Inputs/Outputs |
Transmitter:
1x HDMI Type-A (Video) Female Input 1x HDMI Type-A (Video) Female Output 1x USB-B 2.0 Female 1x RJ45 (Ethernet) Female Receiver: 1x HDMI Type-A (Video) Female Output 2x USB-A Female 1x RJ45 (Ethernet) Female 1x TOSLINK (S/PDIF) |
| OS Compatibility |
Windows / macOS / Linux
|
| Maximum Transmission Distance |
230' / 70.1 m
|
| Supported Resolutions |
4096 x 2160 @ 24 Hz
4096 x 2160 @ 25 Hz 3840 x 2160 @ 60 Hz 1920 x 1200 1920 x 1080 @ 60 Hz |
| Transmission Method |
CAT6/CAT7 Cable
|
| Input Power |
5 VDC at 2 A
110 to 240 VAC, 50 / 60 Hz |
| Power Consumption |
8.55 W
|
| Operating Conditions |
-4 to 140?F / -20 to 60?C at 0 to 90% Humidity
|
| Storage Conditions |
-22 to 158?F / -30 to 70?C at 0 to 90% Humidity
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
5.9 x 4.2 x 1.0" / 150.0 x 106.0 x 26.0 mm
|
