Description

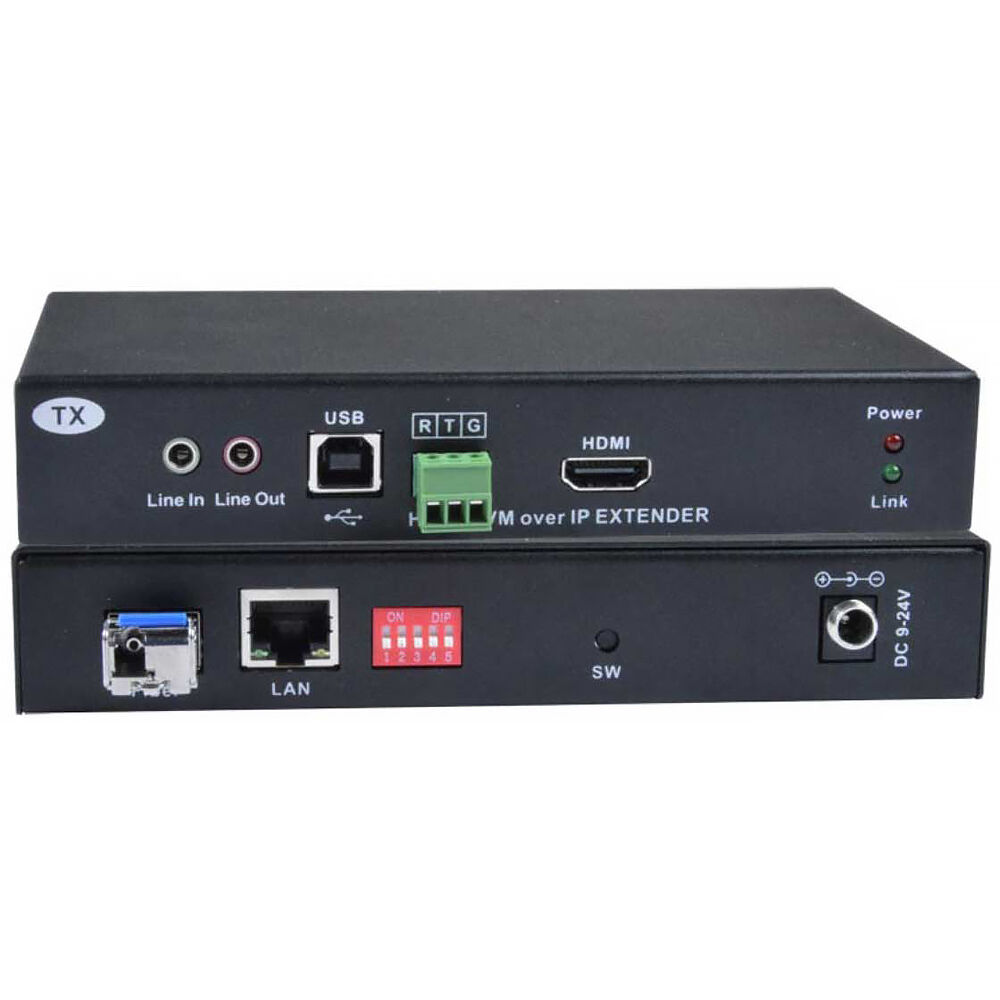

Network Technologies ST-C6FOUSB4K-LC Overview
Extend 4K x 2K at 30 fps and KVM up to 328' via Cat 6/6a/7 or up to 6.21 miles via LC single-mode fiber optic cable using the XTENDEX 4K 10.2 Gb/s HDMI/USB & KVM Extender from Network Technologies. The versatile extender consists of a local unit, which connects to your computer, and a remote unit that connects to an optional monitor with an HDMI port, providing bidirectional 3.5mm stereo audio speakers and a microphone, full-duplex RS-232, and up to four USB devices (keyboard, mouse, flash drive, HDD, or display). The system supports EDID passthrough and comes with mounting brackets.
Signal Transmission
- Using Cat 6/6a/7 cable, you can extend 4K up to 328' and 1080p or 1920 x 1200 up to 492'
- Using a Gigabit switch, you can extend up to a total distance of 656' between the transmitter and receiver?the transmitter and receiver can each be extended 328' from the switch
- Using a single-mode 9-micron cable, you can extend signals up to 6.21 miles
- Using multimode 50-micron cable (OM2 and above), you can extend signals up to 1640'
HDMI Features
- HDMI 1.4
- 36-bit Deep Color
- RGB, YCbCr 4:4:4, YCbCr 4:2:2
- Dolby, DTS, Stereo, and LPCM
- Video bandwidth up to 340 MHz (10.2 Gb/s)
Additional Details
- HDCP 1.4 compliant
- Four USB 2.0 ports for keyboard, mouse, flash drive, HDD, or touchscreen display
- Keyboard and mouse are hot-pluggable
- Supports plug-and-play specification
- Using an unmanaged Gigabit network switch, you can extend up to 32 pairs in point-to-point connections
- Use the DIP switch on the transmitter and receiver to specify the ID for the unit
- Transmitter and receiver units with the same ID will connect to each other. (point-to-point only)
- Supports full-duplex RS-232 up to 115,200 baud
- EDID passthrough for the support of any HDMI display device
- Mounting brackets are included for easy surface/wall mounting
Items Included
- Network Technologies XTENDEX 4K 10.2 Gb/s HDMI/USB & KVM Extender
- Local Unit
- Remote Unit
- 2 x Power Supply
- 2 x Set of Mounting Brackets
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies ST-C6FOUSB4K-LC Specs
| Inputs/Outputs |
Transmitter:
1x 1/8" / 3.5 mm (IR) Female 1x 1/8" / 3.5 mm (Audio) Female Input 1x 1/8" / 3.5 mm (Audio) Female Output 1x USB-B 2.0 Female 1x HDMI Type-A (Video) Female Input 1x Block (RS232) 1x LC (Fiber) Female 1x RJ45 (Ethernet) Female Receiver: 1x HDMI Type-A (Video) Female Output 4x USB-A 2.0 Female 1x 1/8" / 3.5 mm (Audio) Female Input 1x 1/8" / 3.5 mm (Audio) Female Output 1x Block (RS232) 1x RJ45 (Ethernet) Female 1x LC (Fiber) |
| OS Compatibility |
Windows / macOS / Linux
|
| Maximum Transmission Distance |
6.2 Miles / 10.0 km
|
| Supported Resolutions |
4096 x 2160 @ 30 Hz
3840 x 2160 @ 30 Hz 1920 x 1200 1920 x 1080 |
| Transmission Method |
CAT6/CAT7/Multimode/Singlemode Cable
|
| Input Power |
12 VDC at 2 A
100 to 240 VAC, 50 / 60 Hz |
| Operating Conditions |
32 to 131?F / 0 to 55?C at 5 to 90% Humidity
|
| Storage Conditions |
-4 to 185?F / -20 to 85?C at 5 to 90% Humidity
|
| Certifications |
CE, FCC, RoHS
|
| Dimensions |
6.3 x 3.8 x 1.1" / 161.0 x 97.0 x 28.0 mm
|
