Description
Network Technologies RACKMUX-V17-N-8USBHD Overview

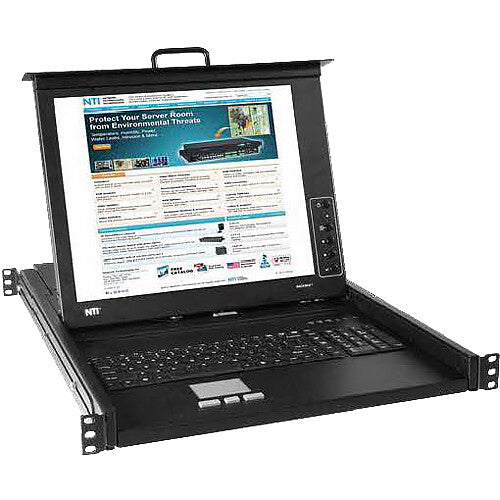

The RACKMUX Rackmount KVM LCD Drawer 8-VGA KVM Switch from Network Technologies is your all-in-one solution to access a server rack connected through a KVM switcher. Equipped with a three-button touchpad mouse, an 83-key keyboard and numpad, and a 17" 1280 x 1024 LCD panel, this rack-mountable switch and interface can be pulled out for operation with ease and securely stowed back into the rack once finished.
The LCD panel supports up to 1280 x 1024 resolutions at 76Hz via VGA connections on the rear of the switch. The rear RS232 ports allow for a remote connection to the switch as well as for upgrading its firmware. On-screen controls let you adjust the display settings. Both the RS232 port and the on-screen controls allow you to operate the individual VGA-connected devices.
Built from steel with a powder coated finish, the RACKMUX drawer is extremely durable. The torque-friction hinges prevent the monitor from wobbling, springing, or slamming shut. A front panel lock secures the drawer in place when not in use.
- Multiplatform support for PC, SUN, and MAC
- RoHS, CE compliant
- TAA compliant
Items Included
- Network Technologies RACKMUX Rackmount KVM LCD Drawer 8-VGA KVM Switch
- IEC Power Cord
- Rackmount Kit
- DB9 Female-to-RJ45 Female Adapter
- 5' RJ45-RJ45 Cat5 Patch Cable
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Network Technologies RACKMUX-V17-N-8USBHD Specs
| Panel Type |
LCD
|
| Display Size |
17"
|
| Native Resolution |
1280 x 1024
|
| Touchscreen |
No
|
| Viewing Angle (H x V) |
140 x 130?
|
| Maximum Brightness |
300 nits / cd/m2
|
| Video I/O |
8x DE-15/DB-15 Input/Output
1x RJ45 Output ( RS232 ) |
| Power Source |
AC Input
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Power Consumption |
40 W
|
| Color |
Black
|
| Material of Construction |
Steel
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 20 to 90% Humidity
|
| Storage Conditions |
-4 to 140?F / -20 to 60?C at 20 to 90% Humidity
|
| Dimensions |
23.91 x 19 x 1.75" / 60.73 x 48.3 x 4.45 cm
|
| Weight |
26 lb / 11.8 kg
|
