Description

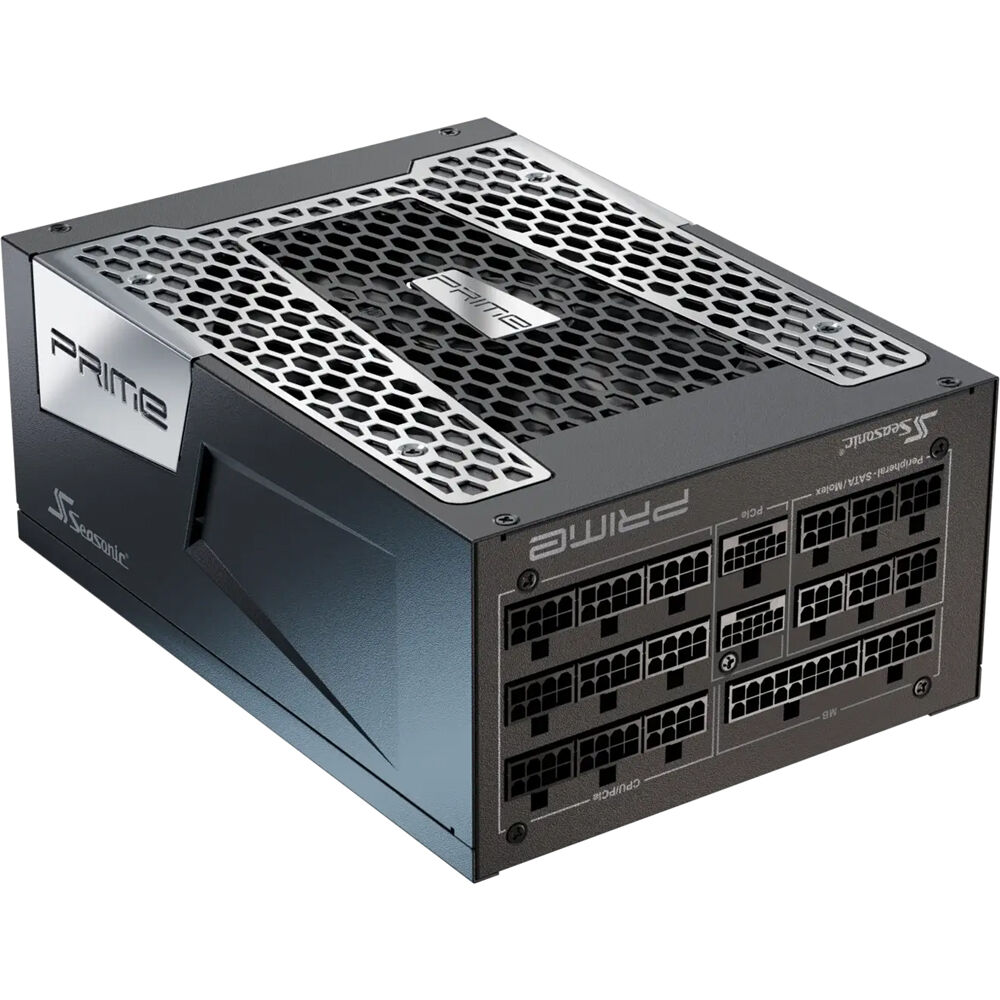

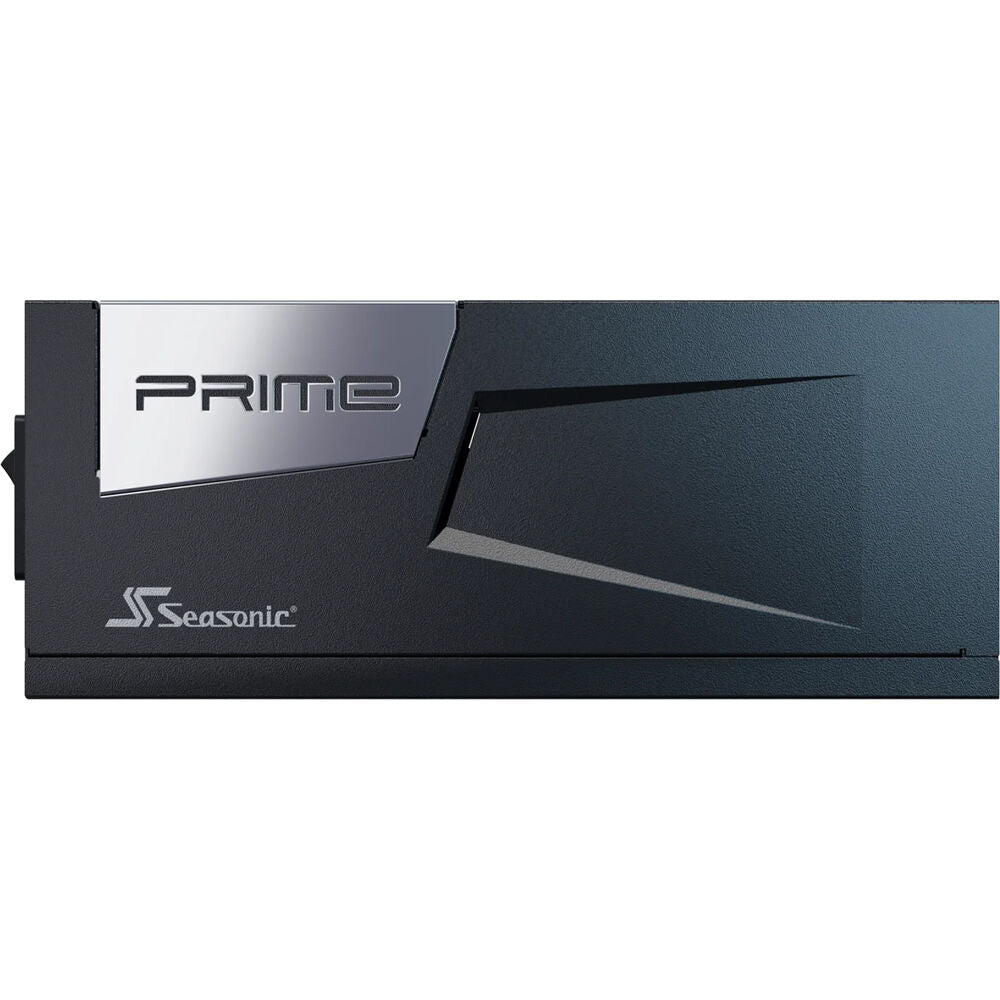

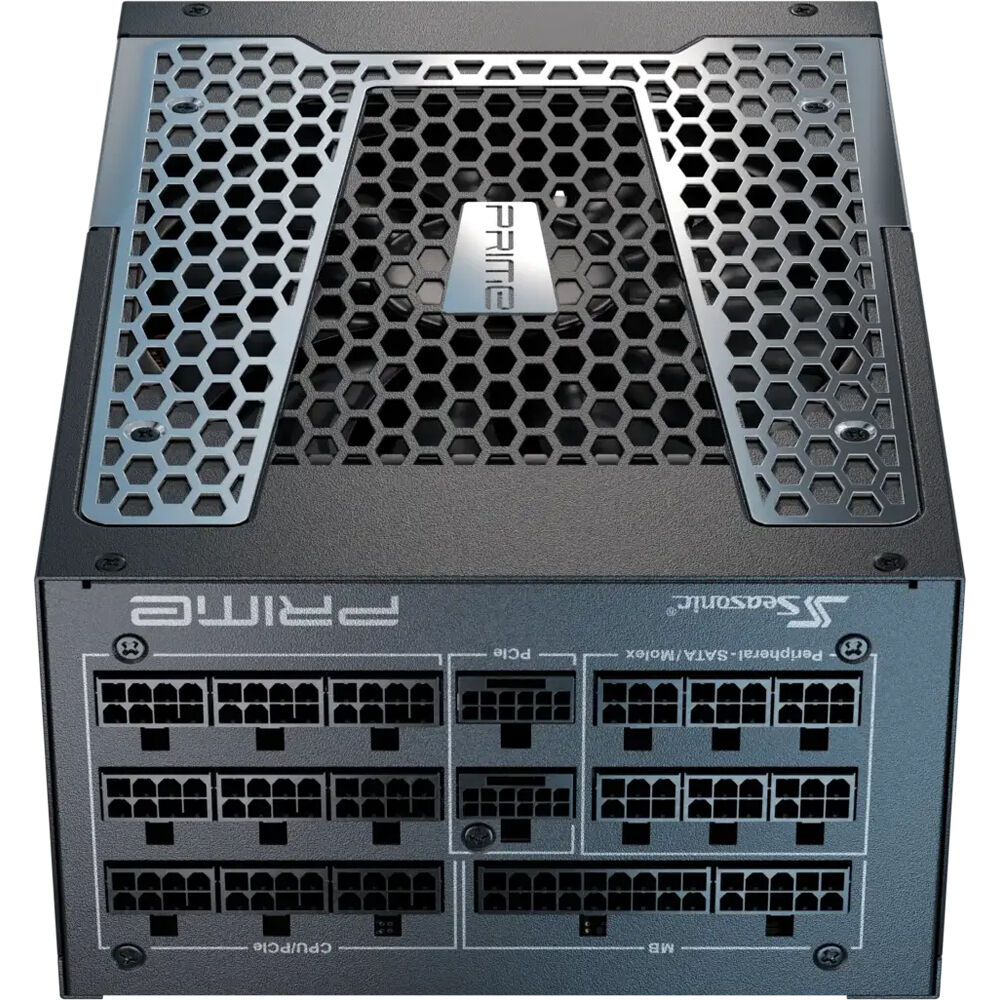

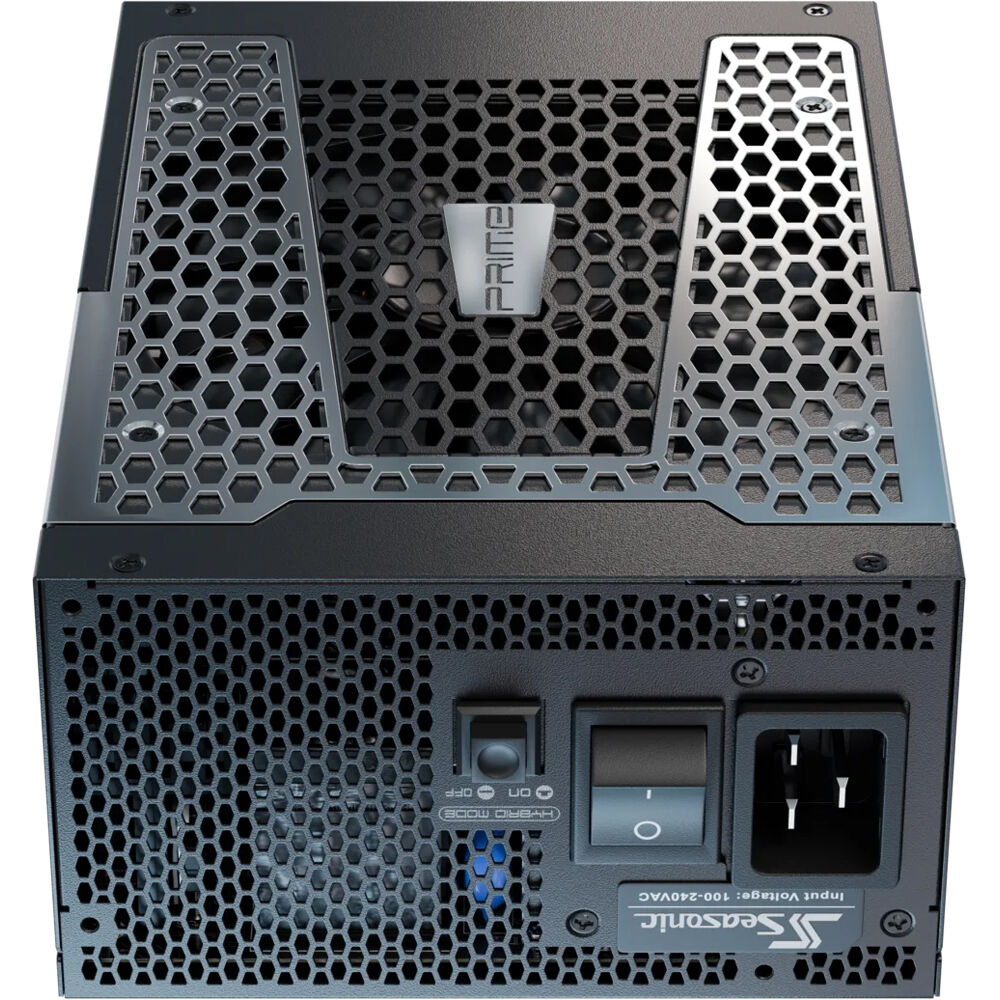

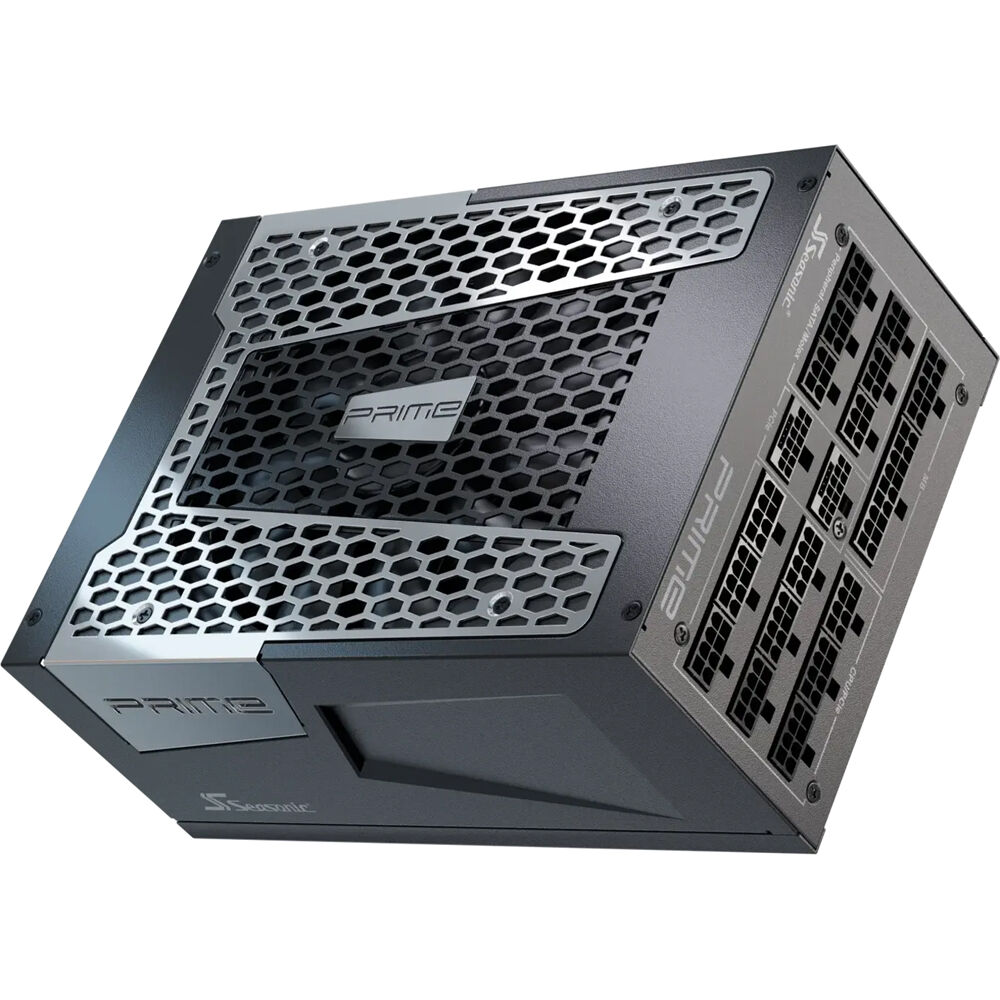

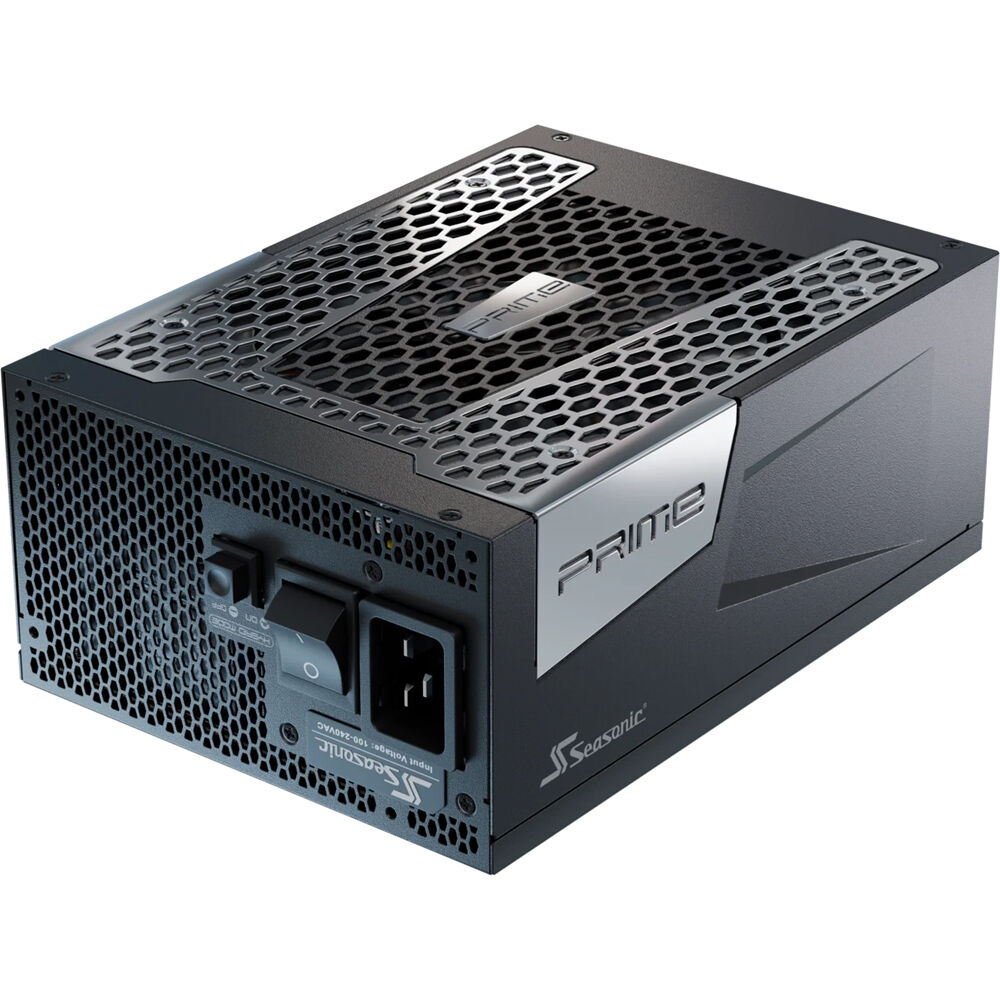

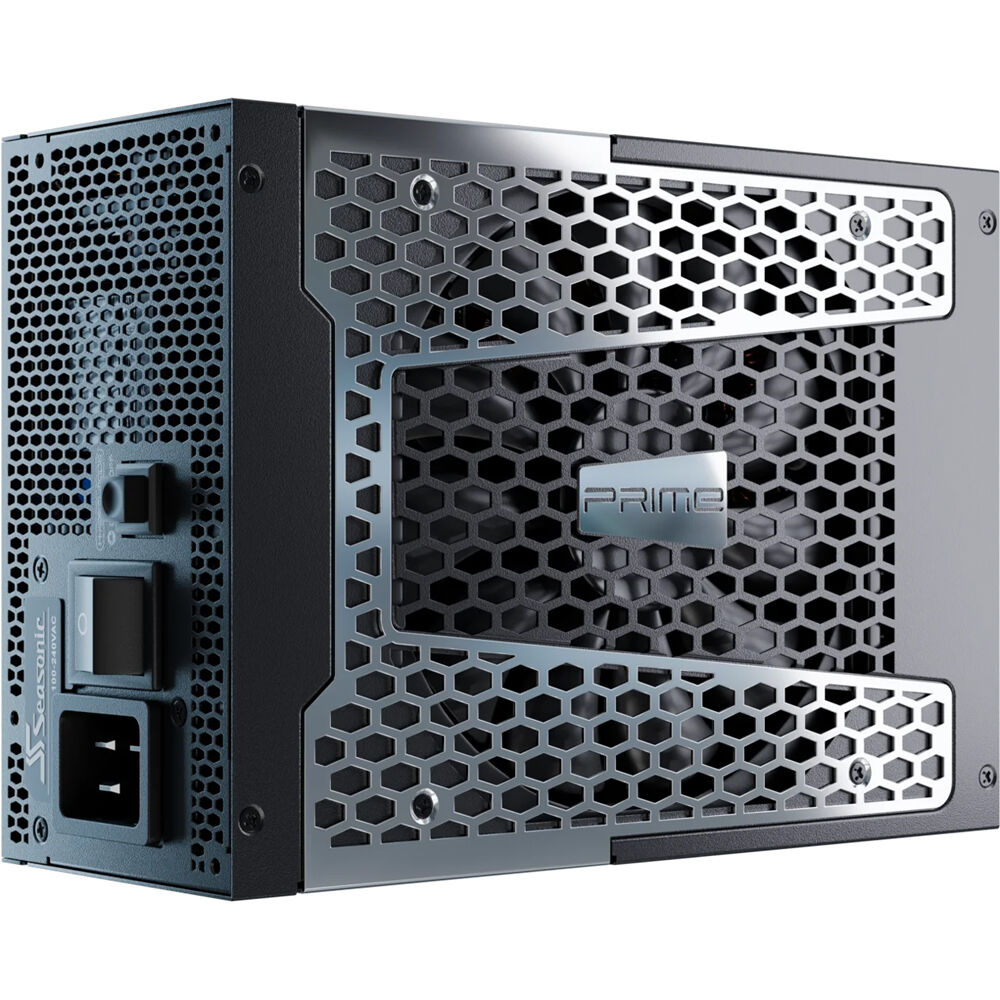

Designed for high-powered graphics cards and processors, the PRIME TX ATX 3.1 1600W 80 PLUS Titanium Modular Power Supply from SeaSonic features ATX 3.1 and PCIe 5.1 compatibility, with a total power output of 1600W.

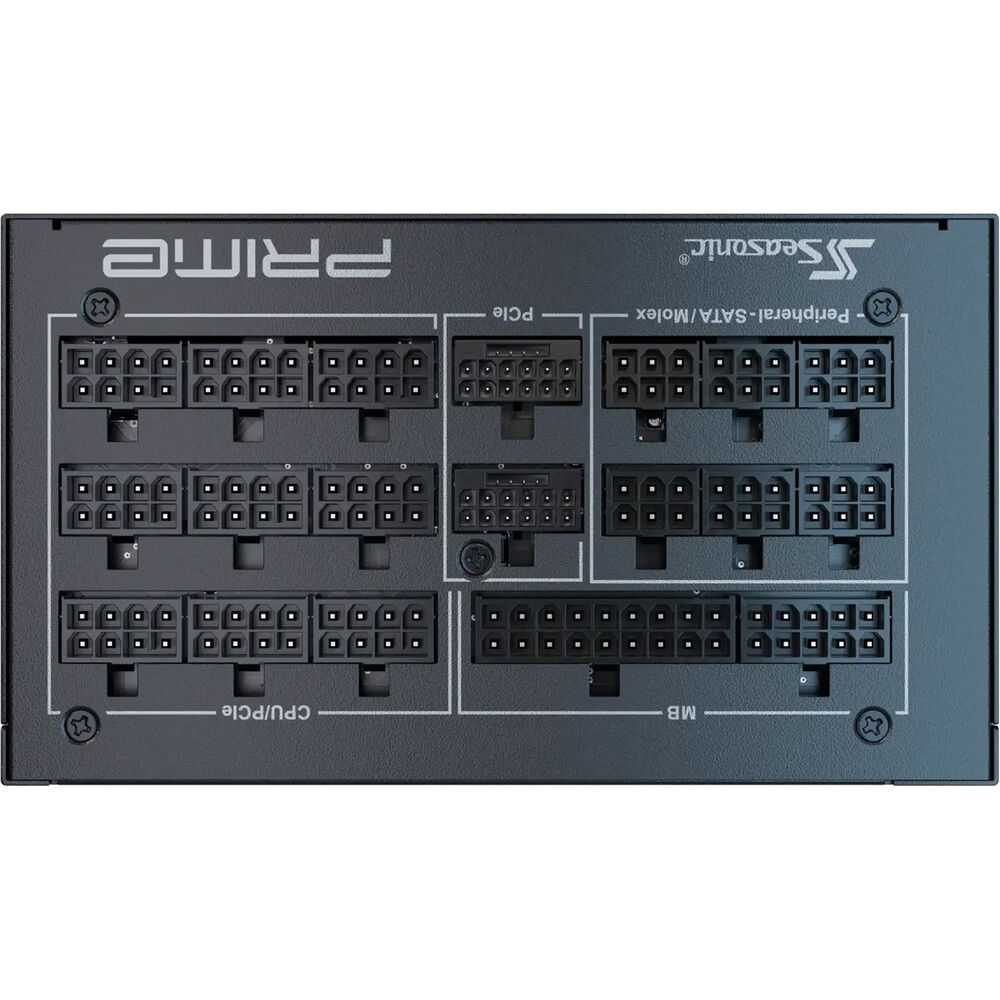

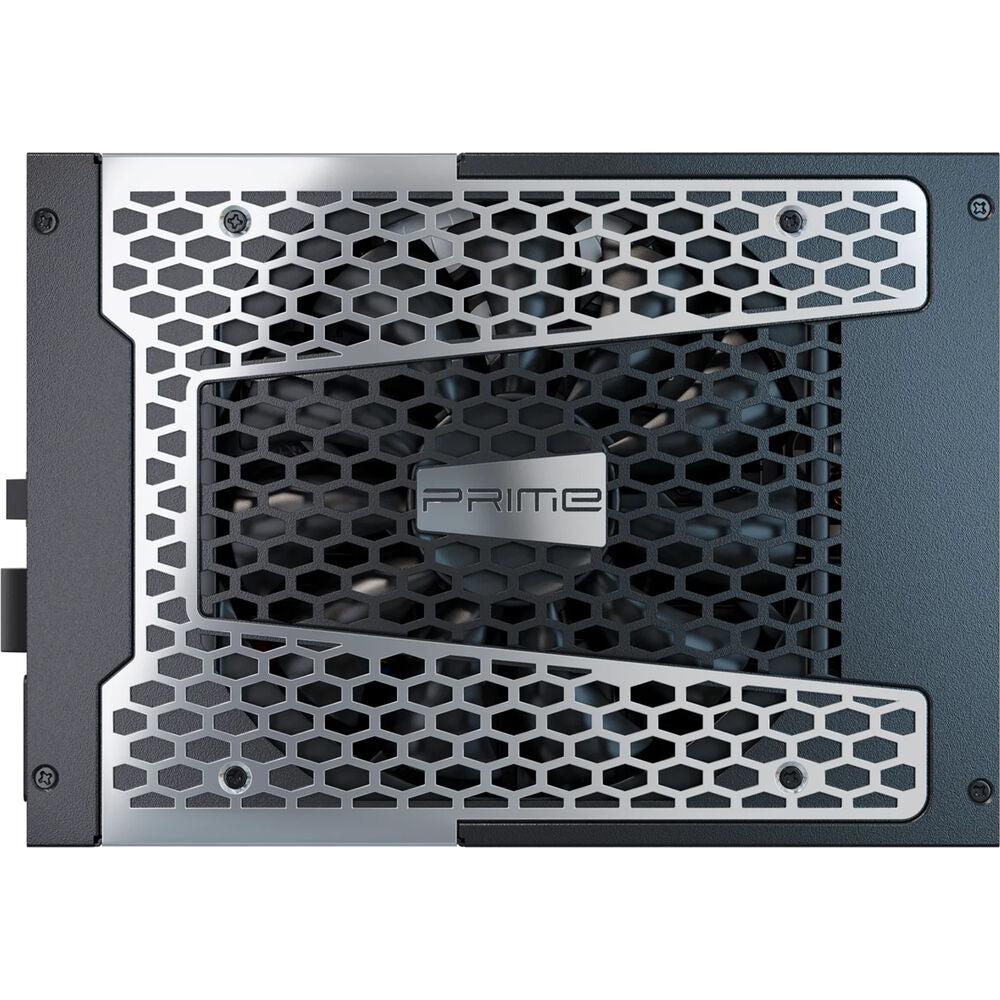

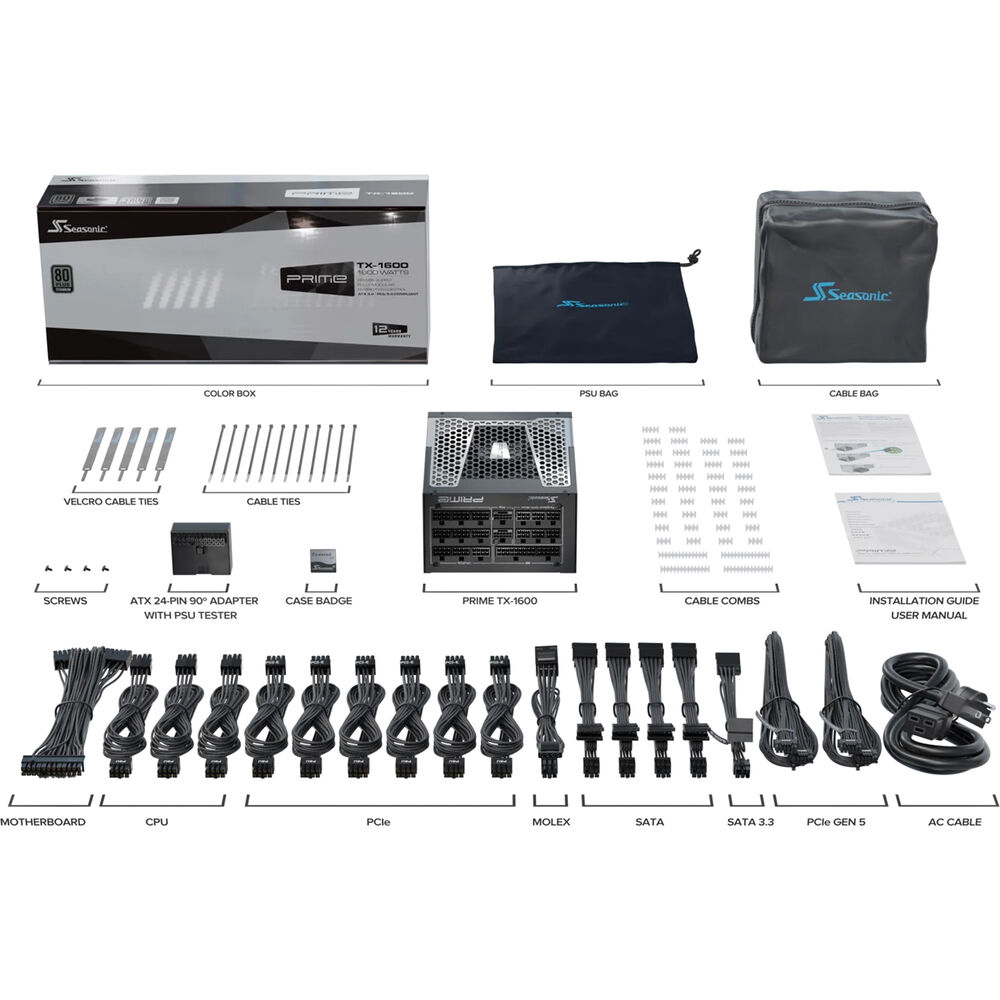

It is equipped with native 12VHPWR connectors, Digital Fan Control, and Japanese electrolytic capacitors that are rated up to 221°F for long-term durability. This power supply has one M/B connector, three EPS 12V / ATX 12V connectors, two 12V 2x6 connectors, six PCI-E connectors, 16 SATA connectors, two SATA 3.3 connectors, and three 4-Pin connectors. It stays cool using a 135mm fan with fluid dynamic bearings. Fully modular design let you to pick and choose the cables you need, allowing for better organization.
| Total Connectors | 1x 20+4-Pin ATX Motherboard 3x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 16x 15-Pin SATA 2x 6-Pin SATA / Peripheral 2x 12-Pin PCIe |
| Cable Design | Modular |
| Total Wattage | 1600 W |
| Number of +12 V Rails | 1 |
| Efficiency Rating | 80 PLUS Titanium |
| Form Factor | ATX |
| Total Connectors | 1x 20+4-Pin ATX Motherboard 3x 4+4-Pin EPS CPU 6x 6+2-Pin PCIe 16x 15-Pin SATA 2x 6-Pin SATA / Peripheral 2x 12-Pin PCIe |
| Cable Design | Modular |
| Total Wattage | 1600 W |
| Number of +12 V Rails | 1 |
| Combined Power for +12 V | 1600 W |
| Max Load for +12 V | 133.3 A |
| Combined Power for +3.3/+5 V | 125 W |
| Max Load for +3.3 V | 25 A |
| Max Load for +5 V | 25 A |
| Max Power for +5 Vsb | 15 W |
| Max Load for +5 Vsb | 3 A |
| Max Power for -12 V | 6 W |
| Max Load for -12 V | 0.5 A |
| Input Power | 100 to 240 VAC, 50 / 60 Hz |
| Efficiency Rating | 80 PLUS Titanium |
| Active Power Factor Correction | Yes |
| Fan Size | 135 mm |
| Bearing Type | Fluid Dynamic Bearings (FDB) |
| Form Factor | ATX |
| Compliance | ATX v3.1 |
| Protection | Over-Current Protection, Over-Power Protection, Over-Temperature Protection, Over-Voltage Protection, Short-Circuit Protection, Under-Voltage Protection |
| Certifications | BSMI, CB, CCC, CE, EAC, TUV, cTUVus |
| Operating Conditions | 32 to 122°F / 0 to 50°C |
| Mean Time Between Failures (MTBF) | 100,000 Hours |
| Dimensions | 8.3 x 5.9 x 3.4" / 210 x 150 x 86 mm |
| Package Weight | 13.07 lb |
| Box Dimensions (LxWxH) | 17.8 x 7.9 x 5.1" |
