Description

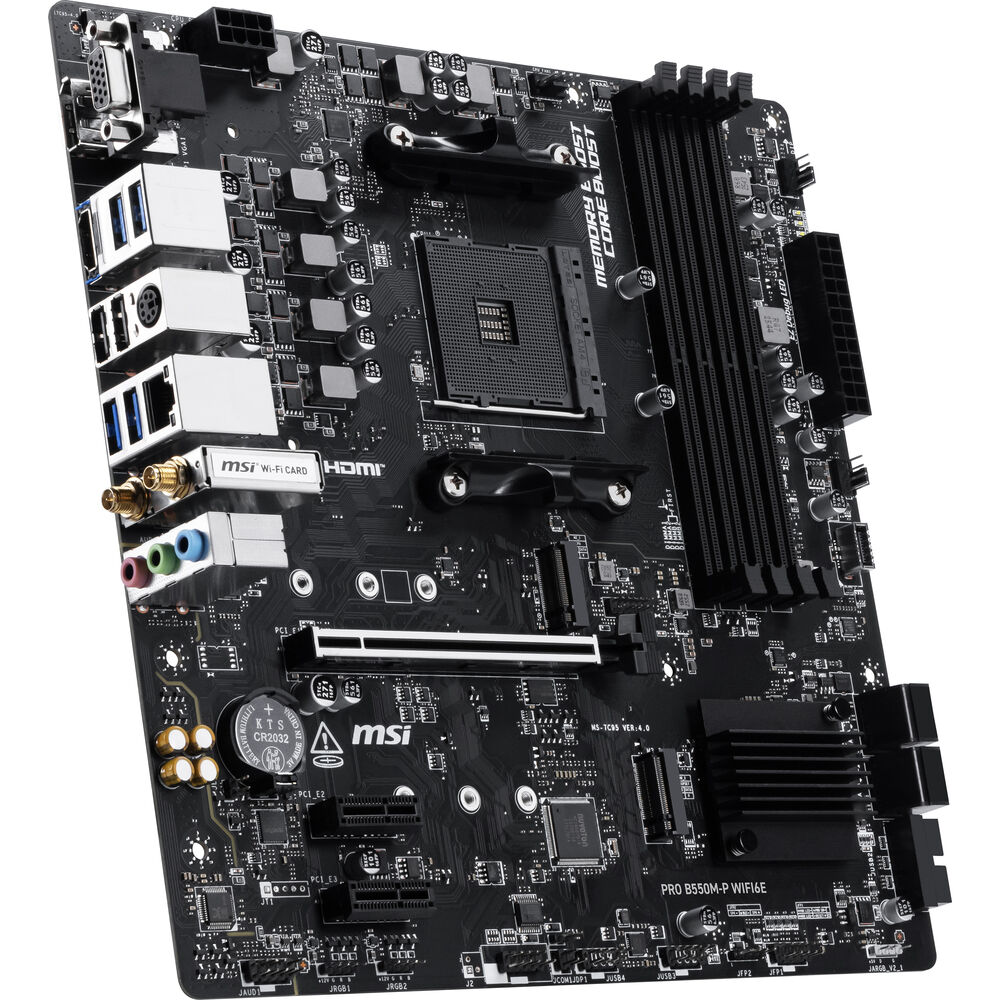

Power your workflow by including the MSI PRO B550M-P WIFI6E AM4 mATX Motherboard in your computer build. Supporting AMD 5000, 3000, and 4000 G series processors with the AM4 socket, this entry level mATX motherboard can be outfitted to smoothly handle a variety of applications.
Designed to help simplify builds, the PRO B550M-P WIFI6E makes it easy to install M.2 PCIe 4.0 and PCIe 3.0 SSDs to store your applications and important files. There are also four SATA III connectors available. The motherboard has four DDR4 DIMM slots that support up to 128GB, enabling it to reach up to 4400 MT/s overclocked speeds. With a PCIe 4.0 x16 slot and two PCIe 3.0 x1 slots, you can install powerful graphics cards and other compatible expansions.

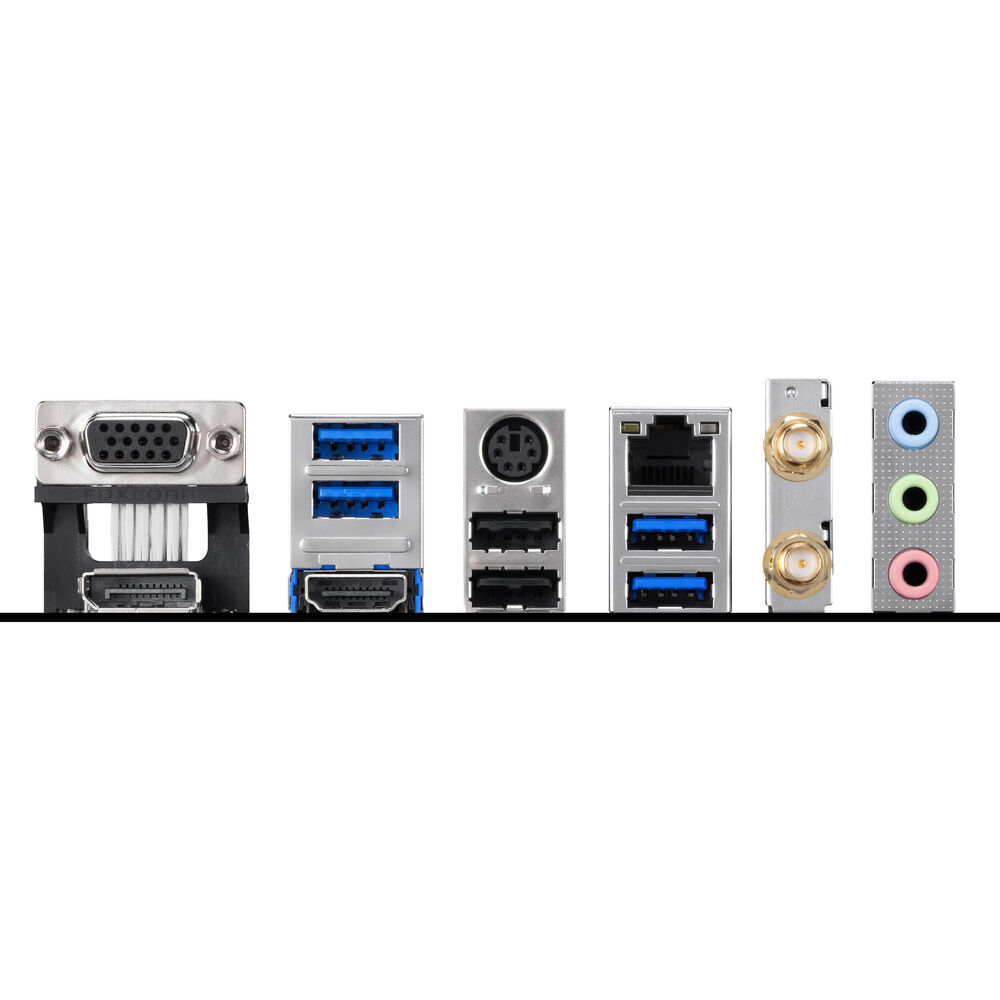

The rear panel features four USB-A 3.2 Gen 1 ports that can transfer up to 5 Gb/s with compatible devices. There are also two USB-A 2.0 ports available for peripherals such as a mouse and keyboard. Built-in Wi-Fi 6E (802.11ax) support and a Gigabit Ethernet port provide you with connections to compatible network devices for smooth video streaming and low-latency online games. Windows 10 or 11 64-bit is required to take advantage of all the motherboard's features.
| Chipset | AMD B550 |
| CPU Socket | AM4 |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR4 |
| M.2 Slots | 2280 |
| Expansion Slots | 1x PCIe 4.0 x16 2x PCIe 3.0 x1 |
| Wi-Fi | Wi-Fi 6E (802.11ax) |
| Form Factor | Micro-ATX |
| Chipset | AMD B550 |
| CPU Socket | AM4 |
| USB I/O | 4x USB-A (USB 3.0 / 3.1/3.2 Gen 1) 2x USB-A (USB 2.0) |
| Thunderbolt I/O | No |
| Display I/O | 1x HDMI Output 1x DisplayPort Output 1x VGA Output |
| Audio I/O | 3x 1/8" / 3.5 mm |
| Ethernet / Controller | 1x Gigabit |
| PS/2 | 1x Combo |
| Wi-Fi Antenna | 2x Connector |
| Memory Slots | 4x 288-Pin |
| Memory Type Support | DDR4 |
| Maximum Capacity | 128 GB |
| Channel Architecture | Dual Channel |
| ECC Support | Non-ECC Unbuffered |
| SATA | 4x SATA III |
| M.2 Slots | 1x M.2 (M Key) 2280/2260/2242 (PCIe 4.0 x4) 1x M.2 (M Key) 2280/2260/2242 (PCIe 3.0 x4) |
| Optane Memory Support | No |
| RAID Support | RAID 0, 1, 10 (SATA) RAID 0, 1 (M.2) |
| Expansion Slots | 1x PCIe 4.0 x16 2x PCIe 3.0 x1 |
| USB | 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 2 USB-A Port) 2x USB 2.0 Header (Supports 4 USB-A Port) 1x USB 3.0 / 3.1/3.2 Gen 1 Header (Supports 1 USB-C Port) |
| Air Cooling | 1x 4-Pin CPU 2x 4-Pin System |
| Power Connectors | 1x 24-Pin Mainboard 1x 12V-2X6 (12VHPWR) |
| Security | Chassis Intrusion |
| ROM | 256 Mb |
| Front Panel I/O | AAFP |
| Audio Codec | Realtek ALC897 (7.1-Channel) |
| DAC | No |
| Wi-Fi | Wi-Fi 6E (802.11ax): Tri-Band (2.4, 5, & 6 GHz) with MU-MIMO Support (2 x 2) |
| Bluetooth | Bluetooth 5.3 |
| OS Compatibility | Windows |
| Form Factor | Micro-ATX |
| Dimensions | 9.6 x 9.6" / 244 x 244 mm |
| Package Weight | 2.025 lb |
| Box Dimensions (LxWxH) | 11.9 x 10.8 x 2.2" |
